Qirod QD100 Series User Manual

42

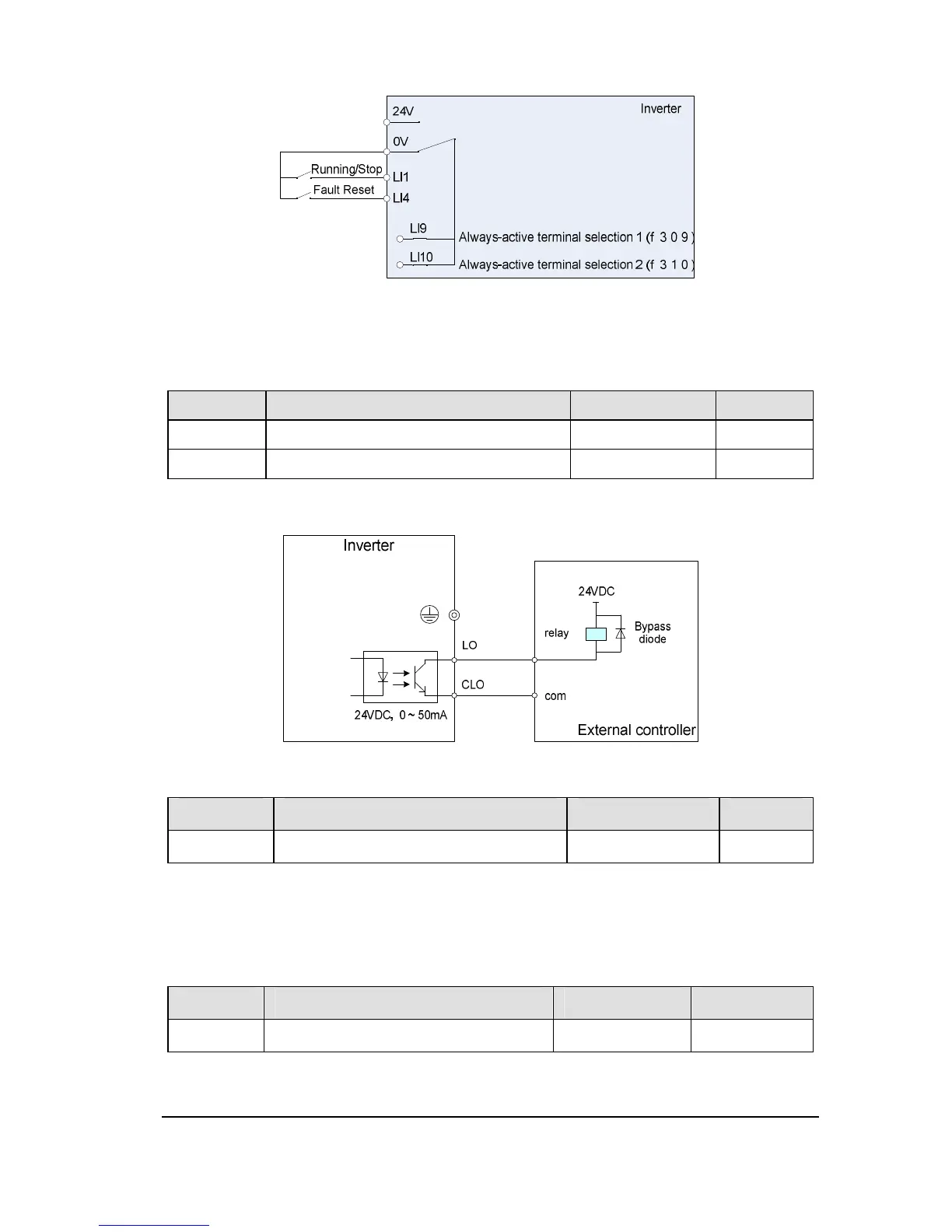

Figure 2.8 Always active terminal function
Note 1: Use f309 and f310 to assign input terminal function to LI9, LI10. LI9
and LI10 are virtual input contact terminal which are always activated. See Figure 2.8.
NO. Parameter Name Setting Range Default
f311 Output terminal function A of LO-CLO
0~255 4
f312 Output terminal function B of LO-CLO
0~255 255
The set method is same as f315.
Figure 2.9 Output of LO-CLO wiring example
NO. Parameter Name Setting Range Default
f313 AI1 terminal function selection 0 0
0: AI2 - analog input
1: AI2 - contact input (Sink)
2: AI2 - contact input (Source)
NO. Parameter Name Setting Range
Default
f314 Input terminal function of AI2 0~68 0
The set method is same as f301~f304.
