RADWIN2000CPlusUserManual Release3.5.70 11‐2
MultipleDistributedSiteswithCommunication Chapter11

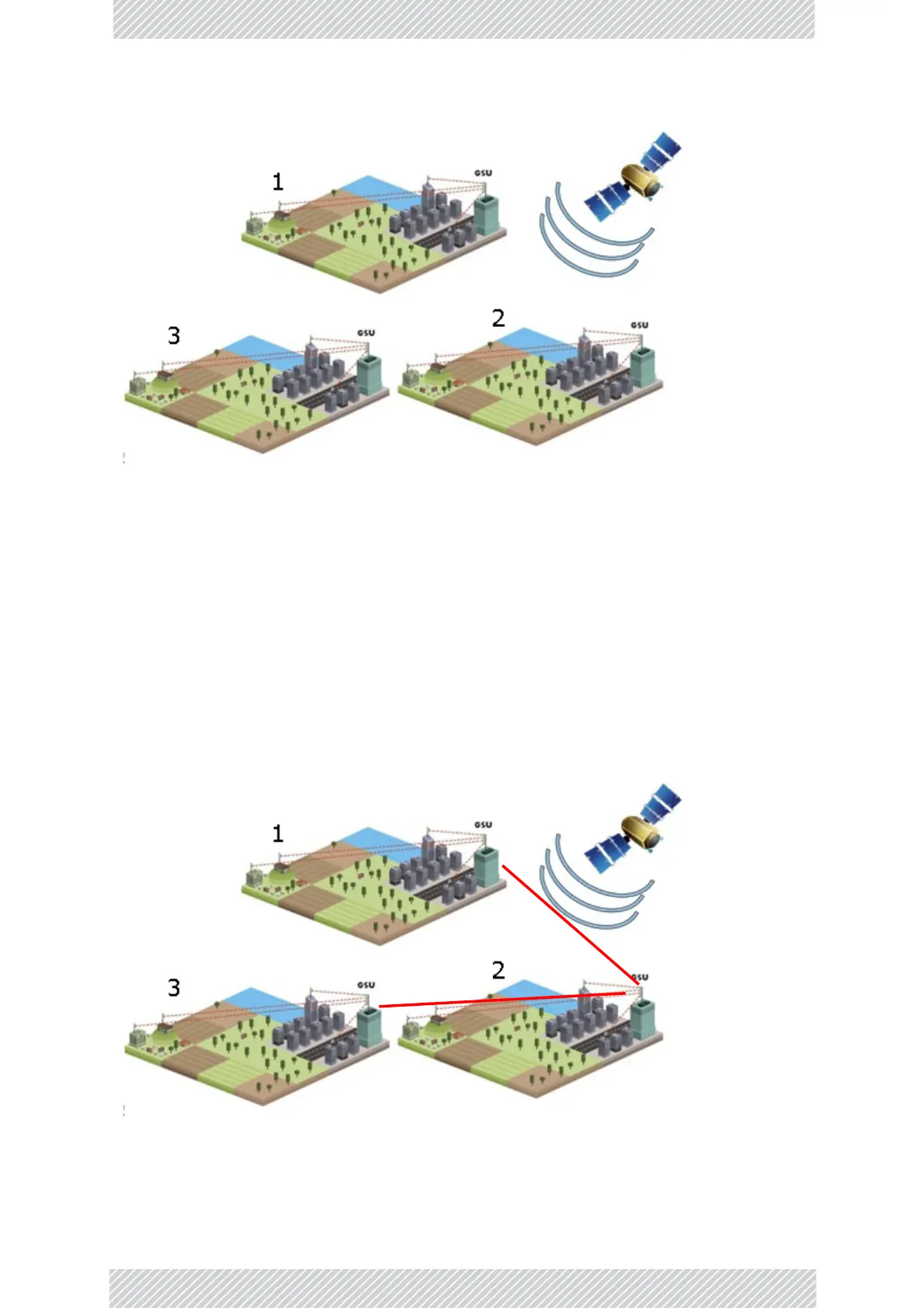

Figure11‐1:GSUScenario‐Independentdistributedsites
MultipleDistributedSiteswithCommunication
Whathappensif,inFigure 11‐1,theGSUtowersthemselveshaveradioscommunicatingas
showninFigure 11‐2?
ConsiderGSU1andGSU2:Bothcollocatedtowerstransmitandreceivesimultaneously.
However,theradioscommunicatingatGSU1andGSU2musttransmitandreceiveinturn
accordingtotheschemeinmarked“NormalPhase”inFigure 11‐3.Thisisanimpossible
situation,ifallthelinksmustsendandreceivetogether.Itisfurthercomplicatedbyaddinga
thirdandfurthersitesasshown.
Figure11‐2:GSUScenario‐Communicatingdistributedsites
