Radwin 2000 C PLUS User Manual

RADWIN2000CPlusUserManual Release3.5.70 13‐5
ConfigurationofVLANTaggingforEthernetService Chapter13
• TheoutertaghastobetheProvider’stag(sotheframeisnotfiltered)
• TheinternaltaghastobemanagementVLANID
Toavoidmix‐ups,bestpracticeisto:
• Separatethemanagementanddataports
• DefineonlyadataportwithProviderfunction
ConfigurationofVLANTaggingforEthernetService
 TosetupanHSUforVLANtagging:

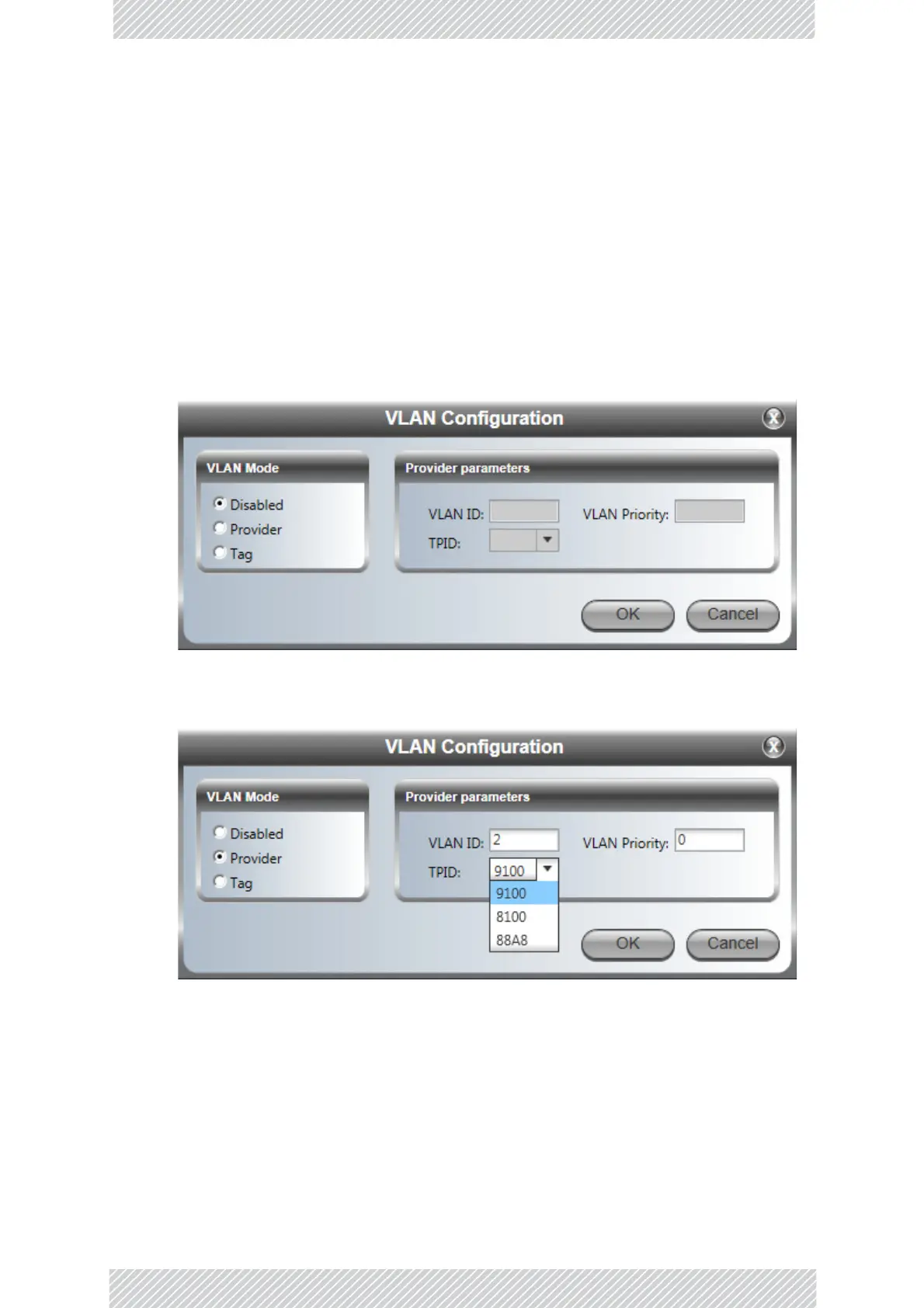

1.OpenServicesConfigurationandthenclicktheVLANConfigurationbutton.
InDisabledmode,Ethernetframespasstransparentlyovertheradiolinks.
2.ForProvidertagging,clicktheProviderRadiobutton:
InProvidermode,Ethernetframesaretaggedwiththeprovider’sVLANIDbefore
theyenterintotheprovider’snetwork/backbone.

Radwin 2000 C PLUS Specifications

General

Brand	Radwin
Model	2000 C PLUS
Category	Radio
Language	English
