To manually operate site channels:
1
In the Device Status window of the Manual Operations sheet, click on the the
channel you want.
The OMSC window displays the currently executing steps of the channel.
2
Click the Start button on the left side of the OMSC window.
The Start Stations dialog box for the channel you selected appears.

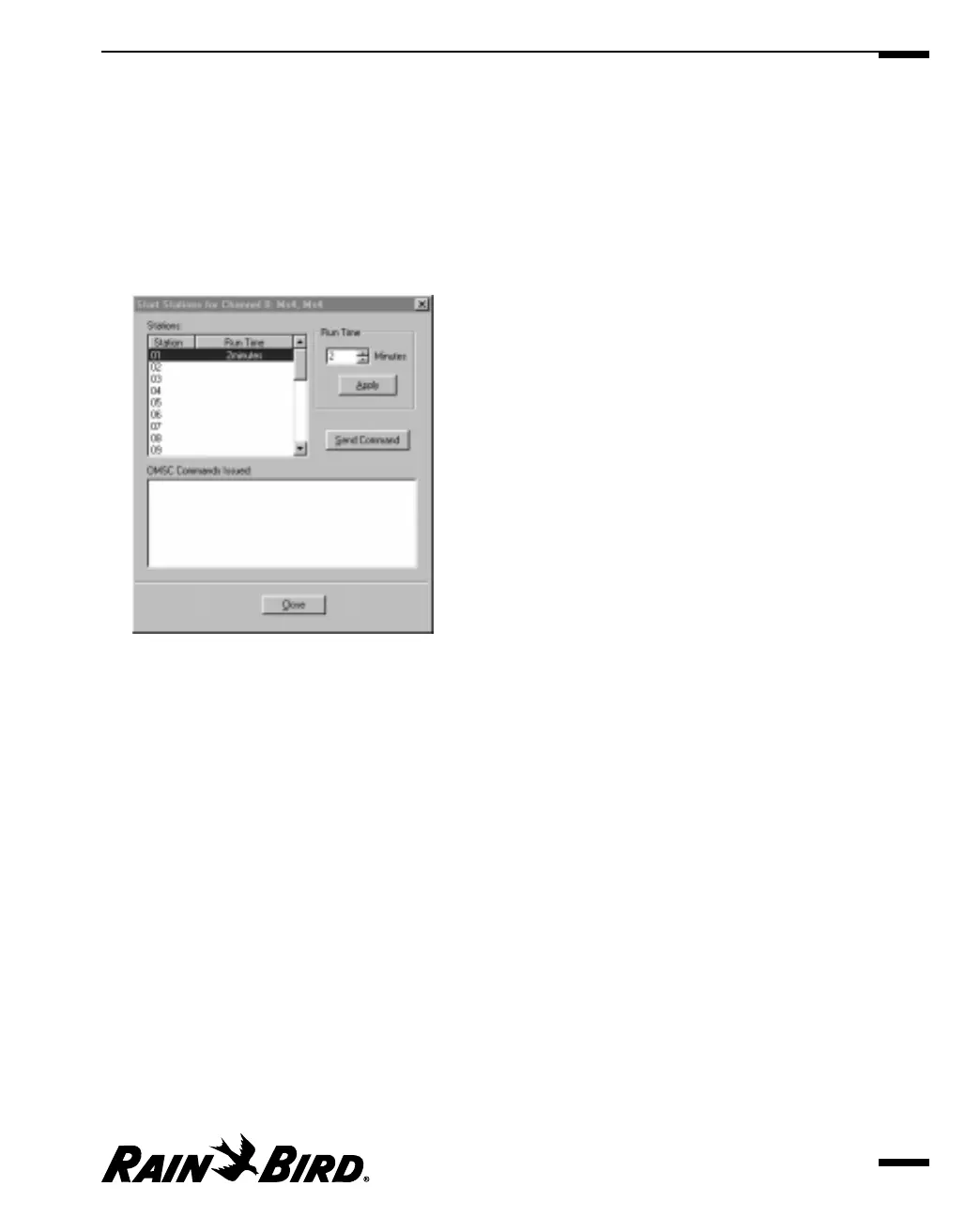

Start Stations Dialog Box
3
The Run Time window allows you to adjust the time by either entering the
number of minutes or using the scroll buttons to enter a number without
typing.
4
With the station you want to affect selected, click the Apply button to apply
the runtime you entered for the station.
5
Click the Send Command button to instruct the CCU to turn the station on
immediately for the runtime you entered.
The stations you selected run for the amount of time you specified.
6
Click the Close button to exit the Start Stations dialog box and return to the
Manual Operations sheet.
7
When you are finished manually operating the site, click the Close button to
close the Manual Operations for Site dialog box and select Disconnect from
the Site Window toolbar to disconnect from the site.
Viewing and Editing Site Data
7.27
