Rain Bird Maxicom2 User Manual

Setting Communications Properties
The Communications sheet lists all communications configured for use with
Maxicom
2
. Each has a Port Name assigned by the system. The Device Name is the
name you give the port to make it easy for you to remember. The Type is the kind
of port, for instance, direct hardwire or radio. If the port is a telephone port, it also
has a Modem designation.
To set system communications properties:
1 With the System Properties Setup dialog box open, select the
Communications tab.
The Communications sheet comes to the front of the stack.

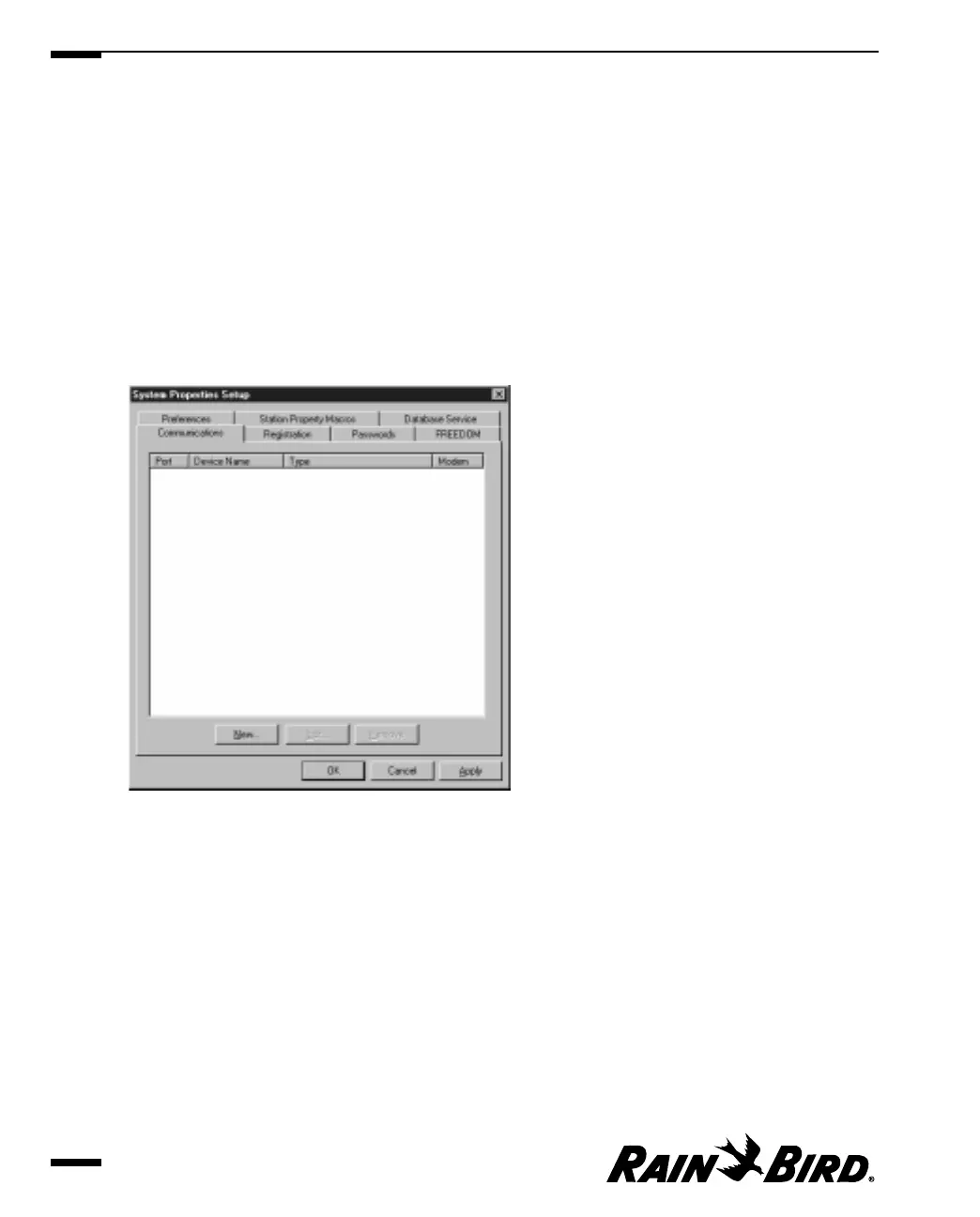

Communications Sheet
2 If the port you want to set properties for is already listed, double-click the port
name. Or, if it is not listed, click the Add button.
The Edit Communications Port Properties dialog box is displayed.
Setting System Properties
3.4

Rain Bird Maxicom2 Specifications

General

Brand	Rain Bird
Model	Maxicom2
Category	Control Systems
Language	English
