Rapid 2005 - Figure 4: 2000-Series Interior

SECTION 1: AIR HANDLER SAFETY
5 of 147

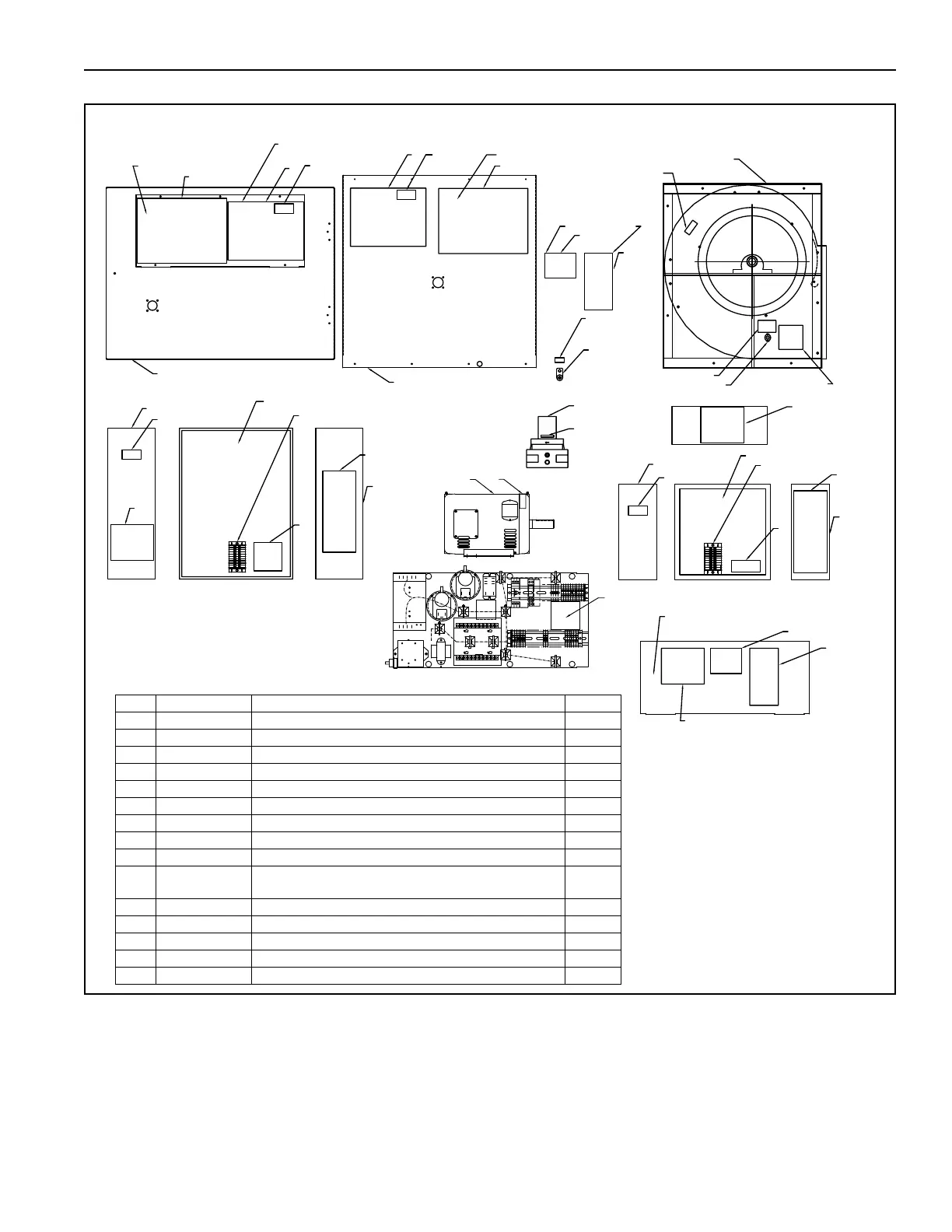

FIGURE 4: 2000-Series Interior
5
GROUND
LUG ON
BURNER
END RS
PANEL
NOTE:-LABEL 3, 4, AND 10 MUST BE ORIENTATED
SO THAT IT CAN BE READ FROM TOP-LEFT
TO BOTTOM-RIGHT WHEN THE AIR HANDLER
IS INSTALLED AT THE JOB SITE.
-LABEL 15 IS USED ANY TIME THERE IS A
GFI OUTLET THAT
IS POWERED BY OTHERS. TO BE POSITIONED
NEXT TO LABEL 8 AND/OR 14.
8 or 14
2005 MOUNT
ON ENCL FLOOR
UNDER VFD/AUX
MOTOR STARTER
15
8 AND/OR 14
2010-2030 SPLASH PLATE MOUNTED
ON CONTROL ENCLOSURE BOTTOM PANEL
2005 CONTROL ENCLOSURE FLOOR UNDER
VFD/AUX MOTOR STARTER
15
16
1 OR 2
SAFETY
SHUTOFF
VALVE
IGNITION
TRANSFORMER
TRANSFORMER
40VA
AMPLIFIER
AIRFLOW
SWITCH
0.32IN W.C.
R6
AIRFLOW
SWITCH
1.40IN W.C.
10
7
9
SPLASH PLATE MOUNTED
ON CONTROL ENCLOSURE
DOOR
CONTROL ENCLOSURE DOOR
11 or 12
13 PLACE INSIDE ITEM #9
2010-2030
7
9
2005 CONTROL ENCLOSURE DOOR
13 PLACE INSIDE ITEM #9
11 or 12
NAMEPLATE
3MOTOR
4
3
BLOWER
HIGH TEMP LIMIT SWITCH
DISCHARGE SENSOR
6
REMOTE BOX
RIGHT SIDE
TERMINAL RAIL
REMOTE BOX 10X10 INTERNAL
10
11
REMOTE BOX
LEFT SIDE
16
10
TERMINAL RAIL
REMOTE BOX 12x16 INTERNAL
6
REMOTE BOX
RIGHT SIDE
11 or 12
REMOTE BOX
LEFT SIDE
16
Item Part Number Description Qty.
1 19024 Label - Propane Gas 1
2 19025 Label - Natural Gas 1
3 19162 Label - Rotation 1
4 19161 Label - High Temperature Limit 1
5 19100 Label - Ground 1
6 91070009 Label - Electric Shock Hazard (Mini) 1
7 91010444 Label - 2000-Series Rating Plate 1
8 91010443 Label - 2000-Series Exhaust Fan Motor Control 1
9 90911300 9½" x 13" Clear Pouch 1
10 91010445
Label - 2000-Series Wire Connection Control Panel/
Remote Panel
2
11 91010446 Label - ETL Certification Without Recirculation Z83.4 2
12 91010447 Label - ETL Certification With Recirculation Z83.18 2
13 80XXX Wiring Diagram - Varies by Order 2
14 91040128 Label - Auxiliary Motor Starter 1
15 91010448 Label - Shock Hazard GFI 1
