6.1.3 Lifting an Upright Air Handler (2005 - 2030)
All air handlers are shipped in the horizontal position.
Prior to lifting an upright air handler, the following
steps must be performed (See Page 18, Figure 10):
Step 1: The air handler must be lifted using the two
lifting lugs on the top of the discharge end and the
two lifting lugs on the inlet end, using a spreader bar
across the long axis. Lift the air handler off the skid
and place it on a flat, clean, dry surface.
Step 2: Remove the lifting lugs on the inlet end of the
air handler and re-install hardware.
Step 3: Use all four lifting lugs on the discharge end
of the air handler to enable the air handler to be lifted
into the upright position.
Step 4: Lift the air handler into upright position.
Step 5: Next, refer to the applicable portions of Page
22, Section 8 for specific mounting instructions.

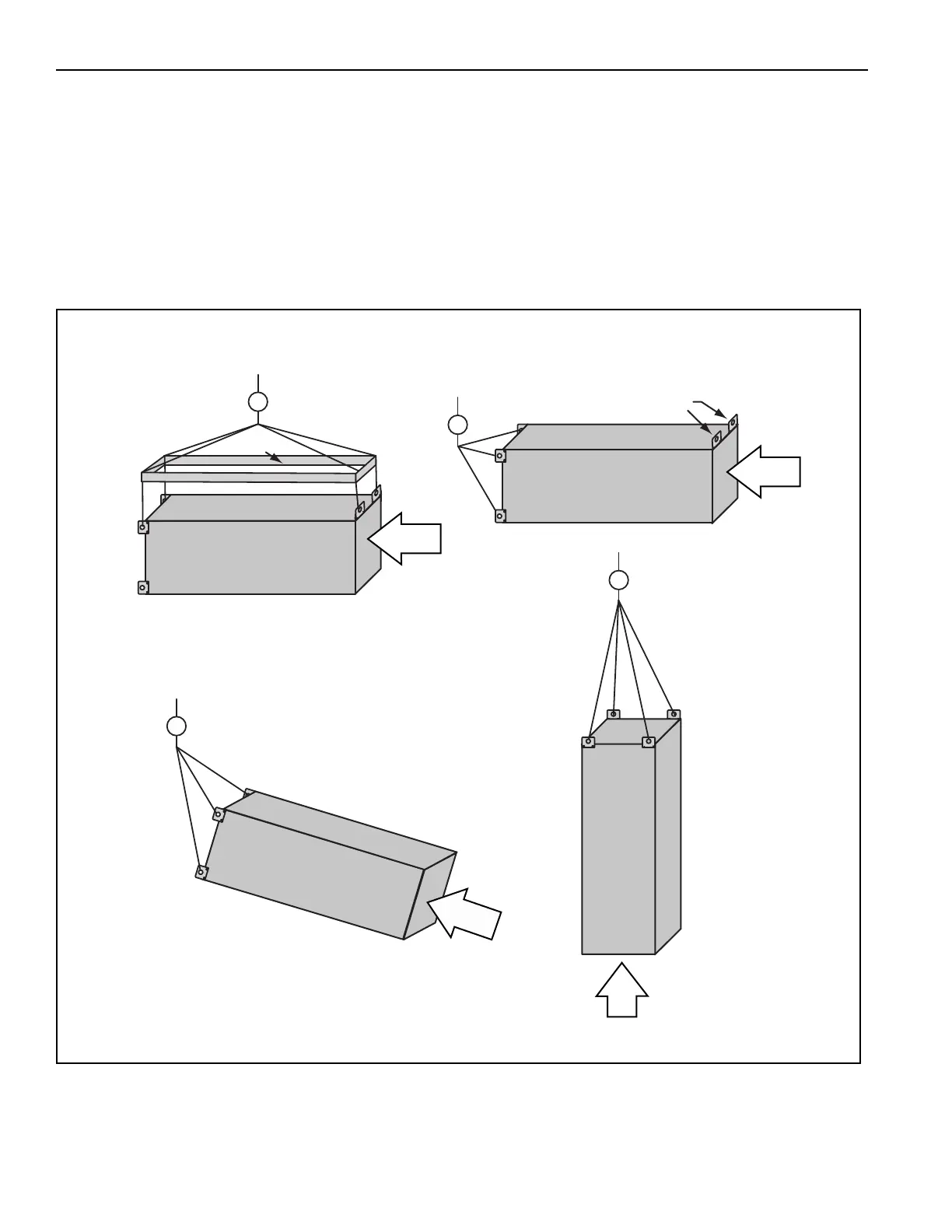

FIGURE 10: Lifting an Upright Air Handler (2005 - 2030)
Step 1
Remove These
Lifting Lugs
Step 2
Step 3
Step 4
Spreader Bar
INLET
INLET
INLET
INLET
