SECTION 14: DISCHARGE HEADS AND SPLASH PLATES
Part numbers that end with a “[W]” indicate that the part can be ordered with either an unpainted galvanized
finish or an acrylic modified alkyd enamel finish. To order with a galvanized finish, do not include the "W" at
the end of the part number; to order with a painted finish, include the "W" at the end of the part number.
14.1 One-Way and Three-Way Discharge Head
Installation
All discharge heads are shipped assembled. The
discharge head is designed for mounting to the face
of the air handler (covering the discharge opening) or
to an interior wall. All discharge heads must be field
supported (by others). The discharge head has four
outward-turned flanges. If the discharge head is to
be installed to the face of the air handler, install
hardware (provided by others) on all four sides of the
discharge head.
To install the discharge head on an interior wall, drill
holes every 8" (20.5 cm) in the flanges on all four
sides of the discharge heads to accommodate lag
bolts (supplied by others). Sheet metal (supplied by
others) may be required. See Page 69, Figure 29 for
the three-way discharge head available for Models
2005 - 2030.

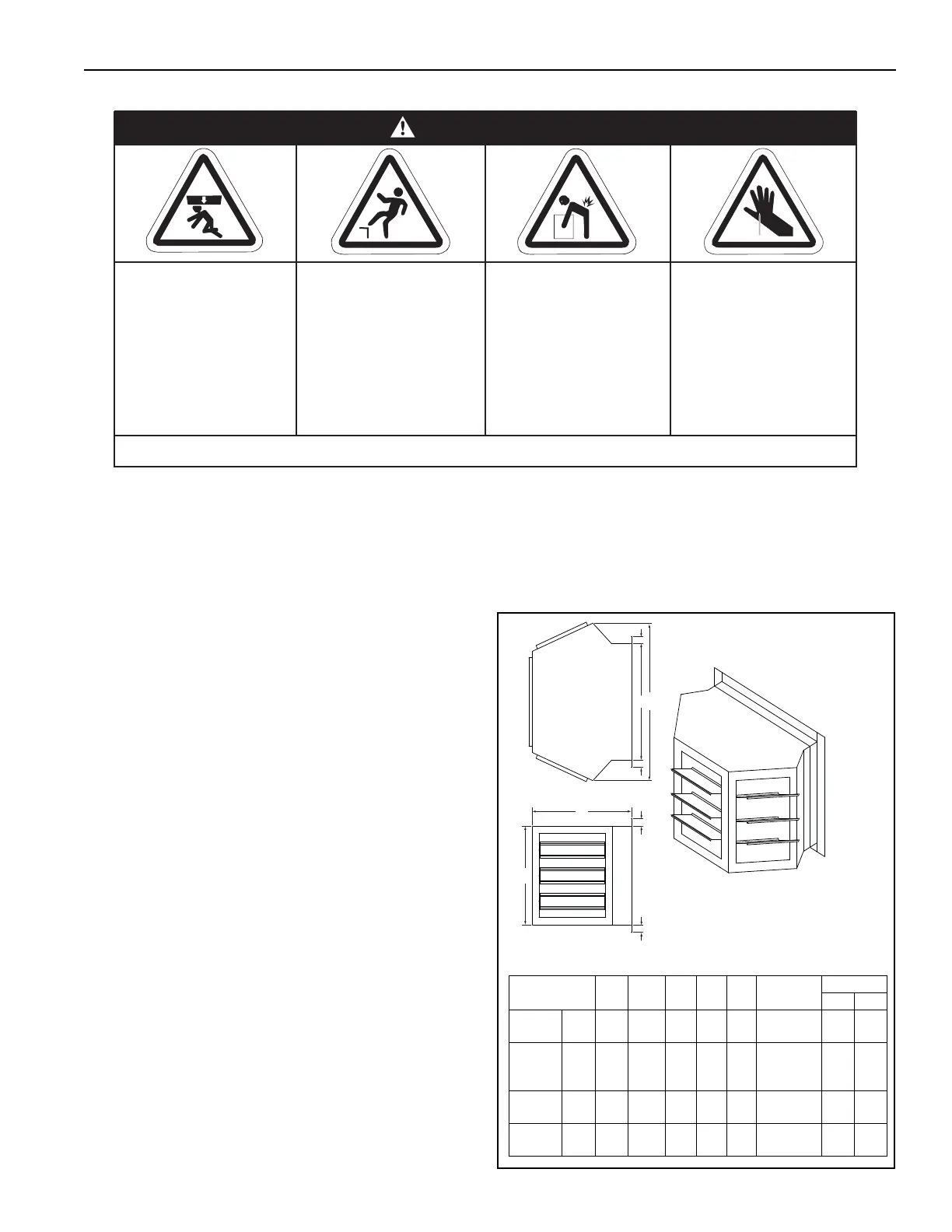

FIGURE 29: Three-Way Discharge Head
(2005 - 2030)
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
SIDE VIEW
TOP VIEW
B
A
E
E
D
C
E
E
Model A B C D E
Part
Number
Weight
lbs kg
2005
(in)
(cm)
19.0
48.3
40.8
103.5
23.8
60.3
21.0
53.3
2.0
5.1
77349.301 50 22.7
2010
and
2010B
(in)
(cm)
22.4
56.9
40.8
103.5
24.0
61.0
19.4
49.3
2.0
5.1
77049.301 80 36.3
2020
(in)
(cm)
31.9
81.0
43.3
109.9
21.5
54.6
33.9
86.1
2.0
5.1
77249.201 120 54.4
2030
(in)
(cm)
36.9
93.7
48.3
122.6
22.5
57.2
36.9
93.7
2.0
5.1
77549.201 160 72.6
