SECTION 11: FILTER SECTION
29 of 147
SECTION 11: FILTER SECTION
The 2005 filter section is shipped assembled. The 2010 - 2030 filter sections are shipped unassembled and
must be assembled prior to installation.
Part numbers that end with a “[W]” indicate that the part can be ordered with either an unpainted galvanized
finish or an acrylic modified alkyd enamel finish. To order with a galvanized finish, do not include the "W" at
the end of the part number; to order with a painted finish, include the "W" at the end of the part number. If the
filter section support is necessary, it may be installed prior to attaching the filter section to the air handler.
See Page 41, Section 11.4.
NOTE: Check to be sure that all required components are present. If any are missing, contact your RAPID
®
independent distributor.

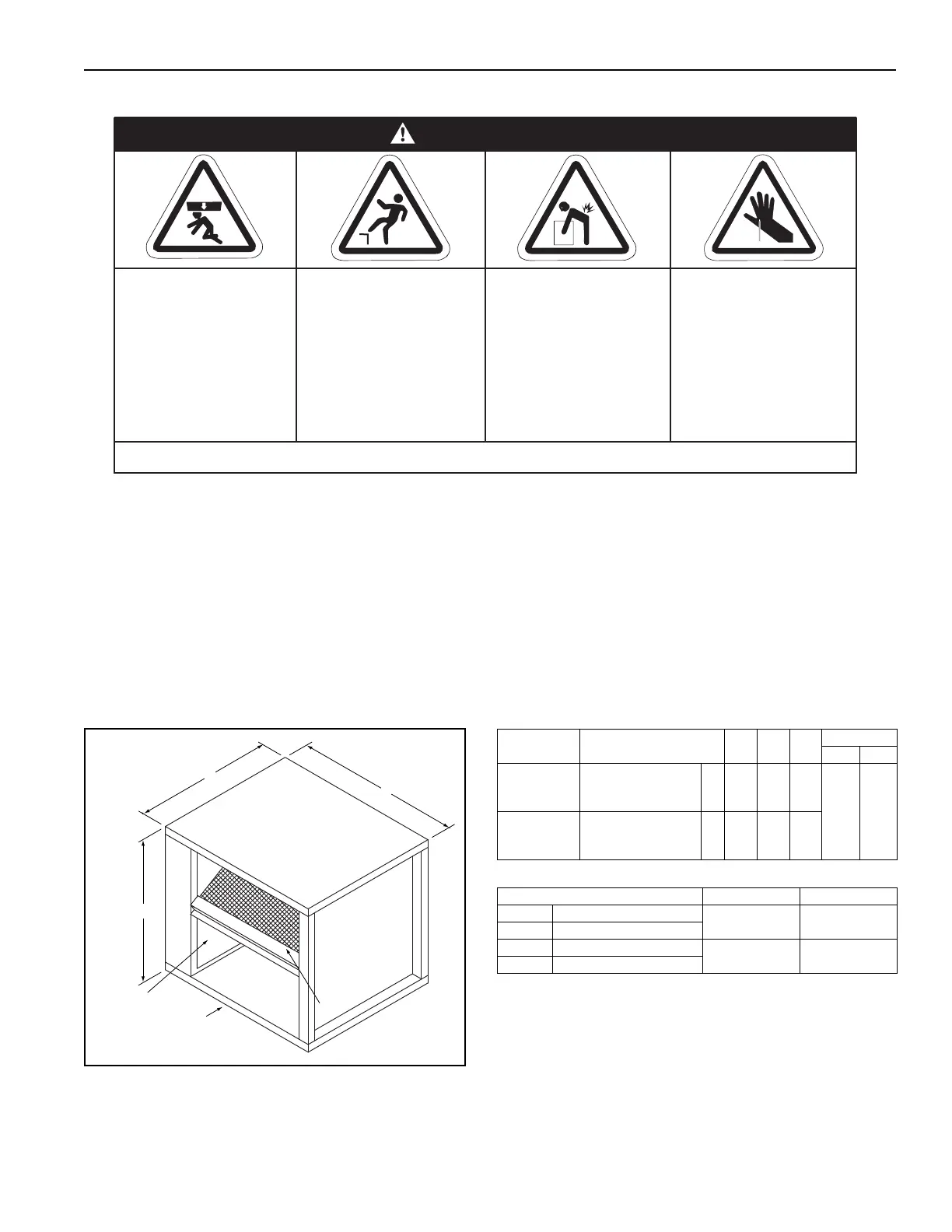

11.1 Filter Section (2005)
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
B
C
A
Filter access through
side access door.
Filter
Inlet
Part Number Description A B C
Weights
lbs kg
77082.301[W]
Filter section with
permanent alumi-
num mesh filters
in 28.3 27.0 32.3
100 45.4
77083.301[W]
Filter section with
disposable polyes-
ter filters
cm 71.9 68.6 82.1
Filter Size Quantity Part Number
in 20 x 25 x 2
2 22628
cm 50.8 x 63.5 x 5.1
in 20 x 50 x 1
1 23628
cm 50.8 x 127 x 2.5
