Rapid 2005 - SECTION 7: ROOF CURB; 7.2 Air Handler Mounting to Roof Curb

B-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
20 of 147

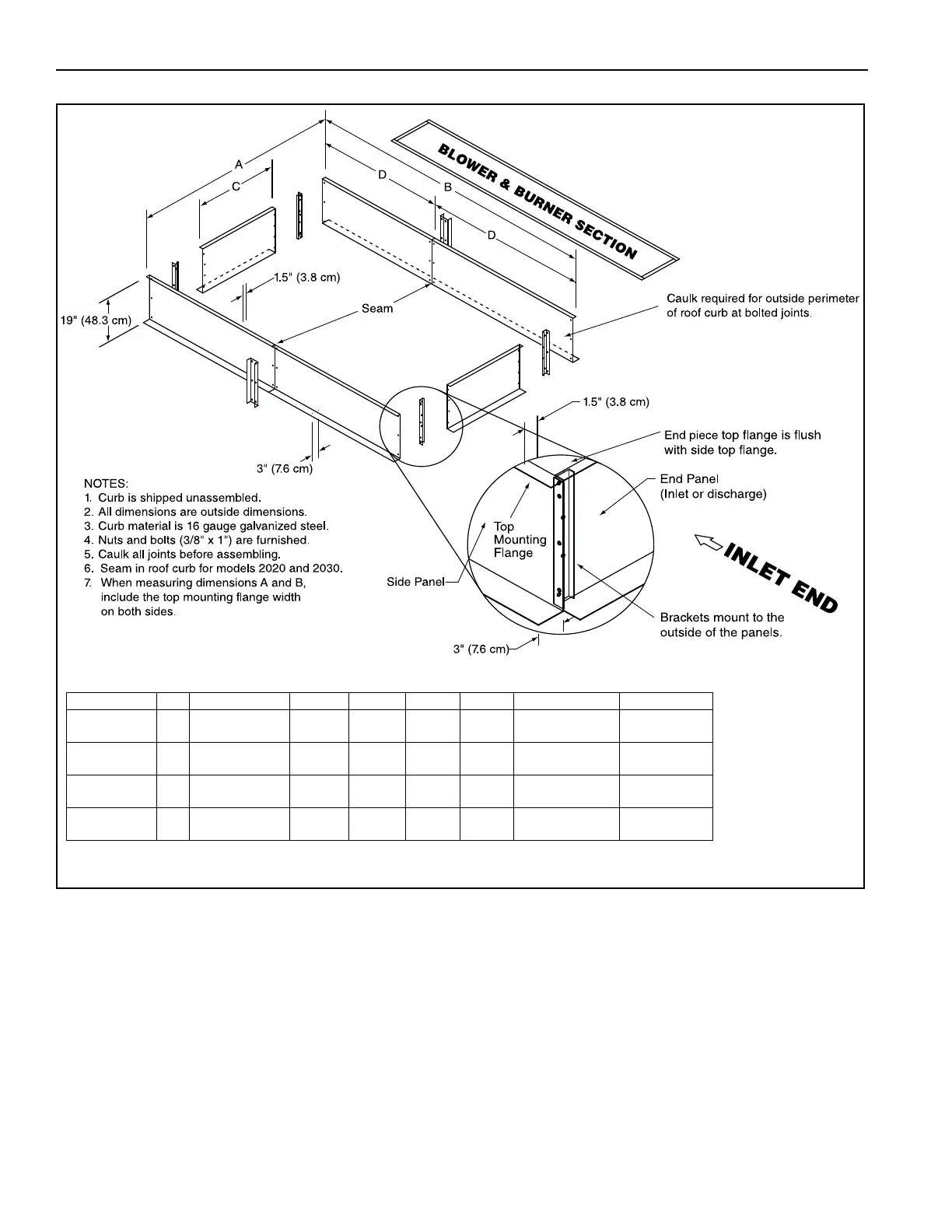

FIGURE 11: Roof Curb Assembly
7.2 Air Handler Mounting to Roof Curb
After the curb has been installed, the air handler may be placed on the curb. See Page 21, Figure 12. After
the air handler is in place, the installer must fasten the air handler to the curb. This is accomplished by drilling
holes down through the floor of the air handler and into the curb. At least three #12 sheet metal screws
(supplied by others) equally spaced on each side must be used to attach the air handler to the curb. After the
curb has been installed, the air handler may be placed on the curb. There must be a 1/8" (.3 cm) x 2" (5.1
cm) neoprene closed cell, adhesive-back gasket (supplied by others) between the top of the curb and the
base surface of the air handler to prevent moisture from leaking into the building from either driving rains or
melting snow.
The installer is responsible for tying the air handler to the curb per all applicable codes.
Model Part Number A B C D Weight (lbs) Weight (kg)
2005
(in)
(cm)
77351.201
27.0
68.6
57.5
146.1
23.8
60.5
-75 34
2010 and
2010B
(in)
(cm)
77050.301
42.0
106.7
88.0
223.5
38.8
98.6
-110 49.9
2020
(in)
(cm)
77250.301
53.0
134.6
113. 0
287.0
49.8
126.5
56.5
143.5
150 68.0
2030
(in)
(cm)
77532
65.0
165.1
113. 0
287.0
61.8
157.0
56.5
143.5
160 72.6
