SECTION 12: INLET HOOD
Inlet hoods are shipped unassembled and must be assembled prior to installation. The inlet hood may be
installed either onto the inlet of the air handler or to an outside wall. After installing an inlet hood, all hardware
must be torqued according to recommended specifications on Page 9, Table 1. In addition, all seams must
be caulked (provided by others).
Part numbers ending with a "[W]" indicate that the part can be ordered with either an unpainted galvanized
finish or an acrylic modified alkyd enamel finish. To order with a galvanized finish, do not include a "W" at the
end of the part number; to order with a painted finish, include a "W" at the end of the part number.
NOTE: Check to be sure that all required components are present. If any are missing, contact your RAPID
®
independent distributor.
12.1 Inlet Hood Assembly (2005)

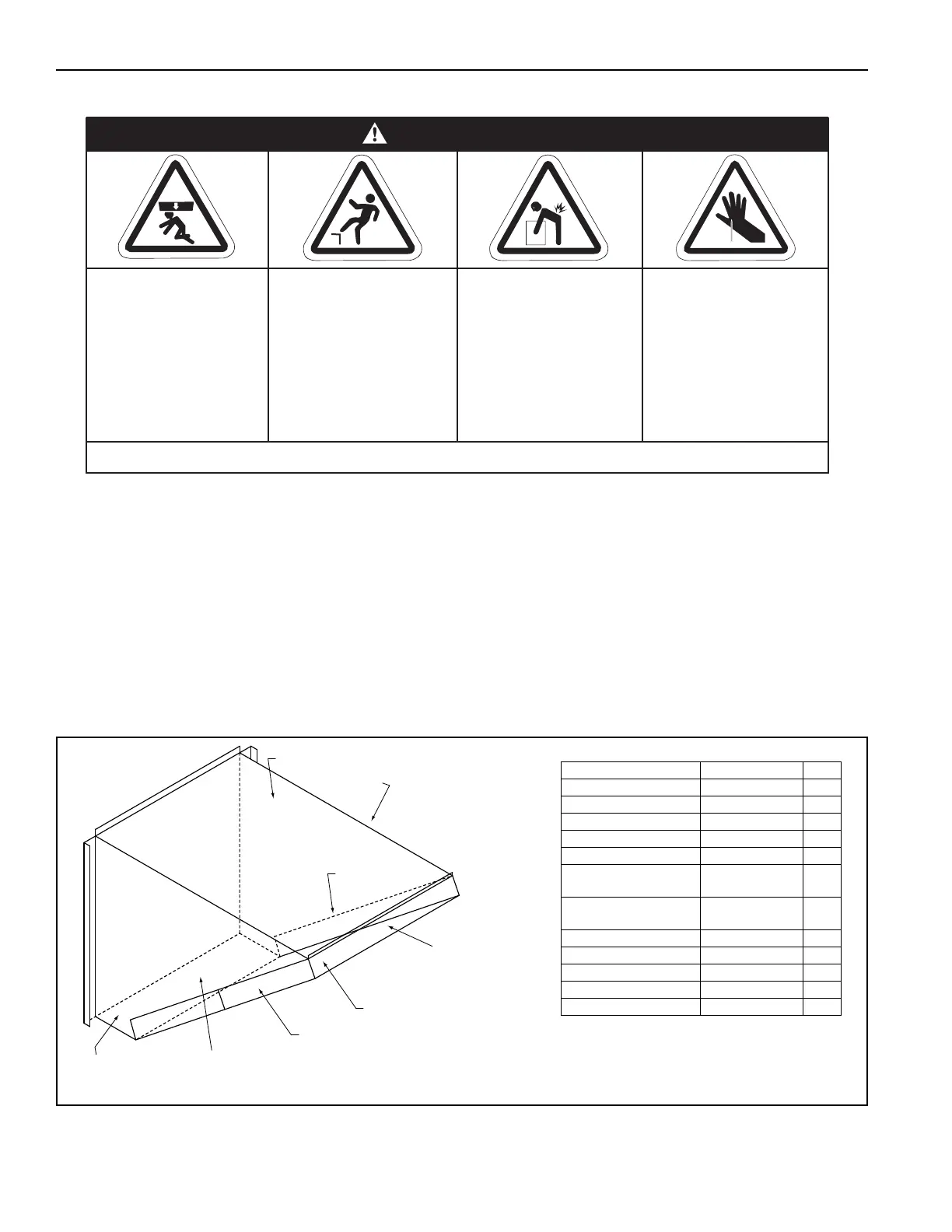

FIGURE 24: Inlet Hood Assembly (2005)
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
Filters load from topside,
remove the filter cap
to access the filters.
Filter Cap
Filter Rail
Filter Rail
Top Panel
Left Panel
Right Panel
Bottom Panel
Description Part Number Qty.
2005 Inlet Hood 77030.301[W]
Top Panel 73031.002[W] 1
Filter Cap 73032.002[W] 1
Left Panel 73033.001[W] 1
Right Panel 73033.002[W] 1
Permanent Filters
20" x 25" x 2"
22628 2
10-24 x 3/4" Hex-Head,
Cap-Screw Bolt
21699 18
10-24 Keps Nut 20698 18
TEK Screw 13404 8
Filter Channel 73035.002 2
Bottom Guide 73036.002 1
Bottom Panel 73034.002[W] 1
Note: Inlet hood is also available with screen mesh, no filters (P/N 13405059).
