SECTION 10: INDOOR SUSPENSION MOUNTING - HORIZONTAL AIR HANDLER
27 of 147

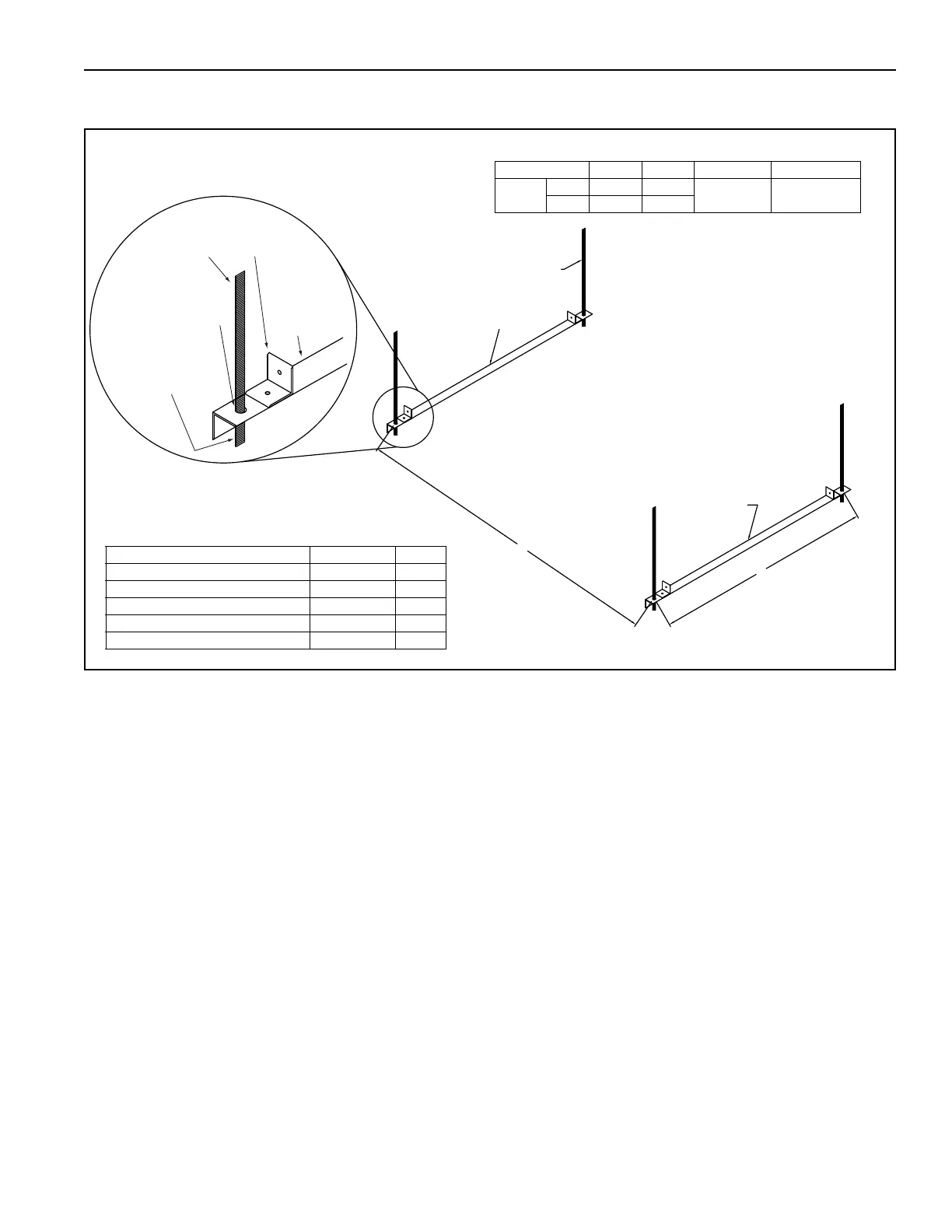

FIGURE 20: Indoor Suspension (2005)
Suspension
Support
Suspension End
1/2 X 13 Threaded Rod and
Nuts Supplied by Others
A
B
Suspension End
Single 1/2" Hex Nut
on Top Side of Angle
(to secure unit in position)
Suspension
Angle Clip
Double 1/2" Hex Nuts on
Bottom Side of Angle
(for height adjustment)
5/8" Ø for 1/2"
Threaded Rod
1/4" Bolt Clip
to angle and to unit sideskin/floor
Description Part Number Qty.
2005 Suspension Kit 77045.301
Suspension Angle Assembly 77045.201 2
¼-20x1 Bolt 20813 4
¼-20 Nut 20630 4
¼ Washer 20503 4
NOTE: Flush angle to end of unit.
Model A B Weight (lbs) Weight (kg)
2005
in 59.0 36.5
13 5.9
cm 73.0 84.1
