SECTION 14: DISCHARGE HEADS AND SPLASH PLATES
71 of 147

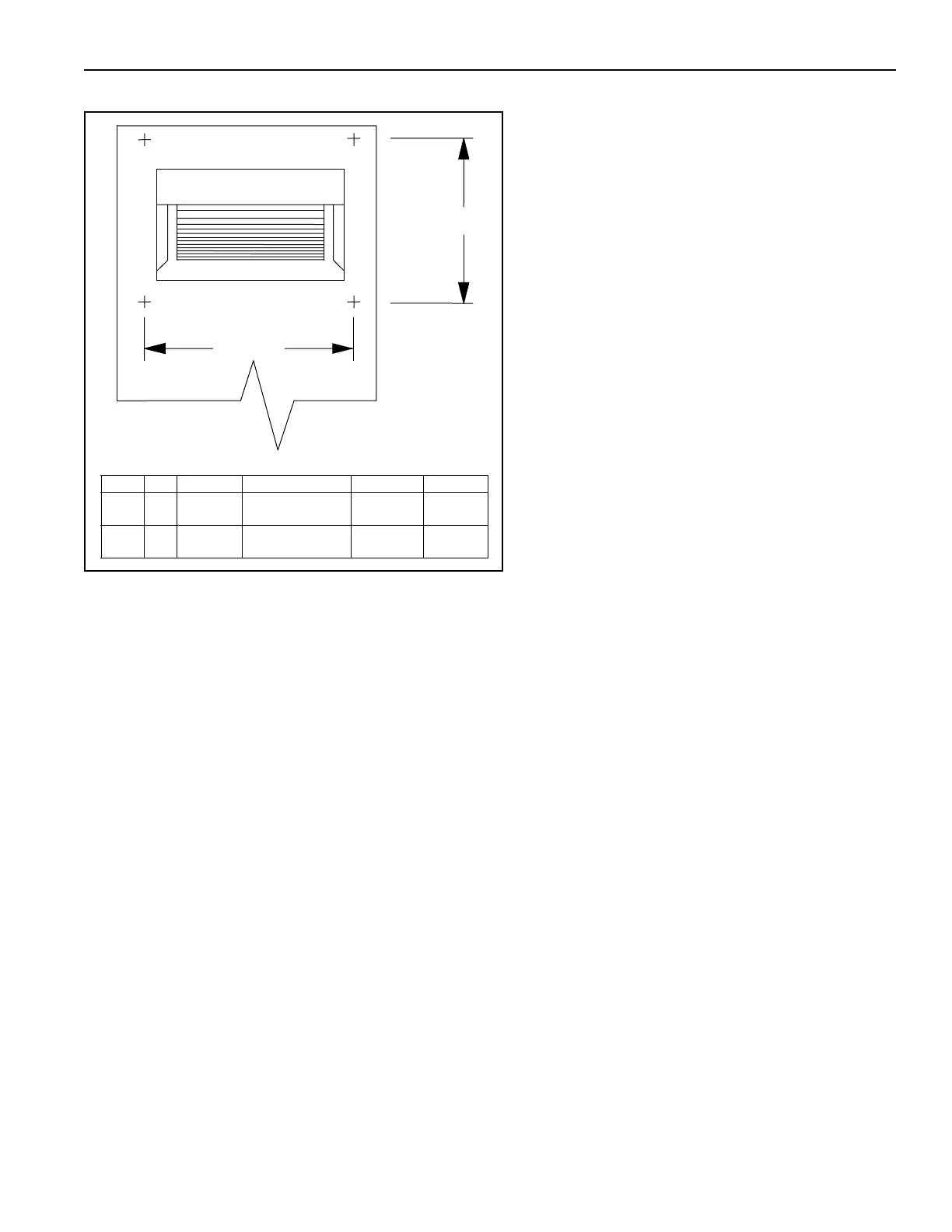

FIGURE 31: Hole Location (2005 - 2030)
A
B
Model 2005 2010 and 2010B 2020 2030
A
(in)
(cm)
19.5
49.5
41.5
105.4
51.3
130.2
51.25
130.2
B
(in)
(cm)
22.5
57.2
41.5
105.4
51.3
130.2
51.25
130.2
