Rapid 2005 - Figure 15: Stand Shim (2010 B - 2030); Figure 16: Upright Stand Mounting Detail

SECTION 8: UPRIGHT S TAND
23 of 147

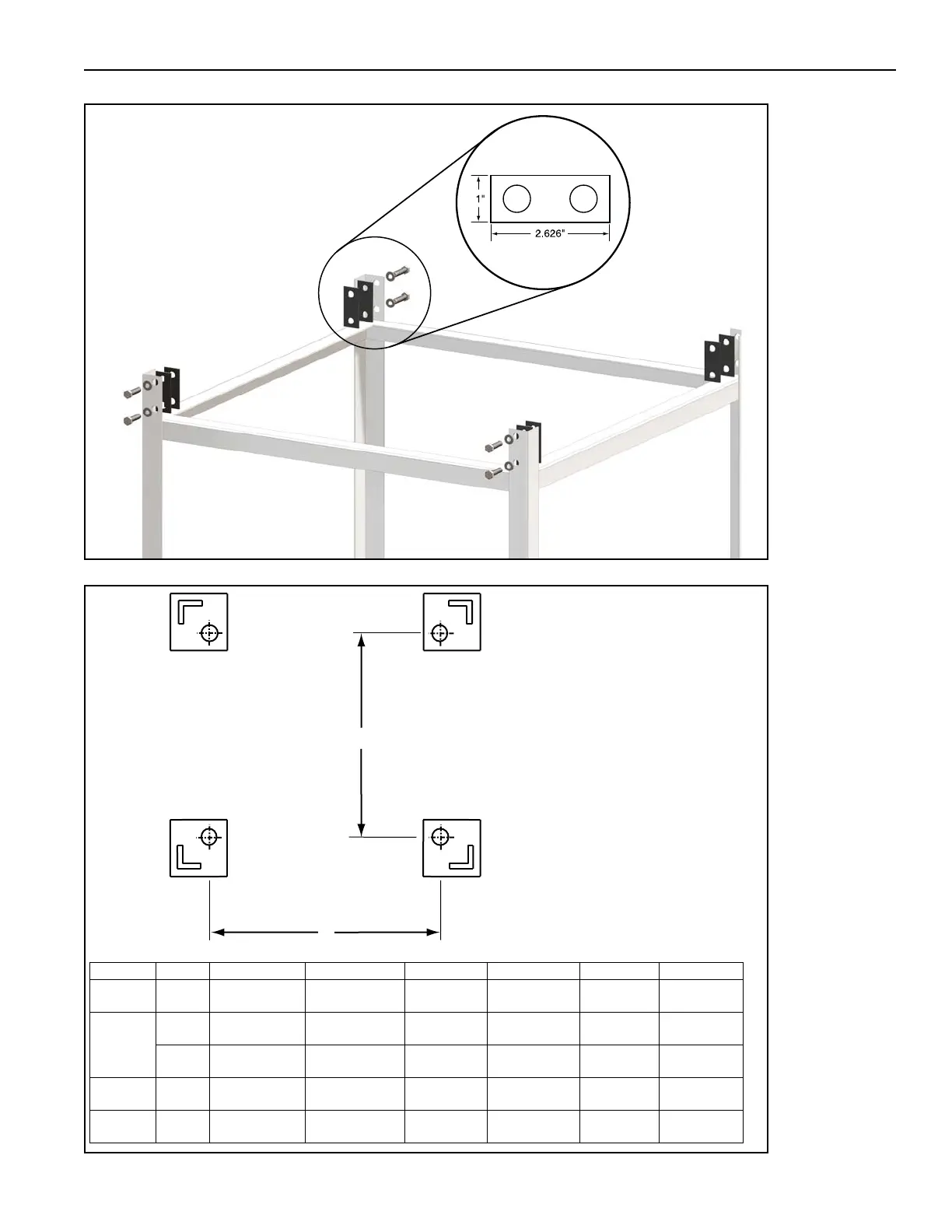

FIGURE 15: Stand Shim (2010B - 2030)
FIGURE 16: Upright Stand Mounting Detail
NOTE: Quantity 8 required
per stand.
A
Air Handler
Non-Control Enclosure Side
Air Handler
Control Enclosure Side
B
Model Part Number Height A B Weight (lbs) Weight (kg)
2005
(in)
(cm)
94000.3
30.0
76.2
27.1
68.9
22.8
57.8
75.0 34.0
2010 and
2010B
(in)
(cm)
91000.2
53.0
134.6
27.8
70.5
39.3
99.7
160.0 72.6
(in)
(cm)
94000.7
72.0
182.9
27.8
70.5
39.3
99.7
190.0 86.2
2020
(in)
(cm)
92000.3
72.0
182.9
51.1
129.8
51.5
130.8
230.0 104.3
2030
(in)
(cm)
93000.3
72.0
182.9
63.5
161.3
55.8
141.6
300.0 136.1
