The
V8010
has one
Datavia
the same 6 pin connector which
can provide data for up to 3 external navigation equipments connected in
parallel. So, be sure that all devices connected to this data output port
(autopilots, plotters, video sounders, radars) are programmed to use
NMEA 0183 data format.
When sending the NMEA 0183 Data Output from the
V8010,
the normal
data available includes the DBT (Depth) and MTW (water temperature)
sentences. When the optional Raystar 100 GPS sensor, Seatalk, or an other
extemalnavaidisinputto the video sounder,GLL,APA,APB,VTG,BWC,
RMA, RMB, or RMC sentences are available at the Data Output port.

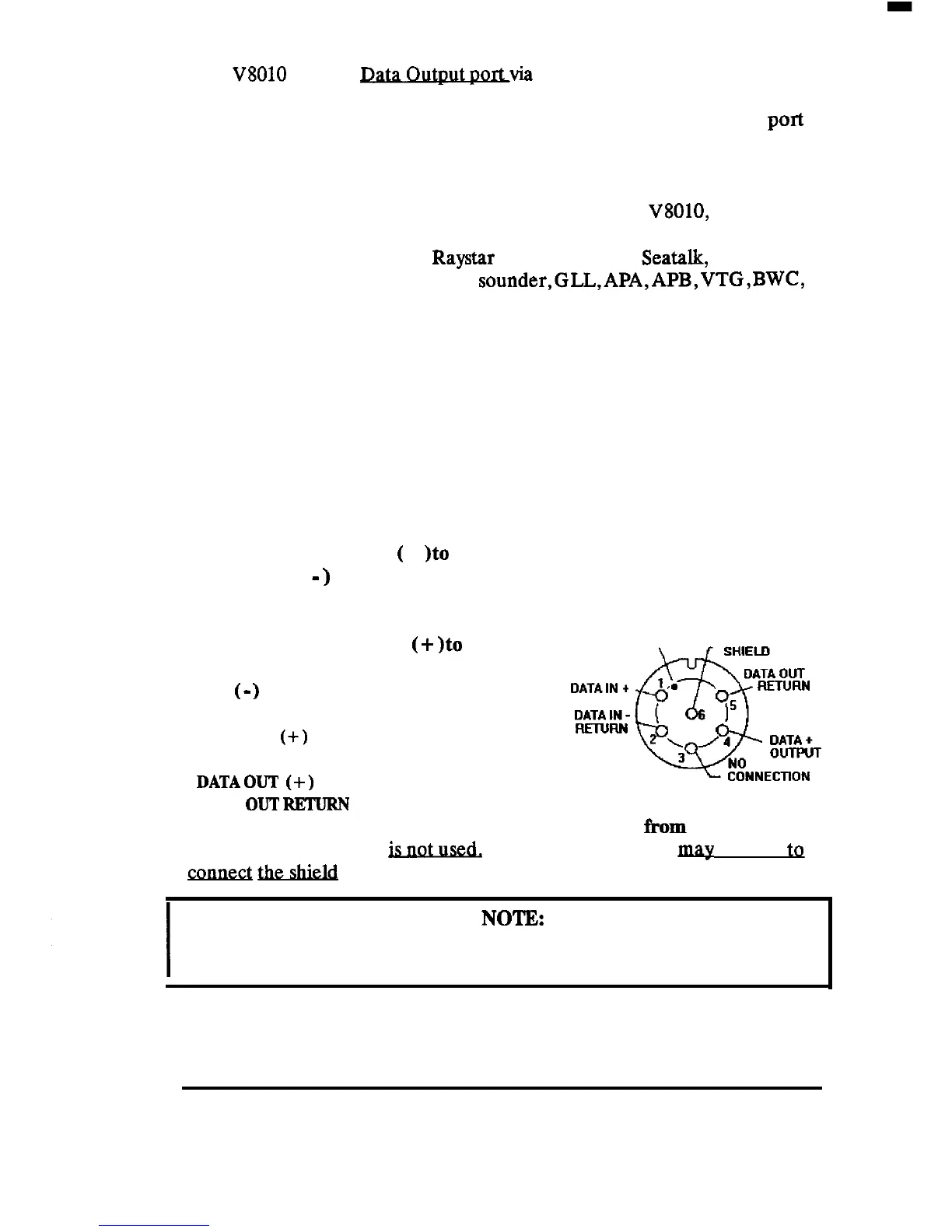

2.42.1 Making Data Connections
A 6 pin watertight connector is supplied with the spare parts materials for
making the Data Input/output connections. The general instructions for
assembling this 6 pin connector can be found in section 2.422 of this
chapter. If planning to use both input and output ports it is recommended
that a cable containing two (2) pair of shielded twisted conductors be used
for the interface cable.
Connect the Input Data
(
+
)to
pin 1 of the connector. Connect the Input
Data Return (
-
)
to pin 2 of the connector. Pin 1 is marked by the raised
dot on the housing.
Connect the Output Data
(+
)to
pin 4 of
LOCATING DOT
DATA OUT
the connector. Connect the Output Data
Return
(
-
)
to pin 5 of the connector.
DATA IN
(+)
= PIN 1
DATA IN RETURN
= PIN 2
DATAOUT
(+)
= PIN 4
DATA
OUT
RETURN
= PIN 5
Viewed
fkom
solder side
Pin 3 of the connector
is
Pin 6 of the connector map be used
to
cotme&
&&i&l
of the data output pair of wires.
NOTE:
Do NOT GROUND the Data Output or Data Out Return lines at any of
the external navigation equipments.
INSTALLATION 16
