reasonable access from inside the vessel, since you must allow for the height
of the stem projecting inside the hull and still have room to tighten the nut
from inside the hull. Plan accordingly.

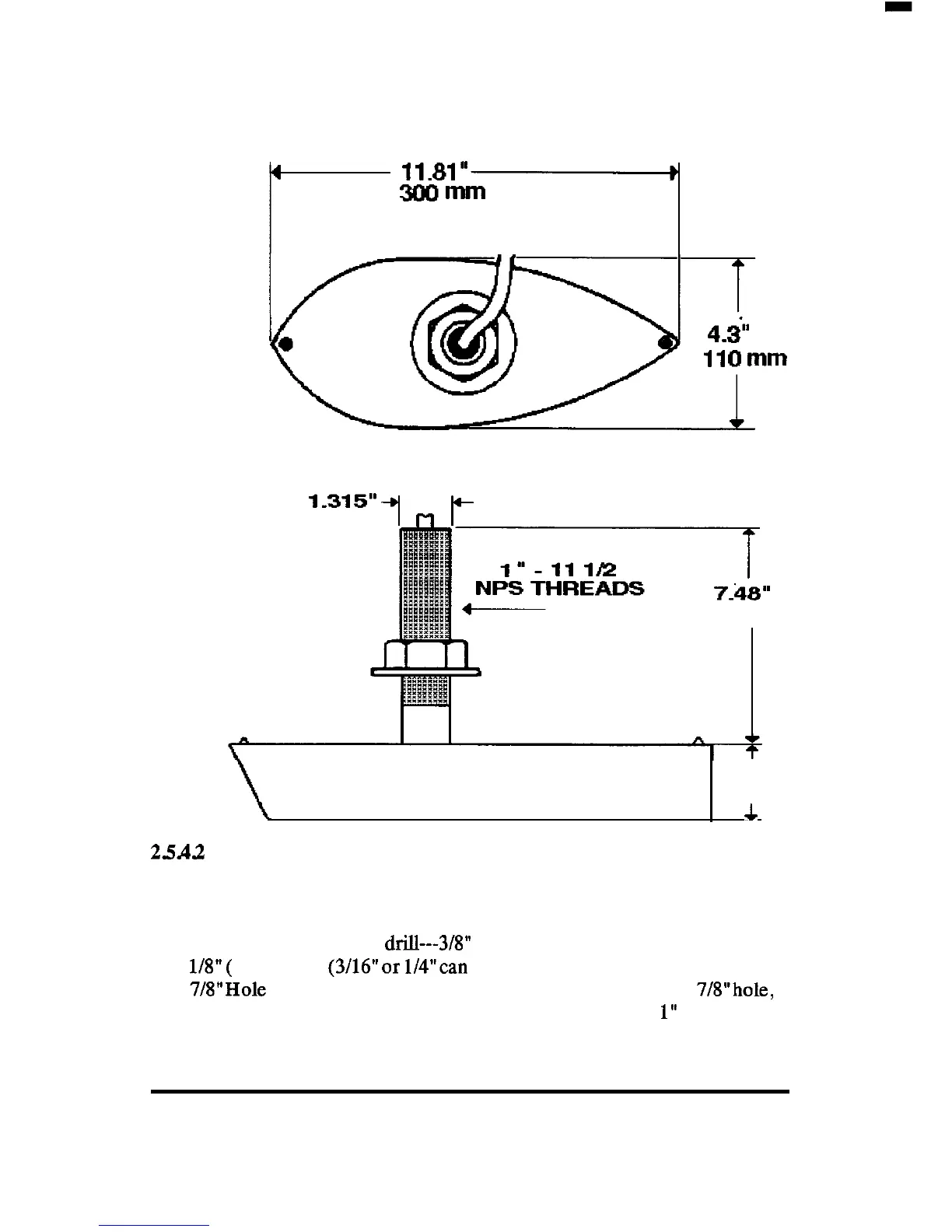

11.81"-
3cmmm
f?
7_48”
190 mm
3.42”
2528B BRONZE
87 mm
4
25A2 Preparing for Installation
Useful materials to have available for the installation are listed below for
your convenience:
1. Variable speed electric drill---3/8” or larger, chuck capacity.
2. 1/8”( mm) Drill (3/16”or 1/4”can also be used).
3. 7/8”Hole saw or spade bit. (Most stem transducers require a 7/8”hole,
however, larger commercial stem transducers may require a 1’ hole.
INSTALLATION 35
