Raytheon V8010 User Manual

However, for optimum fish detection, the Gain and STC controls may be
set independently for each frequency display.

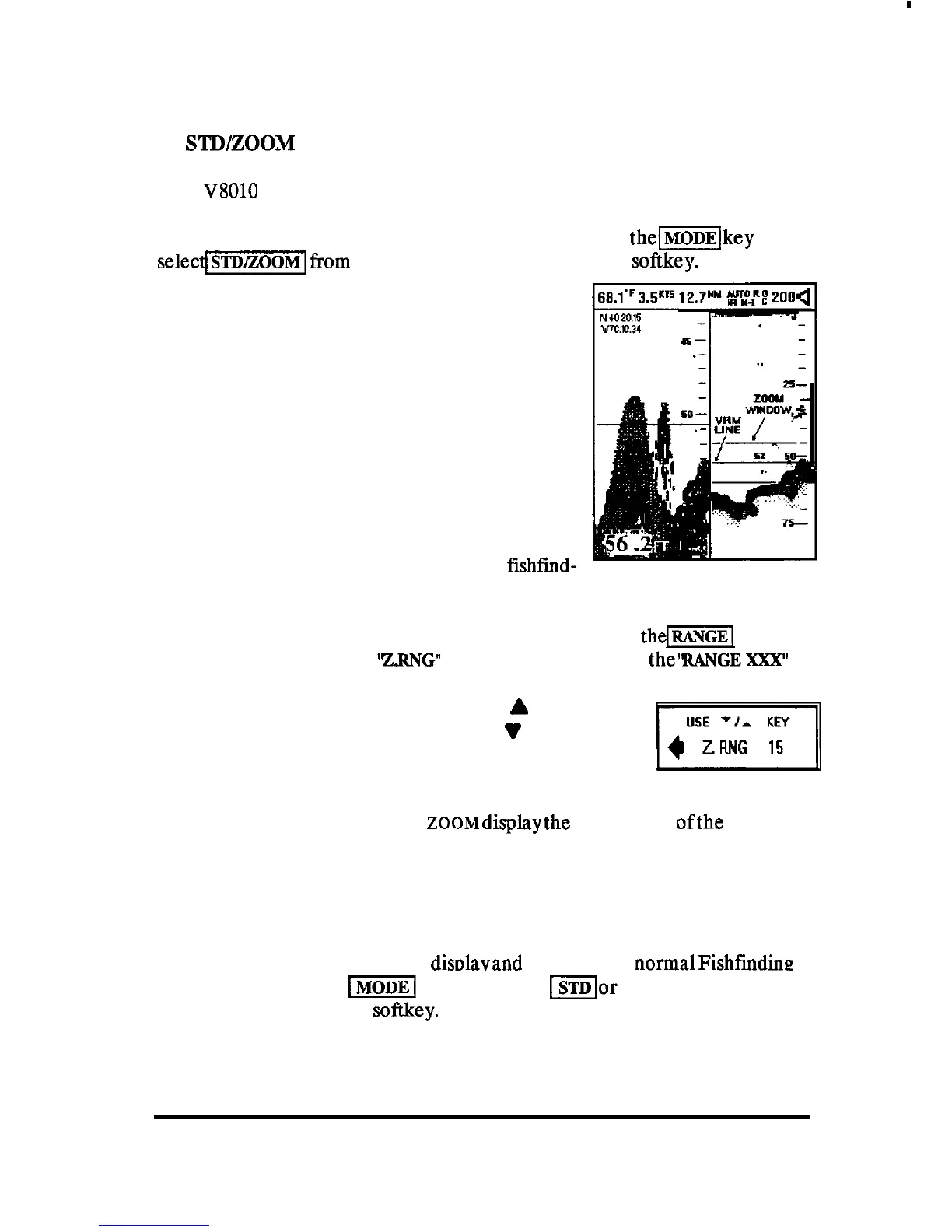

333 STD/ZOOM Mode
The V8010 features a special Zoom mode which allows you to magnify any
area of the fishfinding screen selected by the VRM line to get a closer look
at fish or fish schools. To use the Zoom feature, press the_MODEjkey and
selecde[from the Mode menu by pressing the softkey.
The fishfmding screen will divide vertically
showing the Standard fishfmding display on the
right side (50%) and the ZOOM (magnified) area
of the water column designated by the VRM line
appearing on the left side (50%) of the screen.
The location of the ZOOM window is determined
by the position of the VRM line on the fishfinding
display. To magnify any particular section of the
water column, just press the (up) or (down)
keys to move the VRM line to the desired location
to be enlarged as viewed on the Standard fishfind-
ing display.
To change the width or size of the ZOOM window, press them key. A
temporary menu labeled ‘ZING appears directly below theWANGE Xxx”
menu with the current ZOOM expansion value above and
below the VRM line shown. Press the A (up) key to
increase the ZOOM window size or the v (down) key to
decrease the zone window size.
v;::
The range scale marks for the split screens are shown at the right edge of
the split screen displays.Forthe ZooMdisplaythe upperdepth ofthe ZOOM
window appears at the top of the scale. The VRM line is centered in the
window, and the lower depth of the ZOOM window appears at the bottom
end of the scale. In addition, “zone” lines appear on the STD fishfmding
display above and below the VRM line to show the ZOOM window setting.
To turn OFF the ZOOM mode disolavand return to the normalFishfinding
display just press the [MODE] key add select mor any other operating
mode with the indicated softkey.
OPERATION 59
