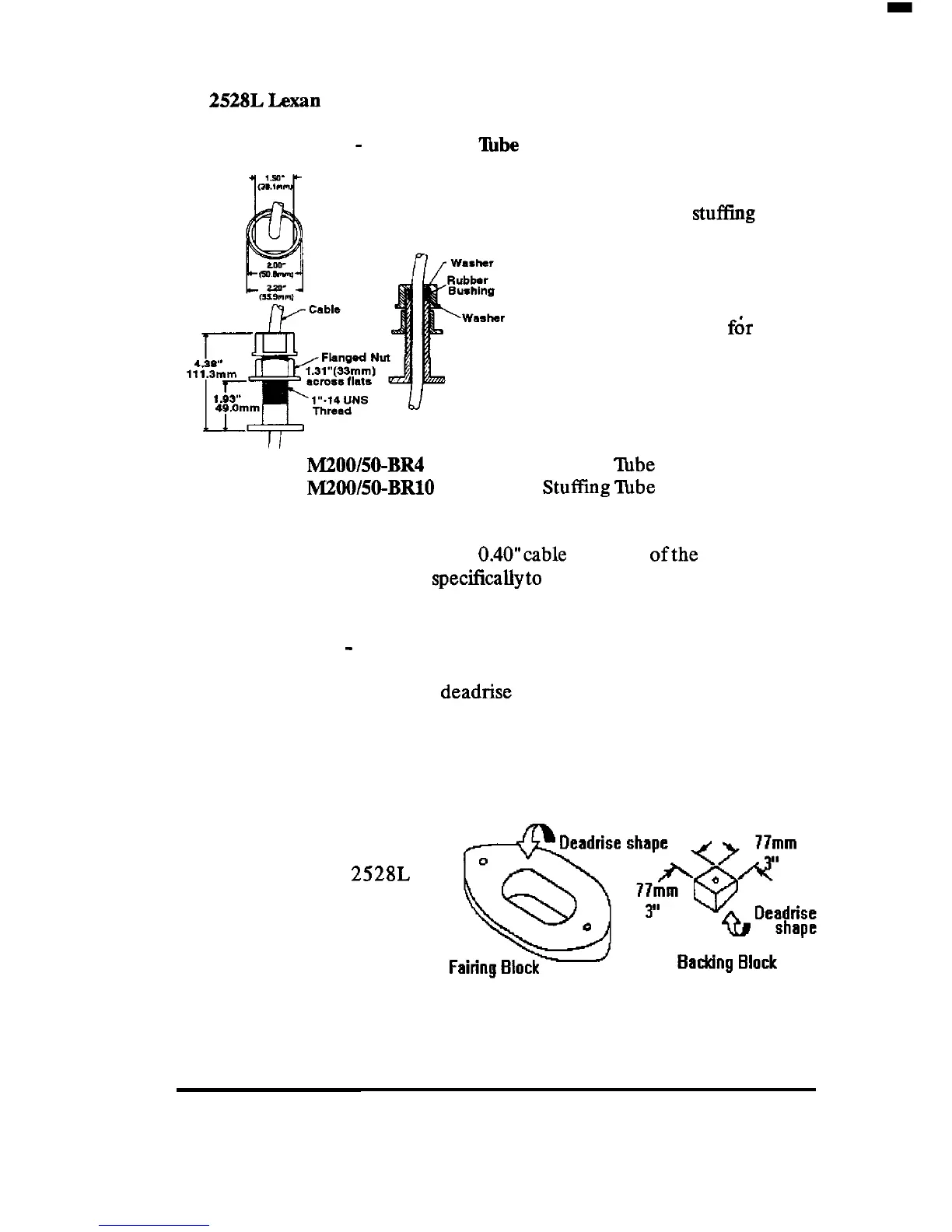

2.53 2528L Lexan Transducer Installation
253.1 Preparation 1 - The Stuffing lbbe
Installation of the 2528L lexan
transducer requires a stufling tube
of a material compatible with the
hull. Raytheon offers bronze stuff-
ing tube kits for wood or fiberglass
(GRP) hulls as well as a stuffing
tube kit and adapterplate for steel
hull mounting. Stufling tubes for
wood or fiberglass hulls can be
ordered by the following numbers
from your Raytheon dealer:
M200/50_BR4
4” Bronze Stuffing lltbe
M200/5O_BRlO 10” Bronze Stufling ‘Inbe
Other stuffing tubes can be used but special care must be taken to insure
these tubes will sealproperly to the 0.40”cable diameter ofthe transducer.
These instructions are written speciflcallyto facilitate installationsusingthe
Raytheon optional stuffing tubes.
2532 Preparation 2 - The Fairlng Block
Nearly all vessels have some deadrise angle at the transducer mounting
location. If the transducer were mounted directly to the hull, the sound
beam will be tilted off from the vertical at the same angle as the deadrise.
A fairing block (usually constructed of wood such as mahogany or teak)
providing a level mounting
surface is strongly recom-
mended. A Resin Fairing
Block (Product # M78693)
for use with the 2528L
transducer is available from
your Raytheon dealer for
convenient installation.
INSTALLATION 24
