6. Remove the yoke knobs, the yoke, and the rubber spacers from the
V8010 cabinet. Check that the unit will fit into the cut-out area.
7. Complete the installation of the DC power, transducer, data input,
ground, and any other accessory cables, into the console.
8. Slip the trim ring over the cabinet from the rear.Make sure the rounded
tabs on each side face the rear of the cabinet. Slide the unit into the
cutout of the panel. A suitable sealant may be used between the trim
ring and console panel to prevent moisture entry.
9. Use the clamps and hardware supplied in the kit to secure the unit in
the trim ring bracket. The trim ring should be then secured onto the
console with the countersunk flathead screws. Connect all cables to
the unit rear panel.
2.4 CONNECTIONS

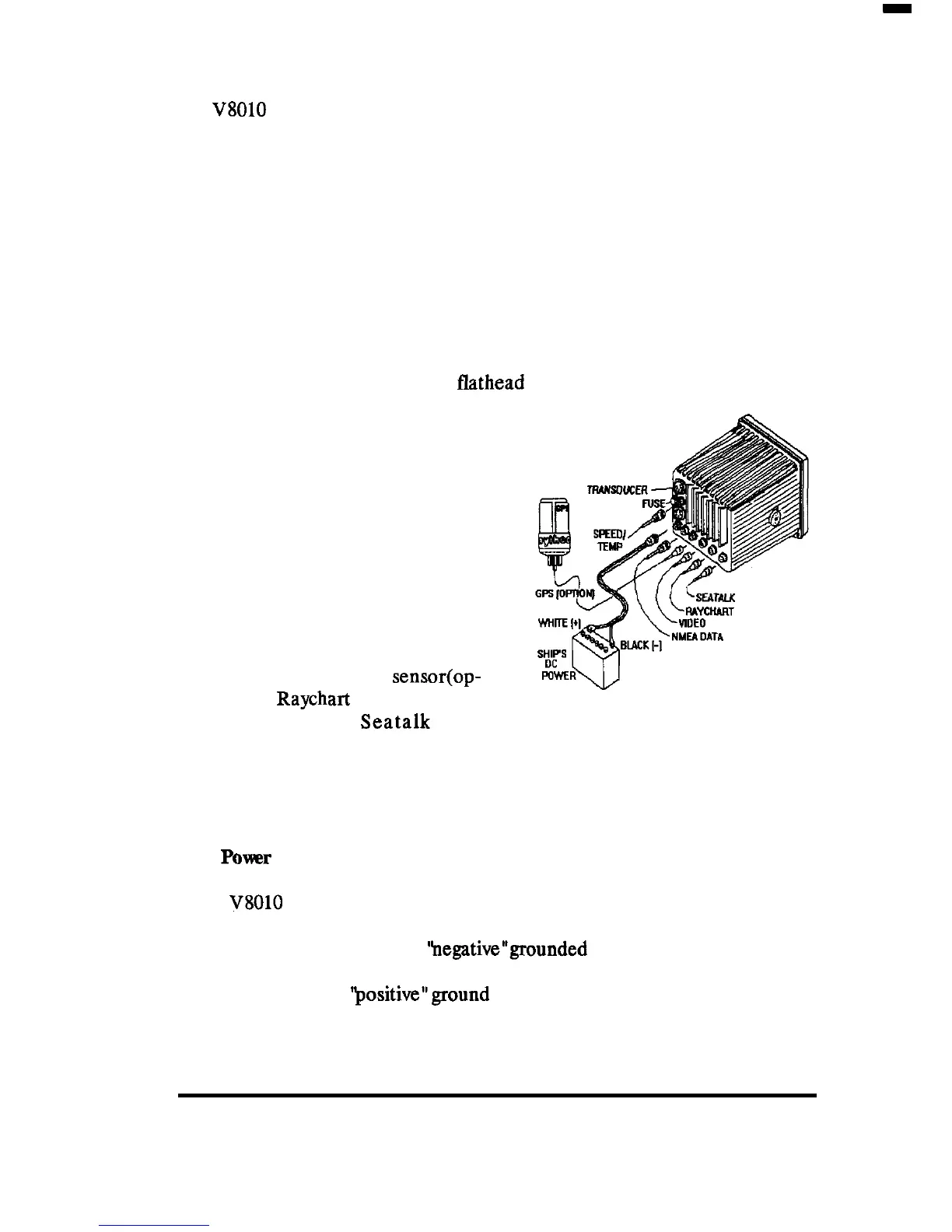

The drawing shows the basic rear
panel connections to the echo
sounder unit. In a simple installa-
tion, the connections at the left side
of the unit (power and transducer)
are used. The connectors along the
bottom provide input of NMEA
data, the GPS antenna sensor(op-
tional), the Raychart 610ES control-
ler (optional), or Seatalk data
(optional). A connector for an external RGB video output is also provided.
A grounding screw is provided to connect the echo sounder to the ship’s
RF ground system.
2.4.1 POWX Input
The V8010 is intended for use on vessels with DC power systems and can
operate as long as the DC supply is maintained between 10.8 to 41.3 VDC.
The DC power system can be ‘hegative”grounded or have both positive and
negative supply lines “floating” above ground. The echo sounder is not
intended for use on ‘positive”ground vessels.
INSTALLATION 14
