RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 265

Dec 10, 2015

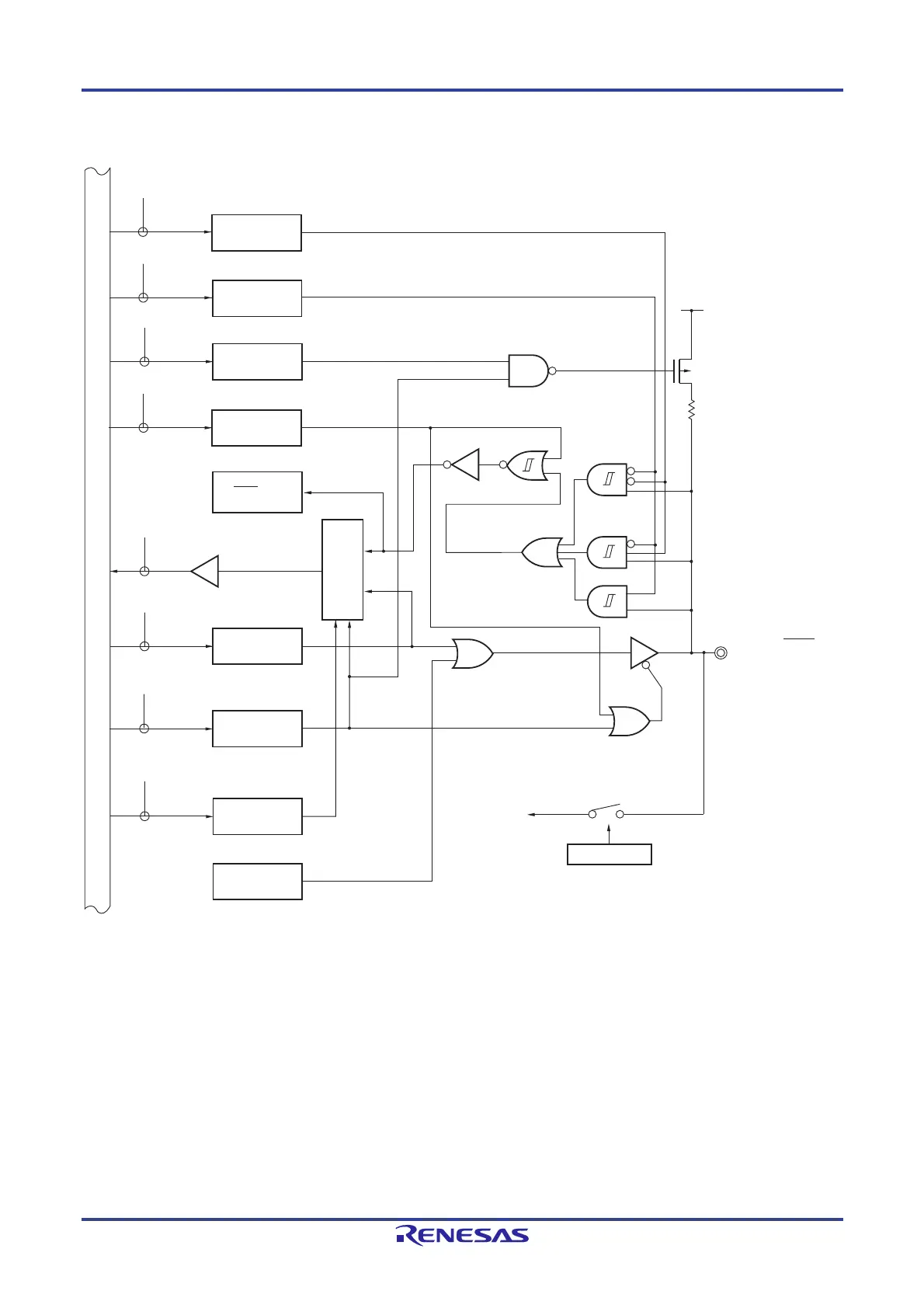

Figure 4-44. Block Diagram of P73

P73/KR3/SSI11/

SNZOUT7/(CRXD0)

ANI29

PORT

PU73

SSI11/KR3/

(CRXD0)

P73

P-ch

PU7

PM7

PM73

PIM7

PIM73

PIM

PMC

PMC7

PMC73

PMS

PMS0

SNZOUT7

CMOS

(Schmitt3)

TTL

CMOS

(Schmitt1)

PITHL7

PITHL73

PITHL

Internal bus

Output latch

Alternate function

Selector

A/D converter

ADS

ADS4 to ADS0

P7: Port register 7

PU7: Pull-up resistor option register 7

PM7: Port mode register 7

PIM7: Port input mode register 7

PMC7: Port mode control register 7

PMS: Port mode select register

PITHL7: Port input threshold control register 7

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
