RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 266

Dec 10, 2015

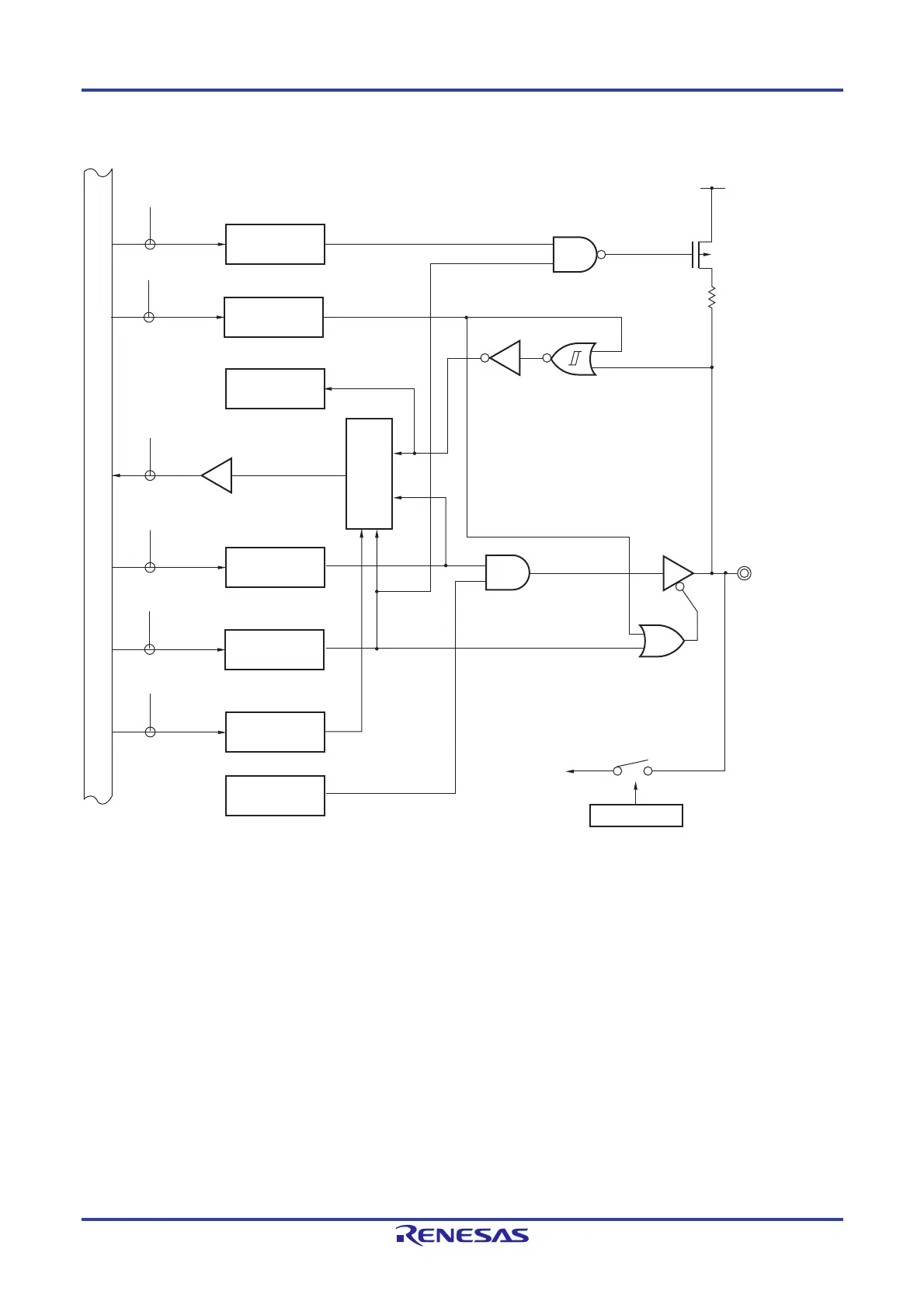

Figure 4-45. Block Diagram of P74

P74/KR4/

(SO10)/(TXD1)

ANI30

PORT

PU74

(KR4)

P74

P-ch

PU7

PM7

PM74

PMC

PMC7

PMC74

PMS

PMS0

(SO10)/(TXD1)

Internal bus

Output latch

Alternate function

Selector

A/D converter

ADS

ADS4 to ADS0

P7: Port register 7

PU7: Pull-up resistor option register 7

PM7: Port mode register 7

PMC7: Port mode control register 7

PMS: Port mode select register

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
