RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 267

Dec 10, 2015

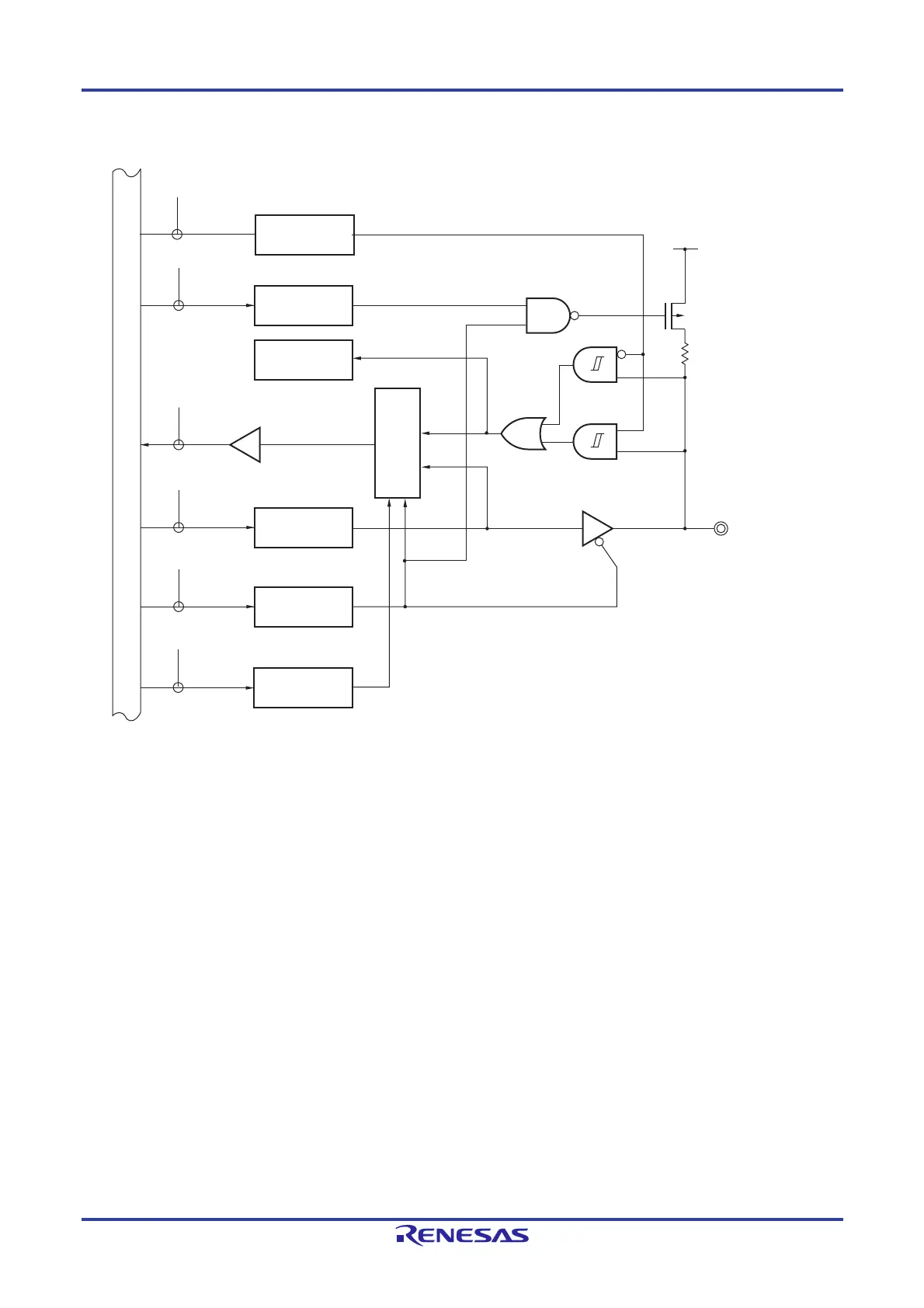

Figure 4-46. Block Diagram of P75

P75/KR5/

(SI10)/(RXD1)

PORT

PU75

KR5/(SI10)

/(RXD1)

P75

PM75

P-ch

PU7

PM7

PMS

PMS0

PITHL7

PITHL75

PITHL

CMOS

(Schmitt3)

CMOS

(Schmitt1)

Internal bus

Output latch

Alternate function

Selector

P7: Port register 7

PU7: Pull-up resistor option register 7

PM7: Port mode register 7

PMS: Port mode select register

PITHL7: Port input threshold control register 7

RD: Read signal

WRxx: Write signal
