RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 966

Dec 10, 2015

(3) Processing flow (in single-transmission mode)

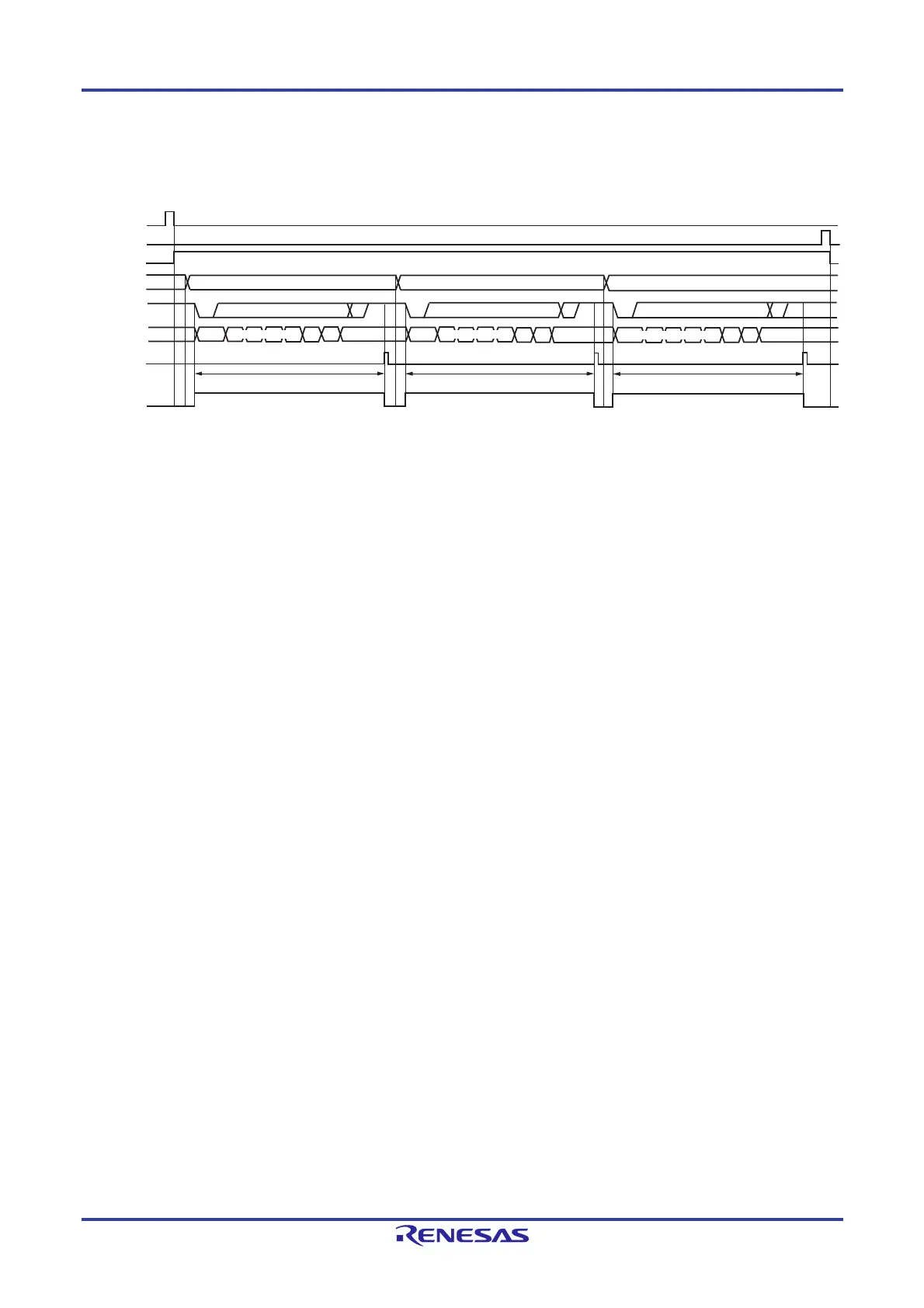

Figure 15-125. Timing Chart of UART Transmission (in Single-Transmission Mode)

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0), q: UART number (q = 0, 1)

mn = 00, 10

SSmn

SEmn

SDRmn

TxDq pin

Shift

INTSTq

TSFmn

ST ST

STmn

Data transmission (7-bit length)

Data transmission (7-bit length) Data transmission (7-bit length)

Transmit data 1

Transmit data 2

Transmit data 3

Transmit data 2

Transmit data 1

Shift operation
