RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 967

Dec 10, 2015

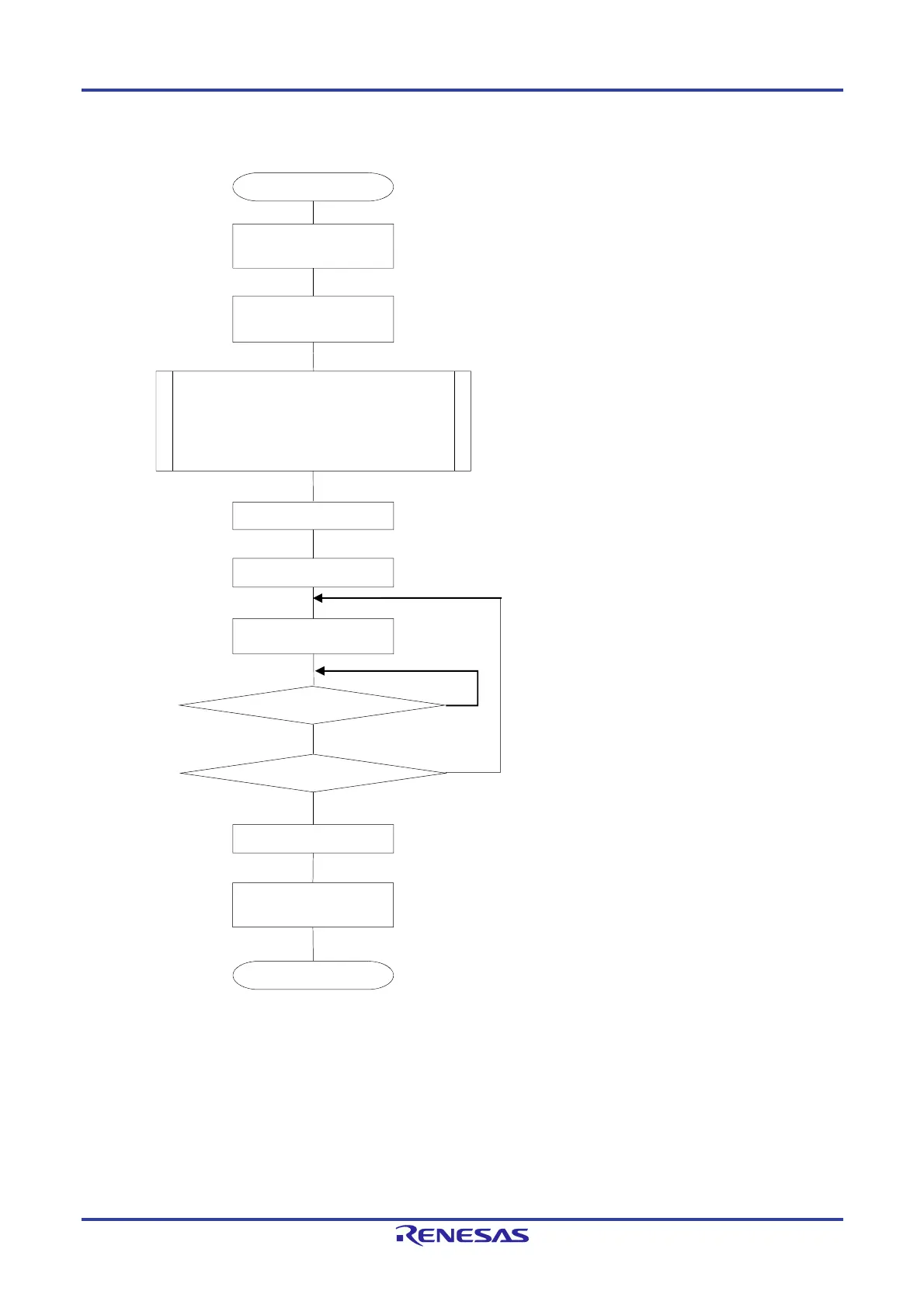

Figure 15-126. Flowchart of UART Transmission (in Single-Transmission Mode)

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0), mn = 00, 10

Starting UART communication

Writing 1 to the SSmn bit

Writing transmit data to the

SDRmn register

Writing 1 to the STmn bit

Specify the initial settings while the

SEmn bit of serial channel enable

status register m (SEm) is 0 (operation

is stopped).

SMRmn, SCRmn: Setting communication

SDRmn[15:9]: Setting transfer rate

SOLmn: Setting output data level

SOm, SOEm: Setting output

Transfer end interrupt

enerated?

Transmission

Yes

Setting the SAUmEN bit of the

PER0 register to 1

Setting operation clock by

the SPSm register

Port manipulation

End of communication

Clearing the SAUmEN bit of the

PER0 register to 0
