Ricoh D009 - Bridge Unit Drive Motor

Bridge Unit Drive Motor
D386 2 SM
1.2 BRIDGE UNIT DRIVE MOTOR
1. Bridge unit ( "Installation Procedure" in the base copier manual)
2. Rear cover ( "Bridge Unit Control Board")

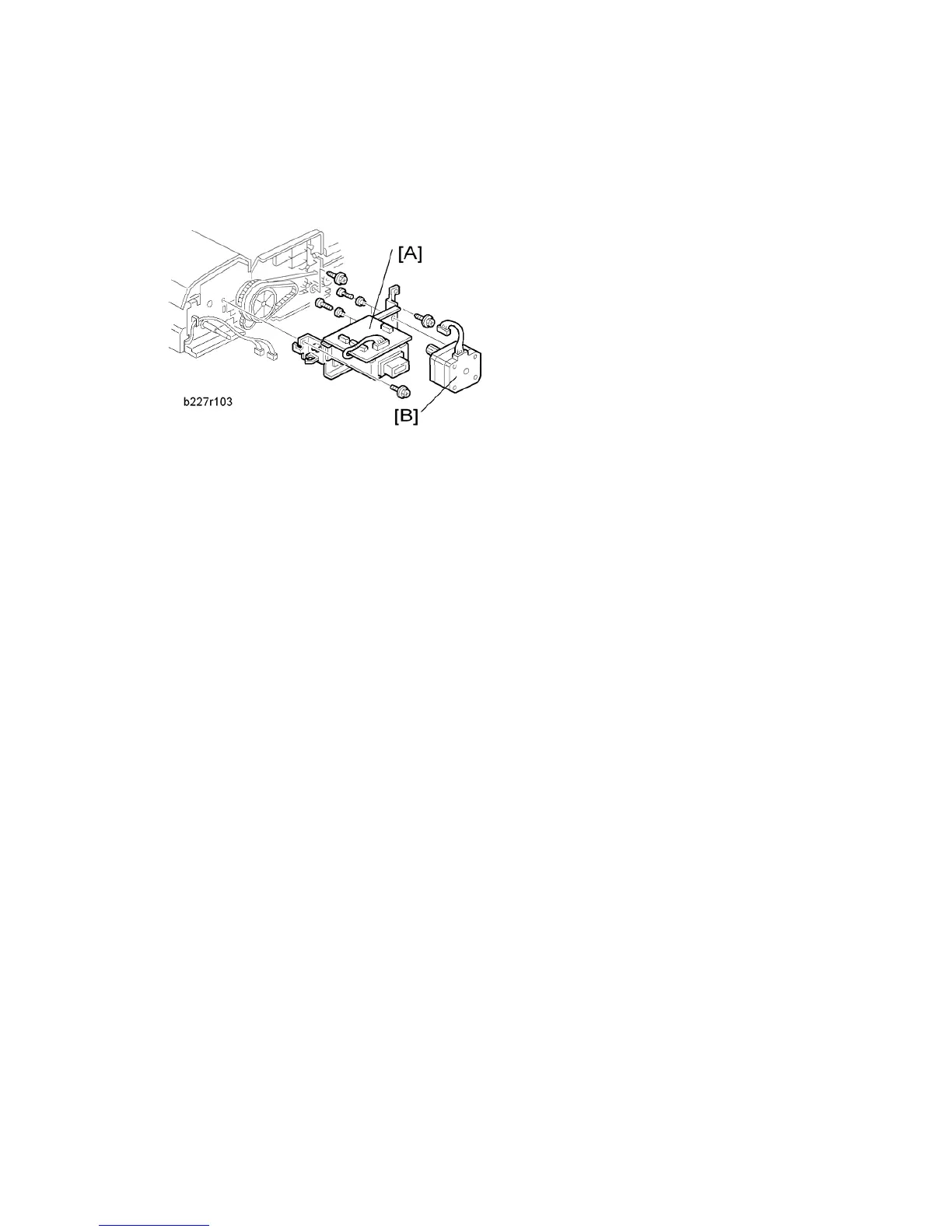

3. Bracket [A] ( x 3,  x 2)
4. Bridge unit drive motor [B] ( x 4,  x 1)
