Ricoh D009 - Separation Roller

Document Feed Components
SM 5 B802
Auto Reverse
Doc Feeder
B802

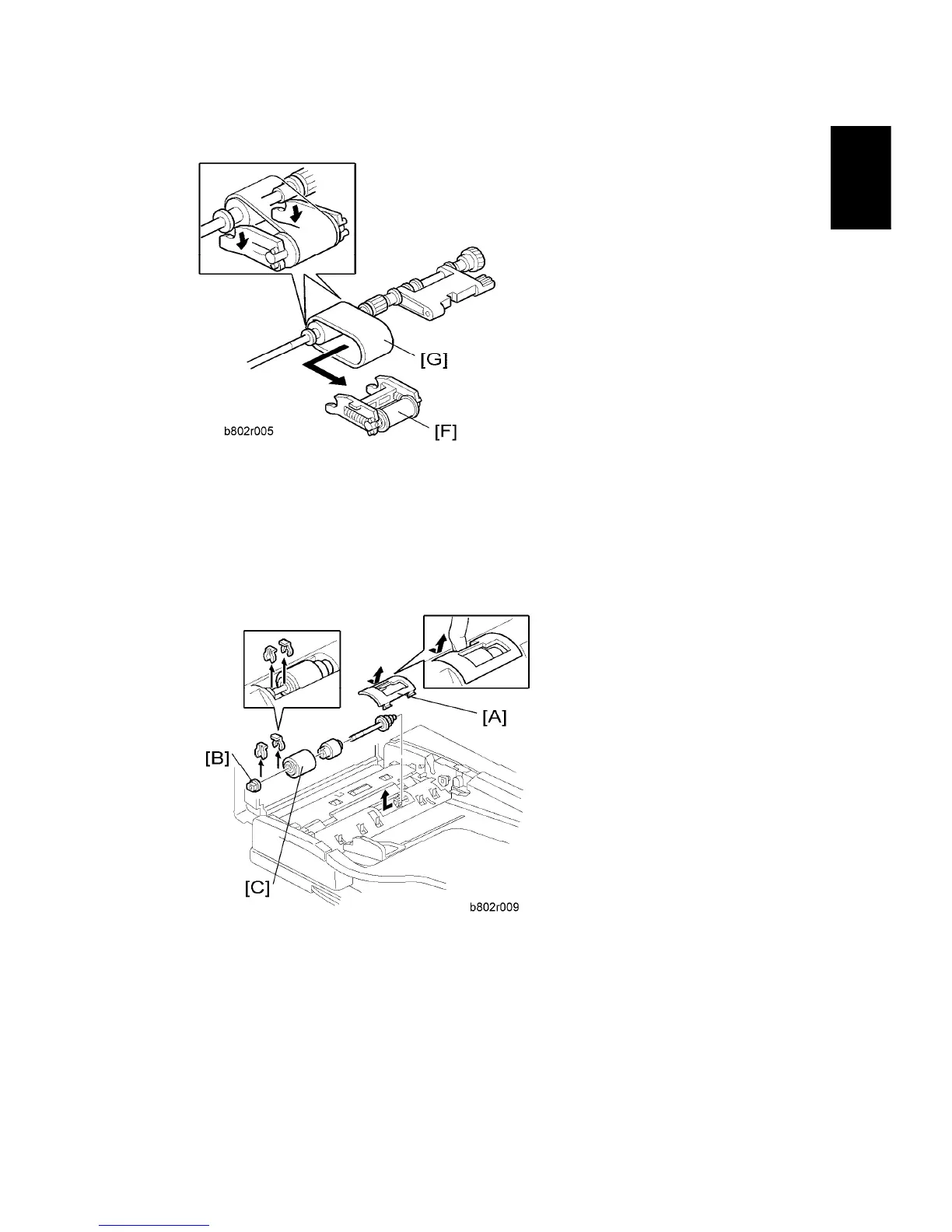

7. Belt tension unit [F]
8. Feed belt [G]
1.2.3 SEPARATION ROLLER
1. Open the left cover.
2. Separation roller cover [A]
3. Remove the bushing [B] (

x 1).
4. Slide the separation roller shaft to the front side, and then remove it.
5. Separation roller [C] (

x 1)
