Ricoh D009 - Accessories; Installation; VM Card Type F (D377)

Controller Options
SM 2-105 D009/D011/D012/D013/D091/D092
Installation
2.21.12 VM CARD TYPE F (D377) (D009 SERIES ONLY)
Accessories

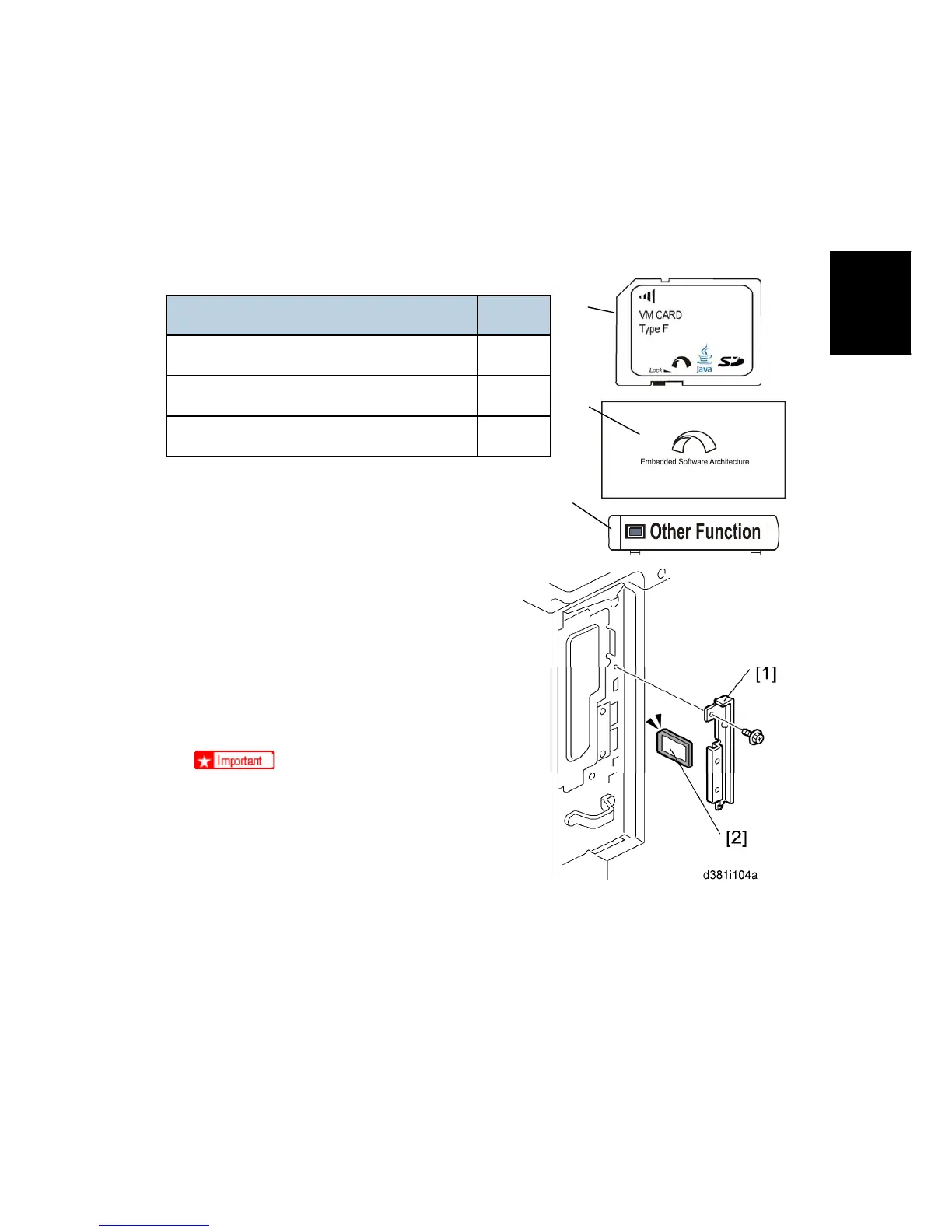

Check the accessories and their quantities against the table below.
Description Q'ty
1. VM SD Card 1
2. Decal 1
3. “Other Function” keytop 1
Installation
1. Switch the machine OFF.
2. Remove the slot cover [1] for SD cards ( x
1).
3. Turn the SD-card label face [2] to the rear of
the machine. Then push it slowly into Slot 2
until you hear a click.
4. Plug the main machine in and turn ON the
main power switch. Installation will be
performed automatically.
- Do not turn the machine OFF or remove
the SD Card until installation is complete.
The installation may take up to 10 minutes to
complete.
- Never remove the Java (VM) Card without first ending the application and then
stopping the Java (VM) card. This is done by deselecting the application and Java in
the “Startup Setting” tab in Extended Features.
5. Apply the “Embedded Software Architecture” decal to the front cover of the machine.
6. Replace the unused keytop on the operation panel with the “Other Function” keytop.
>PS<
[1]
[2]
[3]
Rev. 03/09/2012
