Document Feed Components
SM 3 B802
Auto Reverse
Doc Feeder
B802
1.2 DOCUMENT FEED COMPONENTS

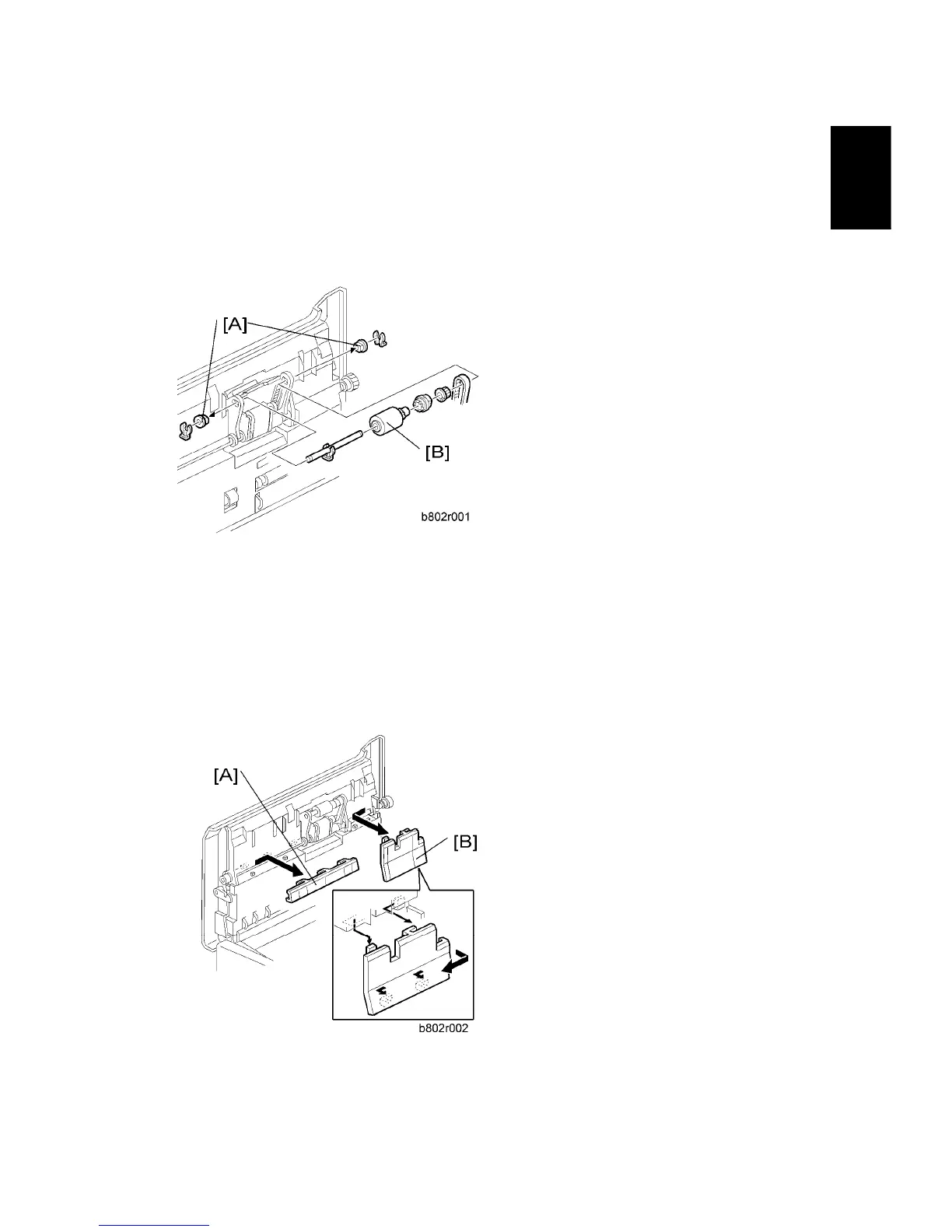

1.2.1 PICK-UP ROLLER
1. Open the left cover.
2. Bushings [A] (

x 1 each)
3. Pick-up roller [B] (gear x 1, one-way gear x 1)
1.2.2 FEED BELT
1. Open the left cover.
2. Front feed unit cover [A]
3. Rear feed unit cover [B] (hook x 2)
