Ricoh D009 - Scanner-2; Front Scanner Wire; Reassembling the Front Scanner Wire

Scanner-2
SM 4-19 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
4.5 SCANNER-2

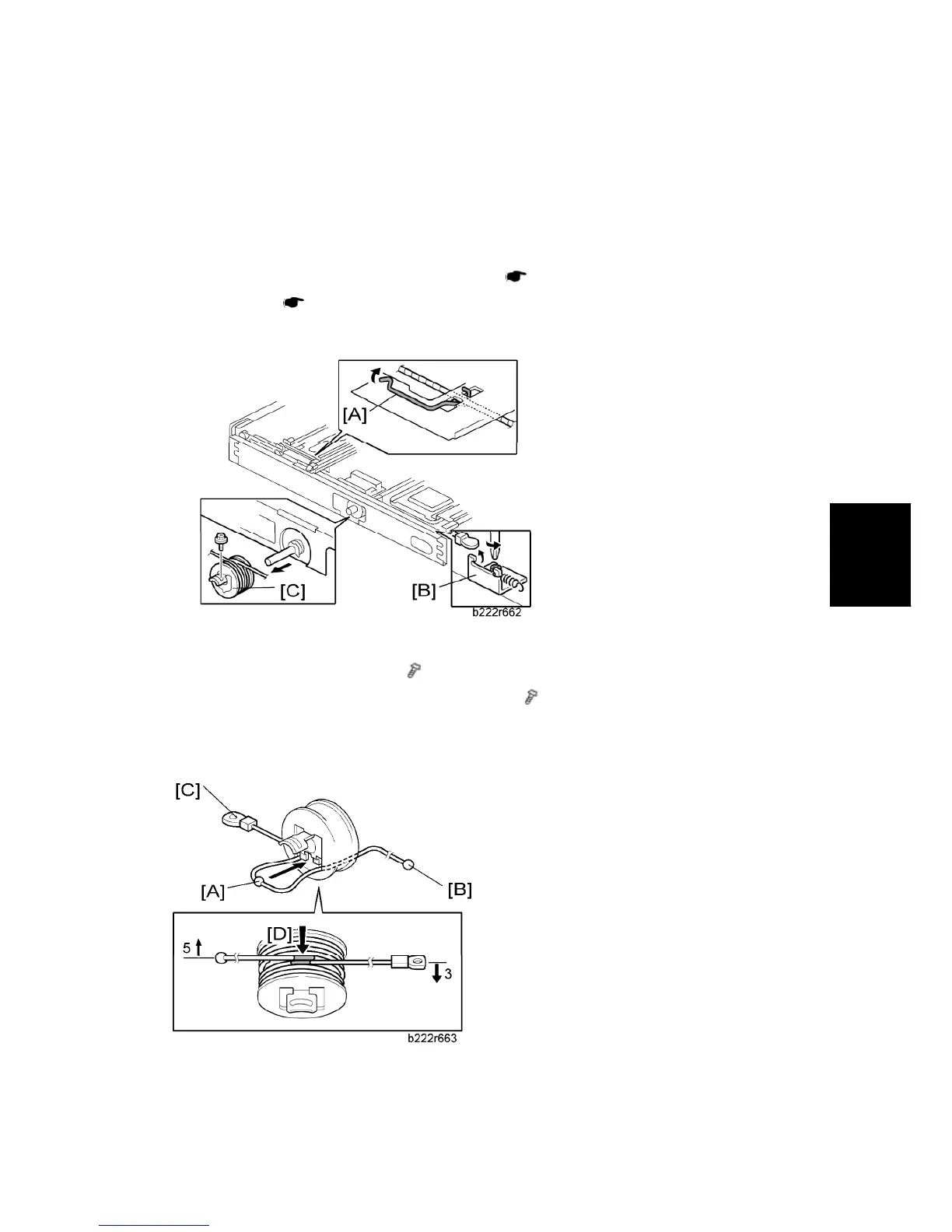

4.5.1 FRONT SCANNER WIRE
1. Operation panel with the scanner front cover ( p.4-6)
2. Front frame (
p.4-11)
3. Slide the first scanner to the right to make reassembly easy.
4. Front scanner wire clamp [A]
5. Front scanner wire bracket [B] (
x 1)
6. Front scanner wire and scanner drive pulley [C] (
x 1)
Reassembling the Front Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
