Electrical Components
D389 2 SM

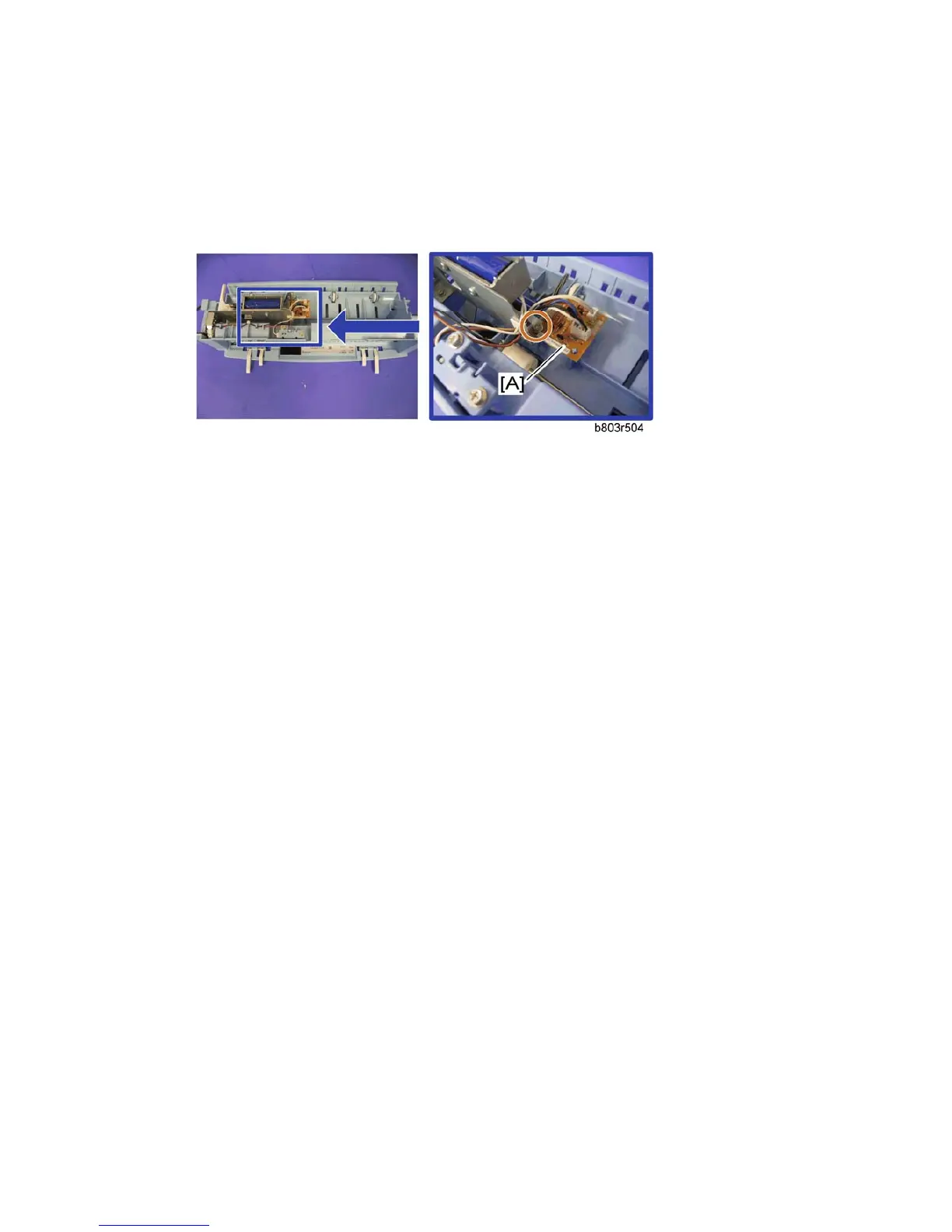

1.1.2 1-BIN CONTROL BOARD
1. 1-bin tray
2. 1-bin sorter unit ( "Paper Sensor")
3. 1-bin control board [A] ( x 1, x 3)
