Original Feed Drive
B802 14 SM
1.4 ORIGINAL FEED DRIVE
1.4.1 ADF FEED MOTOR
1. Rear cover ( 1.1.1 "Front and Rear Cover")

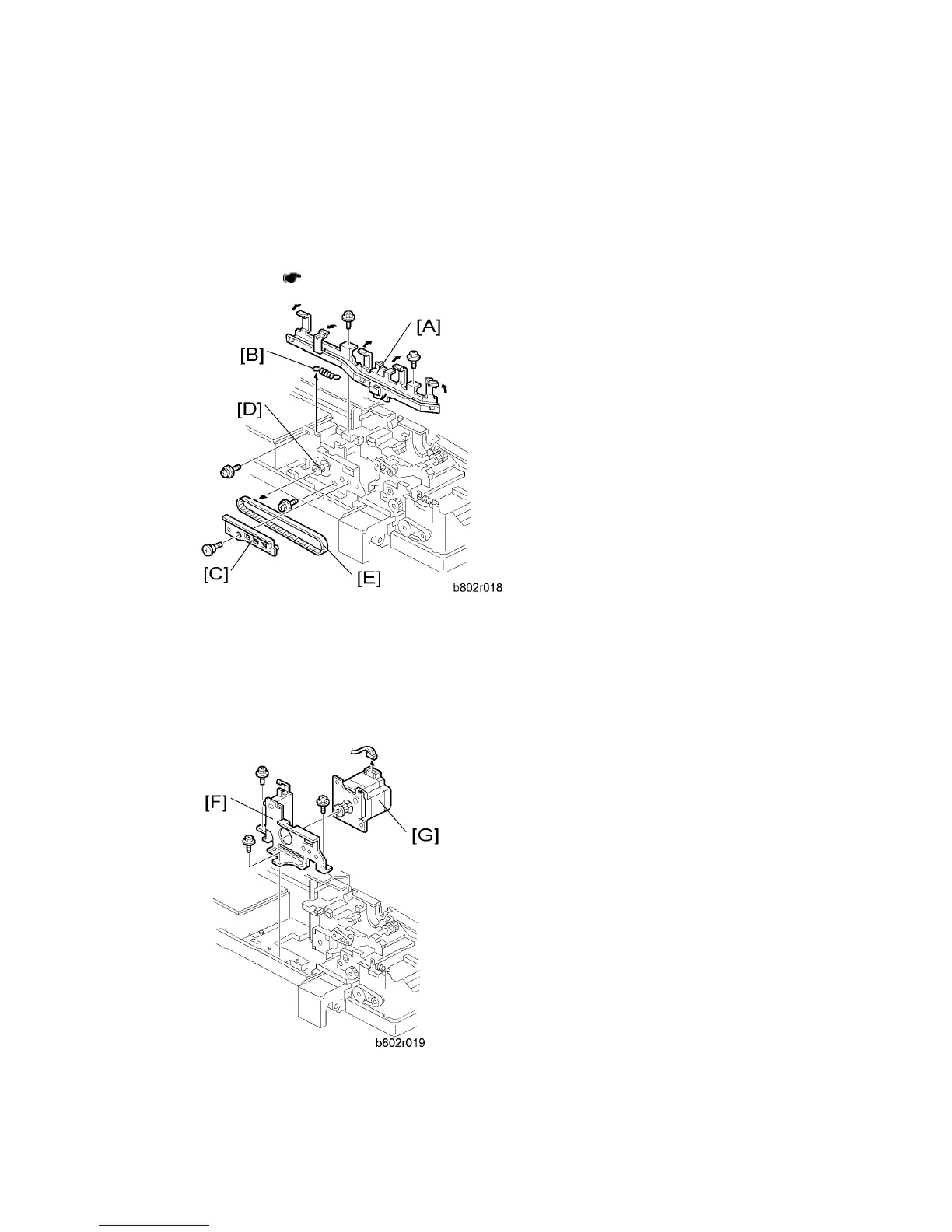

2. Harness guide [A] (

x 2, all

s, all

s)
3. Remove the spring [B].
4. Stay bracket [C] (stepped screw x 1)
5. Slide the feed motor gear [D] to the left side (seen from the front of the machine),
and then remove the timing belt [E].
6. ADF feed motor bracket [F] (

x 3)
7. ADF feed motor [G] (

x 1)
