Ricoh D009 - Punch Mechanisms

Punch Unit B702 (For B804/B805)
SM 67 B804/B805
Booklet
Finisher/
Finisher
B804/B805

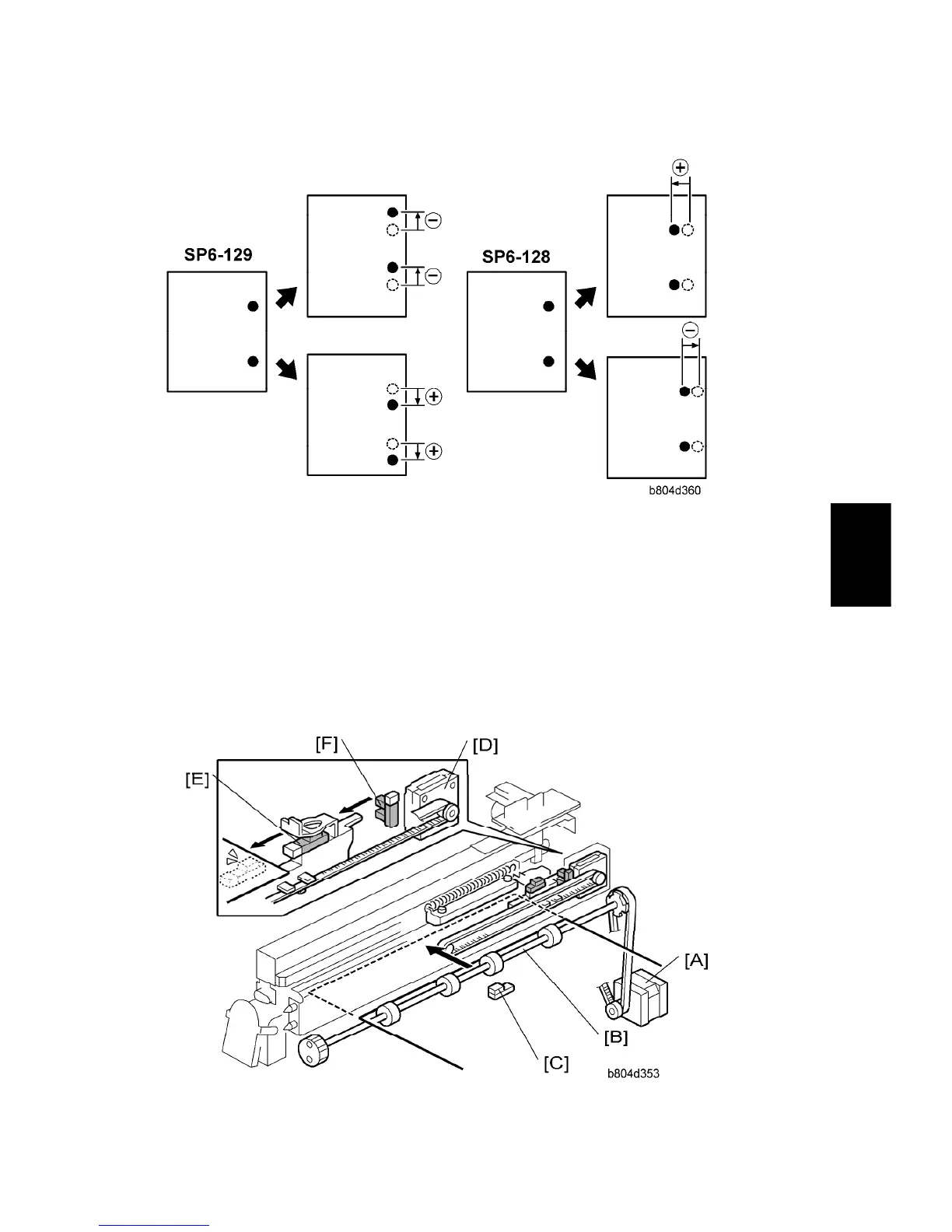

These SP codes adjust the punch hole alignment:

SP6-128 Adjusts the punch positions in the direction of paper feed.

SP6-129 Adjusts the punch position perpendicular to the direction of feed.
For more, see Section "Service Tables".
2.8.2 PUNCH MECHANISMS
Paper Position Detection
