Paper Feed
D009/D011/D012/D013/D091/D092 4-52 SM

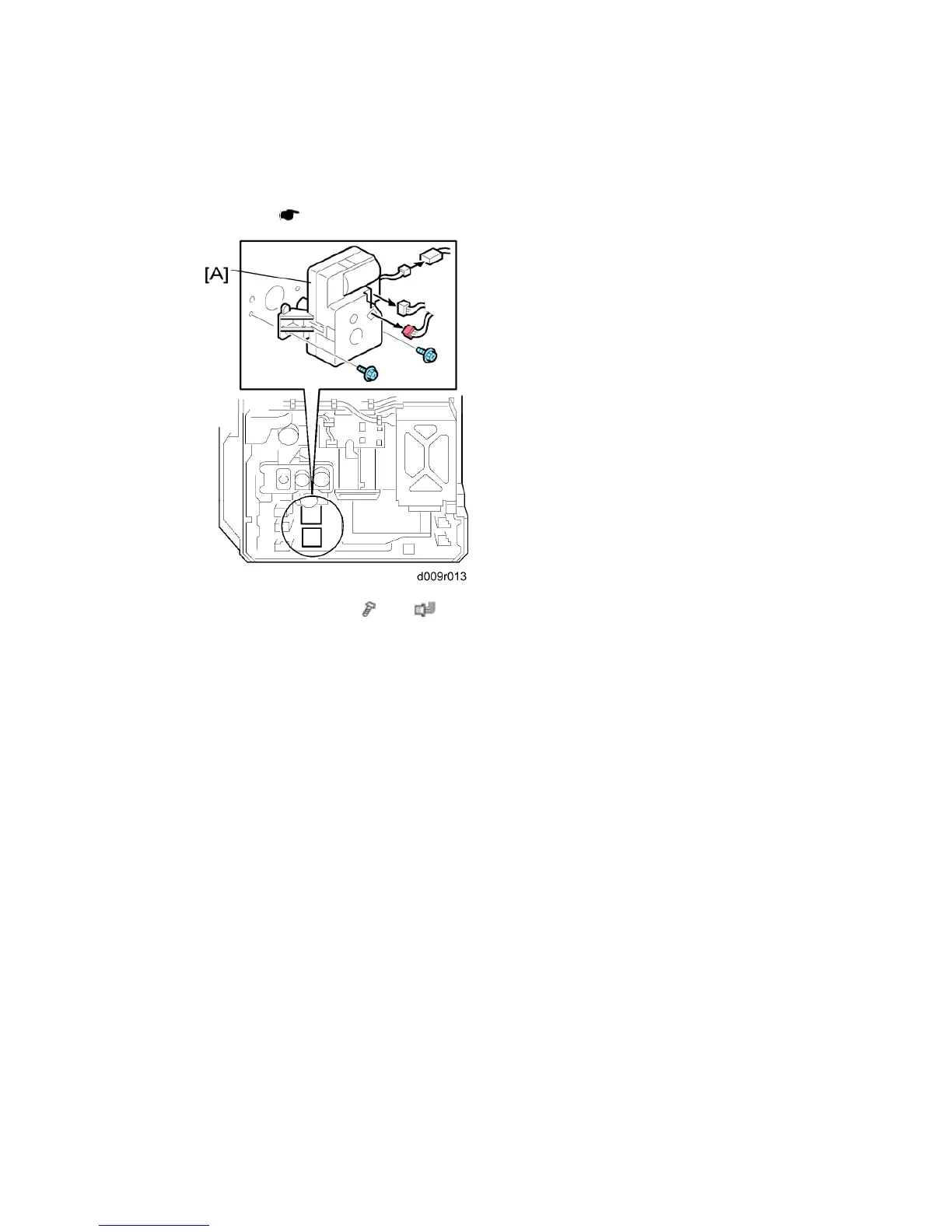

4.10.3 TRAY LIFT MOTOR
1. Rear cover ( p.4-4)
2. Tray lift motor 1 or 2 [A] (
x 2, x 3)
