Ricoh D009 User Manual

Fax Unit Options
D346 10 SM

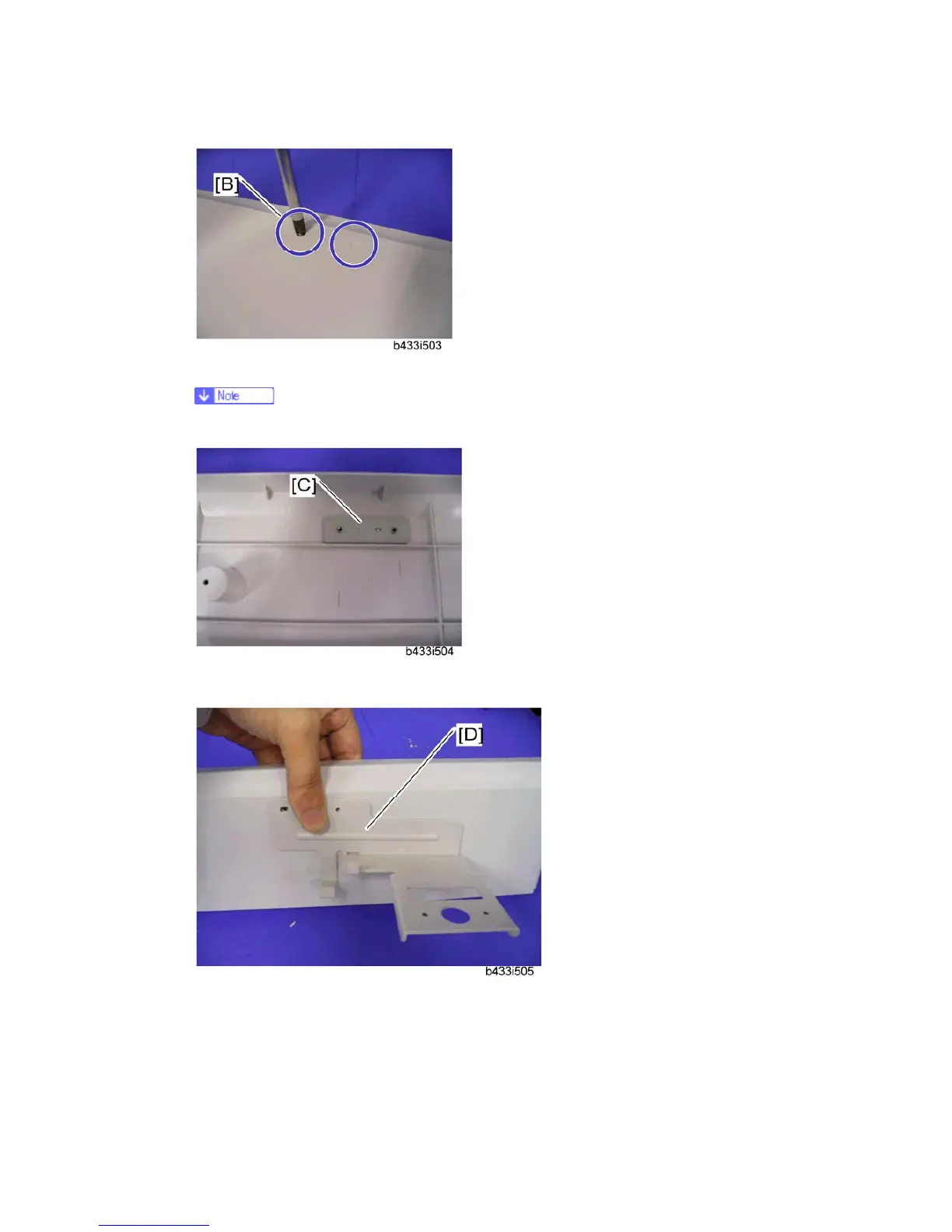

2. Make two holes [B] in the scanner left cover.
 Drill a hole from the outside of the cover with a screwdriver.
3. Attach the hand set support bracket [C] inside the scanner left cover.
4. Hold the handset bracket [D] and handset support bracket (set inside the scanner left
cover).
5. Secure the handset bracket [D] ( x 2).

Ricoh D009 Specifications

General

Brand	Ricoh
Model	D009
Category	Copier
Language	English
