OVERVIEW
SM 6-1 G108
Detailed
Descriptions
6. DETAILED DESCRIPTIONS
6.1 OVERVIEW

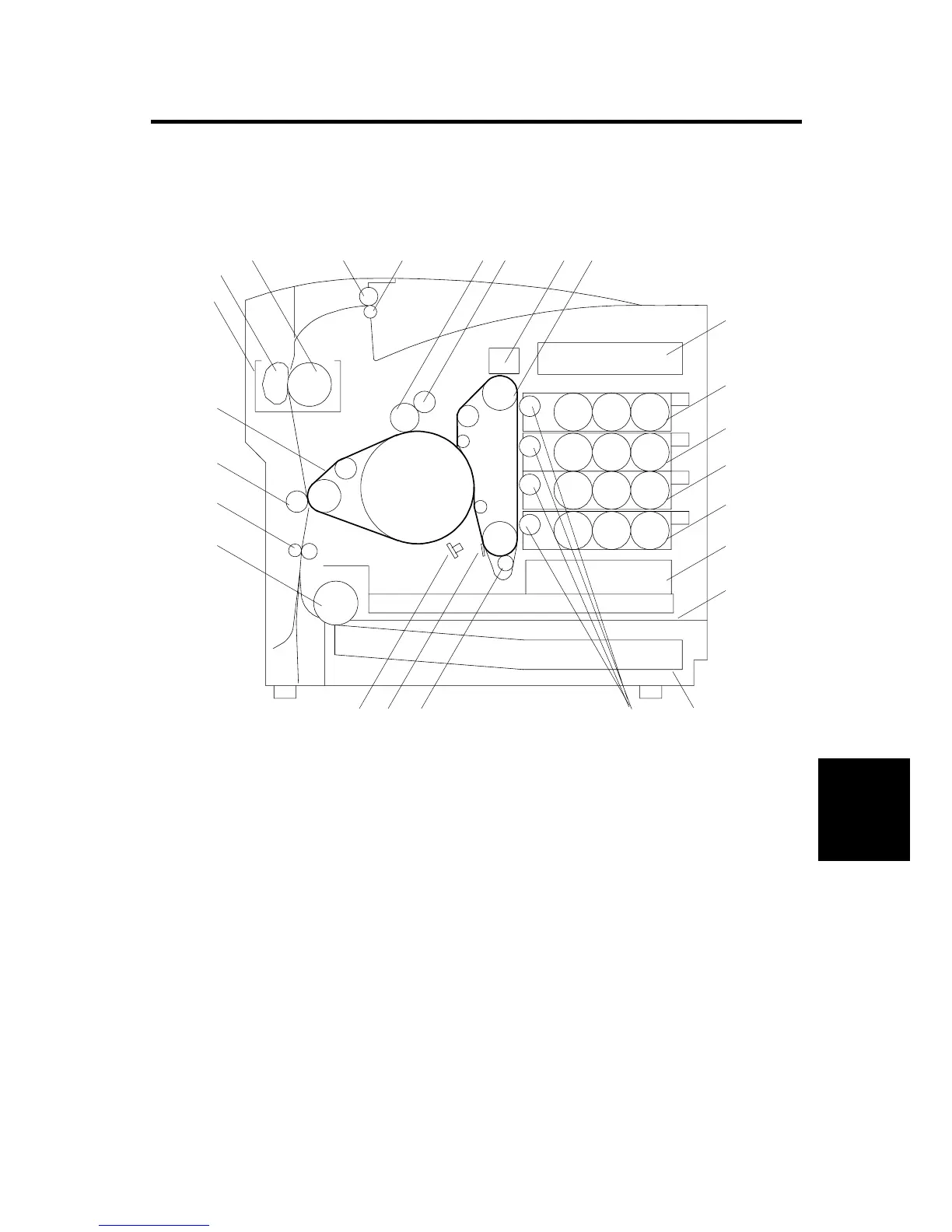

6.1.1 COMPONENT LAYOUT
1. Fusing unit
2. Pressure unit
3. Hot roller
4. Exit roller
5. Idle roller
6. Cleaning brush
7. Cleaning roller
8. OPC belt handle
9. OPC Belt
10. Input output device PCB
11. Development unit K
12. Development unit Y
13. Development unit M
14. Development unit C
15. Optics unit
16. Paper tray
17. Paper
18. Development roller
19. Charge roller
20. Cleaning blade
21. Erase lamp
22. Paper feed roller
23. Registration roller
24. Transfer roller
25. Transfer belt
G108D901.WMF
24
2
3 5 864 7 9
25
22
23
21 20 19
18
17
16
15
11
12
13
14
1
10

Ricoh G108 Specifications

General

Duplex Printing	Yes
Print Resolution	1200 x 1200 dpi
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Supported Operating Systems	Windows, Mac, Linux
