Ricoh G108 User Manual

DRIVE PATH
SM 7 G390
G390
Duplex Unit

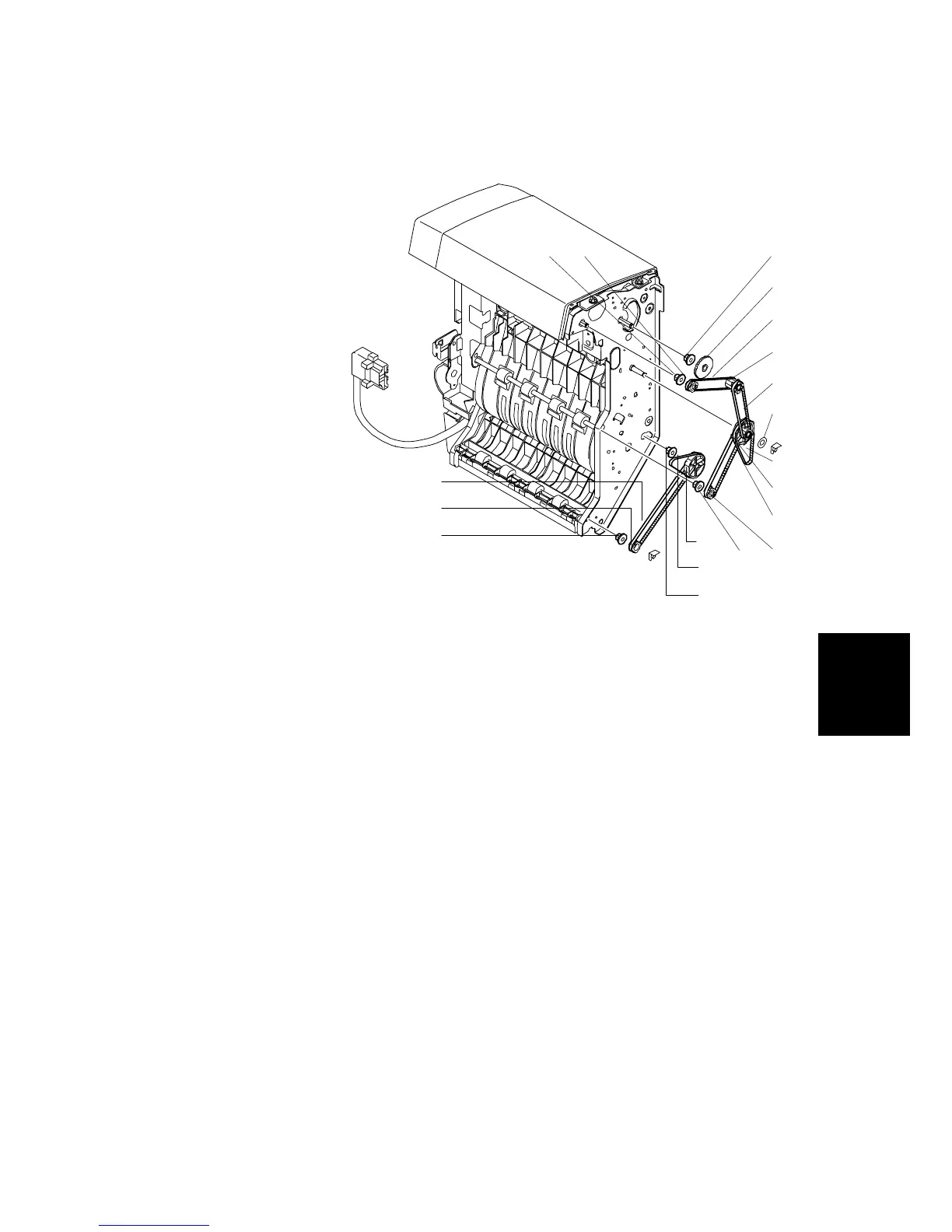

1.5.2 GEARS AND TIMING BELTS
1. Feed motor, exit
motor ( 1.5.1)
2. Spacer [A] ( x 1)
3. Two timing belts
[B][C]
4. Gear [D]
5. Timing belt [E]
6. Spacer [F]
7. Bushing [G]
8. Gear [H]
9. Bushing [I]
10. Gear [J]
11. Timing belt [K]
12. Gear [L] ( x 1)
13. Bushing [M]
14. Timing belt [N]
15. Gear [O]
16. Bushing [P]
17. Timing belt [Q]
18. Gear [R] ( x 1)
19. Bushing [S]
G390R910.WMF
[A]
[N]
[Q]
[C]
[B]
[D]
[E]
[F]
[G][H][I]
[J]
[K]
[L]
[M]
[O]
[P]
[R]
[S]
