Anti-condensation Heater (Optional Paper Feed Unit)
96

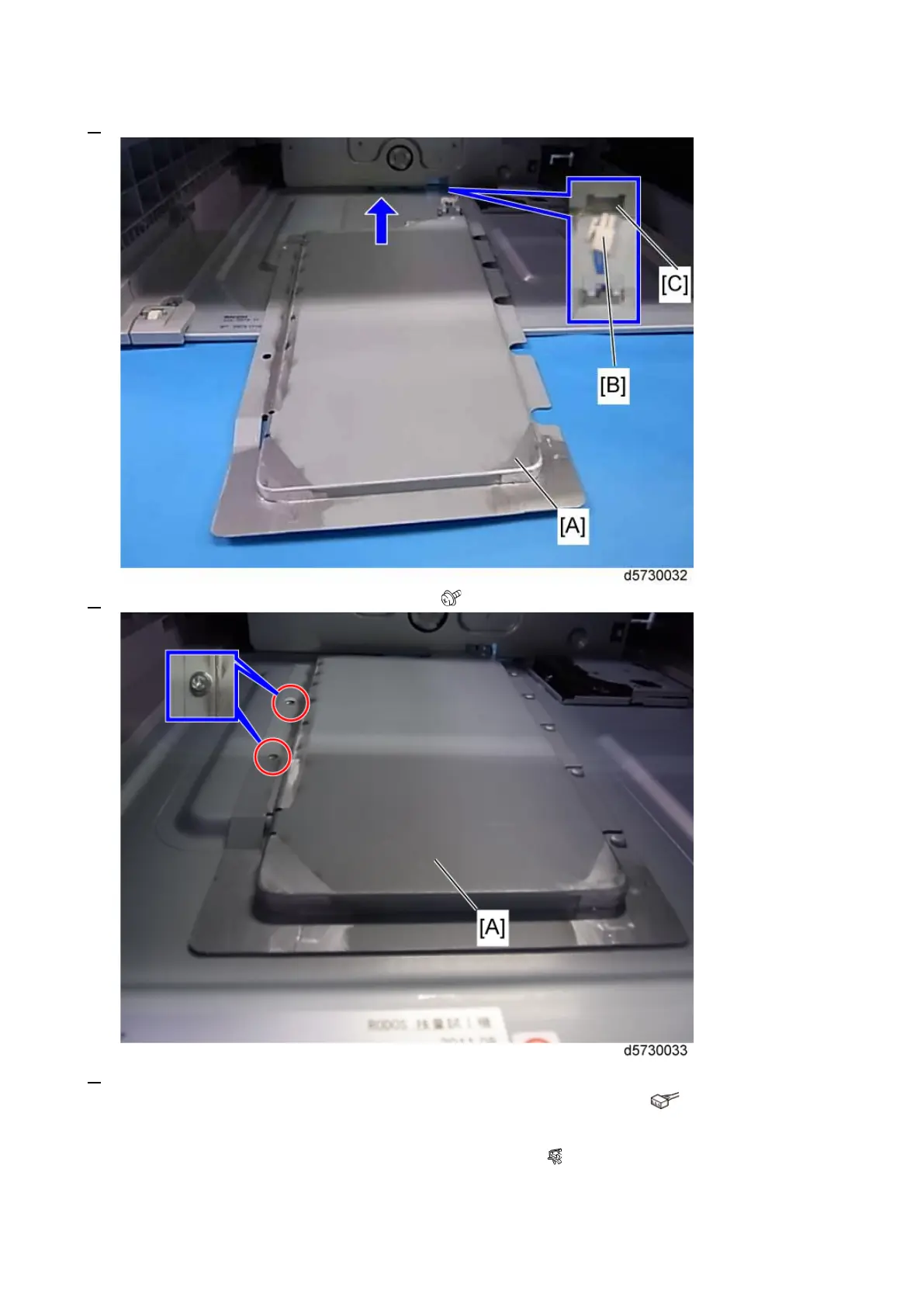

4. Slide in the tray heater [A], and pass the heater harness [B] through the square hole [C].
5. Install the tray heater [A] in the paper feed unit. ( × 2)
6. Do the following steps:
• Connect the connector [A] to the tray heater connector (attached in step 4). ( × 1)
• Connect the harness [B] to the junction harness (mainframe).
• Attach two clamps [E] and route the harness through them. ( × 4)
To Next Page
