Fusing
277
tightening the entrance guide plate.

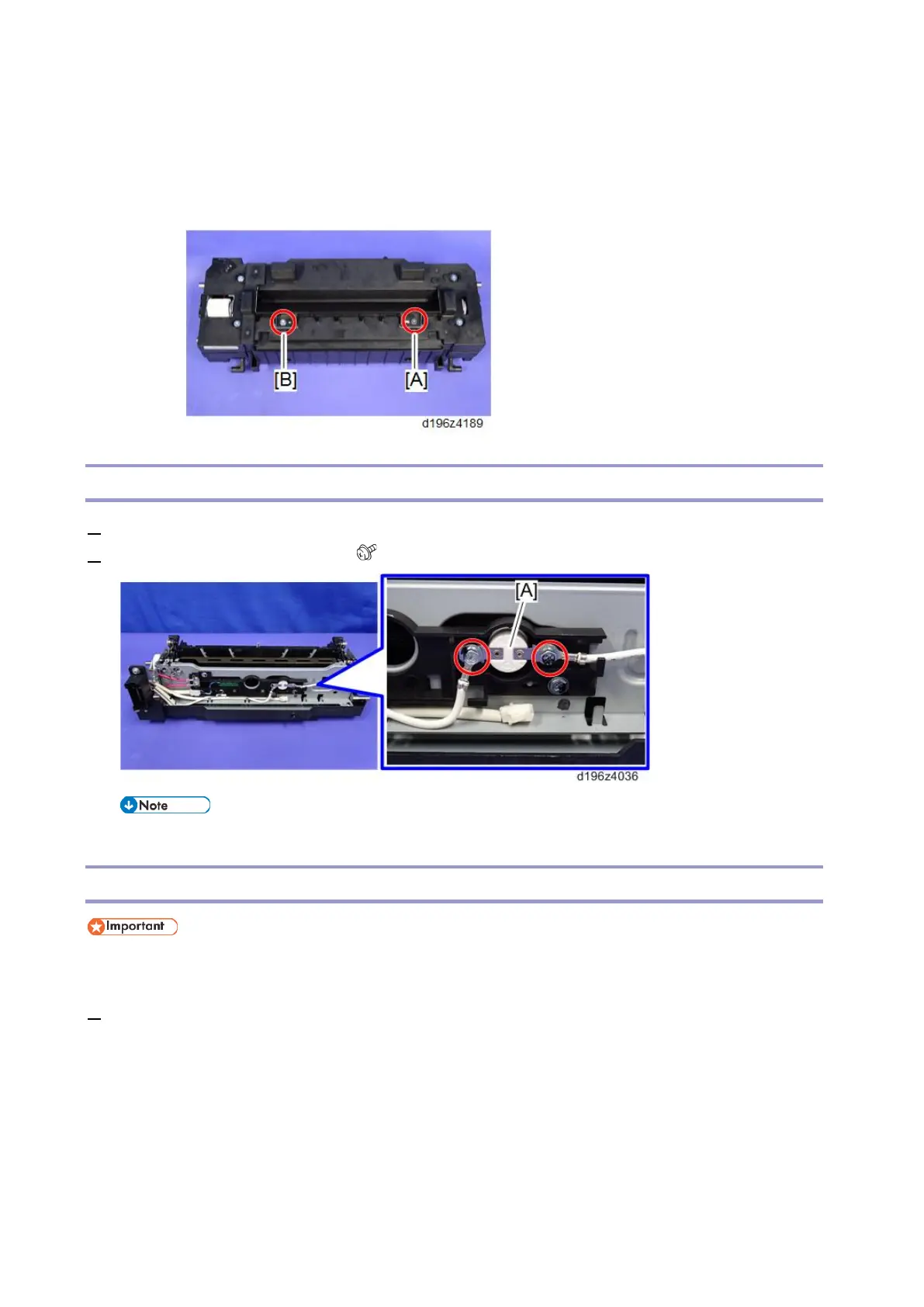

• Different types of screws are used for [A] and [B]:
[A]: Shoulder screw
[B]: Double sems screw (a screw with a washer)
Fusing Thermostat
1. Remove the fusing upper cover. (Fusing Upper Cover)
2. Remove the fusing thermostat [A]. ( × 2)
• Never re-use a thermostat that has activated. Use a new thermostat for replacement.
Fusing Thermistor (NC Sensor)
• If the hook of the fusing thermistor is broken, the fusing thermistor cannot be attached. Replace the
entire fusing unit in that case.
1. Remove the fusing upper cover. (Fusing Upper Cover)
To Next Page
