ADF
218

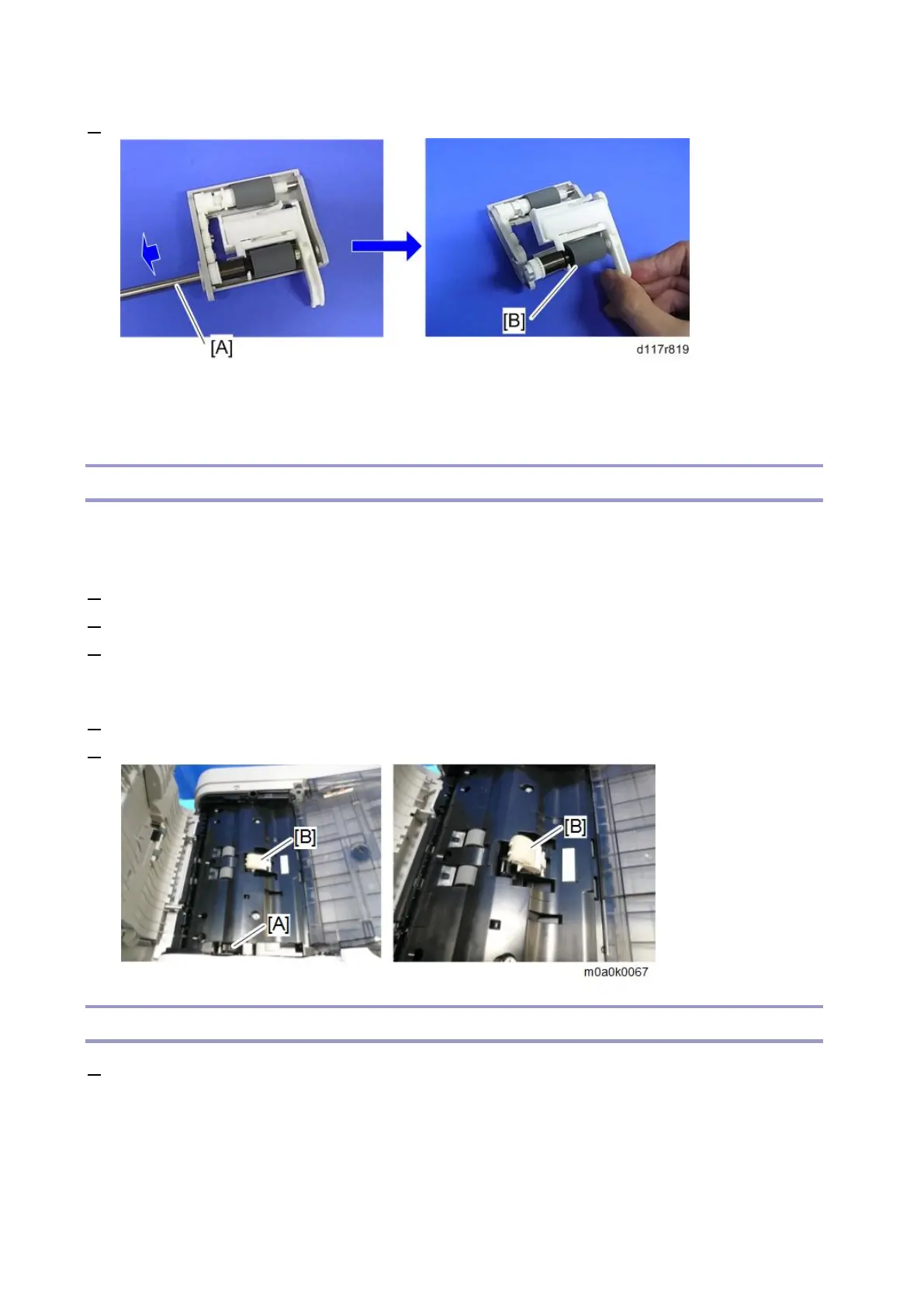

4. Slide the shaft [A], and then remove the feed roller [B].
ADF Friction Pad
Before Replacing the Friction Pad
Before replacing the friction pad, reset the PM counter.
1. Turn the power ON.
2. Reset the PM counter. (Refer to Replacement Procedure of the PM/Yield Parts)
3. Turn the power OFF.
Replacing the Friction Pad
1. Remove the original feed unit. (Original Feed Unit)
2. Push the lever [A] and then remove the friction pad [B].
ADF Relay Board
1. Remove the ADF rear cover. (ADF Rear Cover)
To Next Page
