Vertical Transport Clutch and Relay Clutch
1. Remove the paper feed motor. (Paper Feed Motor)

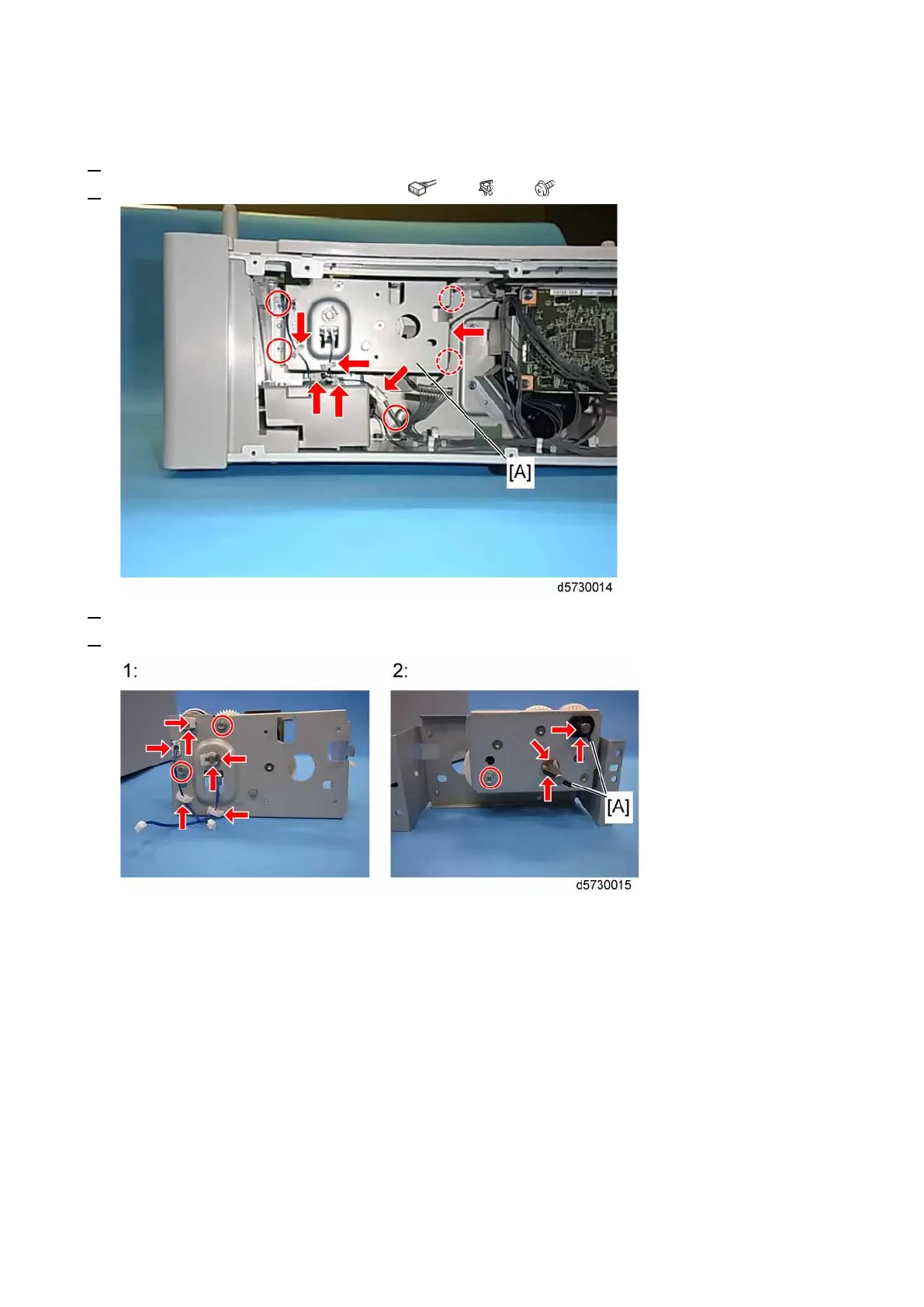

2. Remove the paper feed gear assembly [A]. ( × 2, × 4, × 4)
3. Remove all screws, clips, clamps, e-rings and bearings.
4. Pull out the wedges [A].
1: Front
2: Rear
