Ricoh MP C307

Drive
271

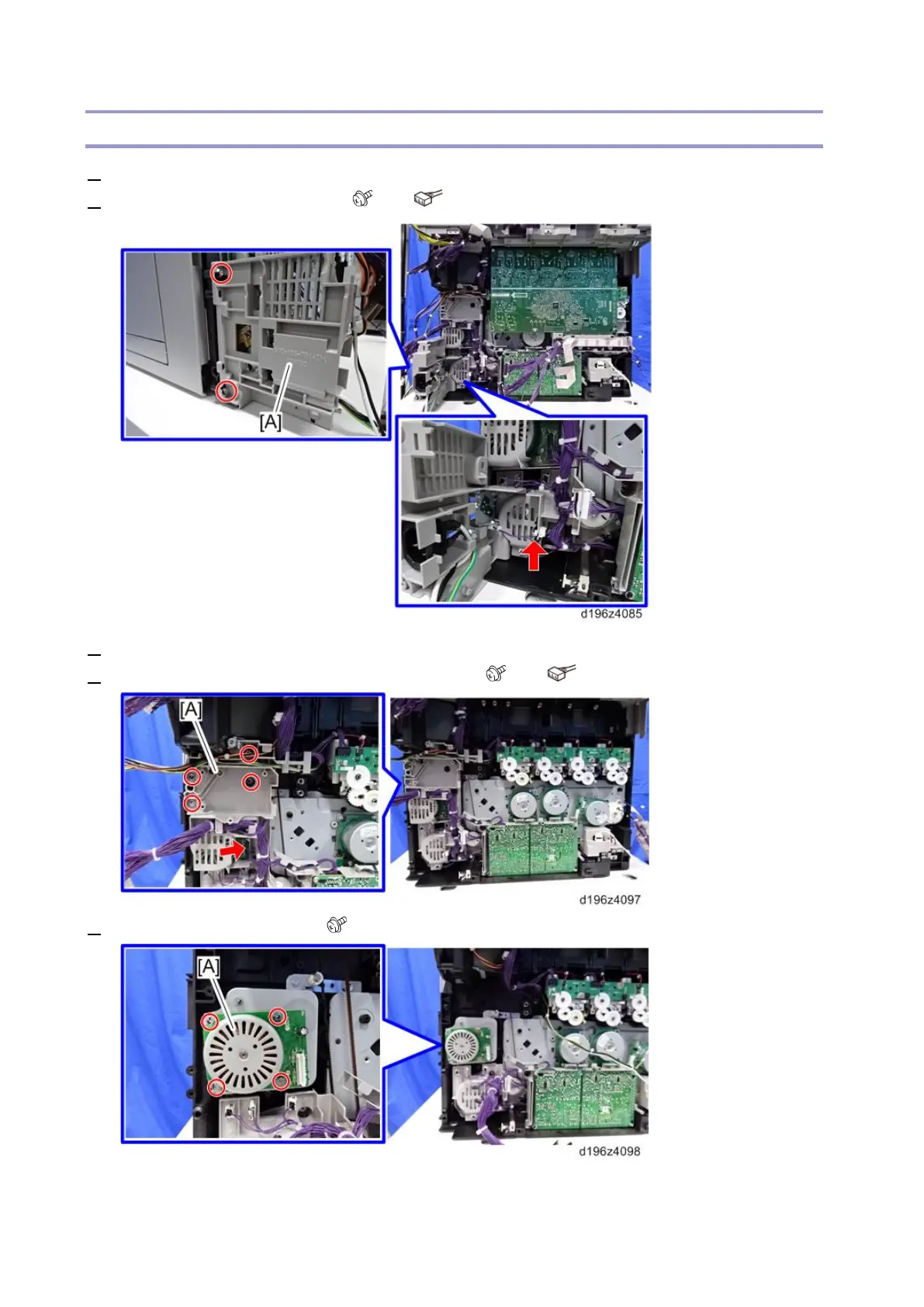

Fusing Motor
1. Remove the PSUs with the bracket. (PSU (AC), PSU (DC))
2. Remove the DC switch cover [A]. ( × 2, × 1)
3. Remove the power pack (Development). (Power Pack (Development))
4. Release the harness and remove the harness guide [A]. ( × 4, × 1)
5. Remove the fusing motor [A]. ( × 4)
