Ricoh MP C307

Electrical Components
334

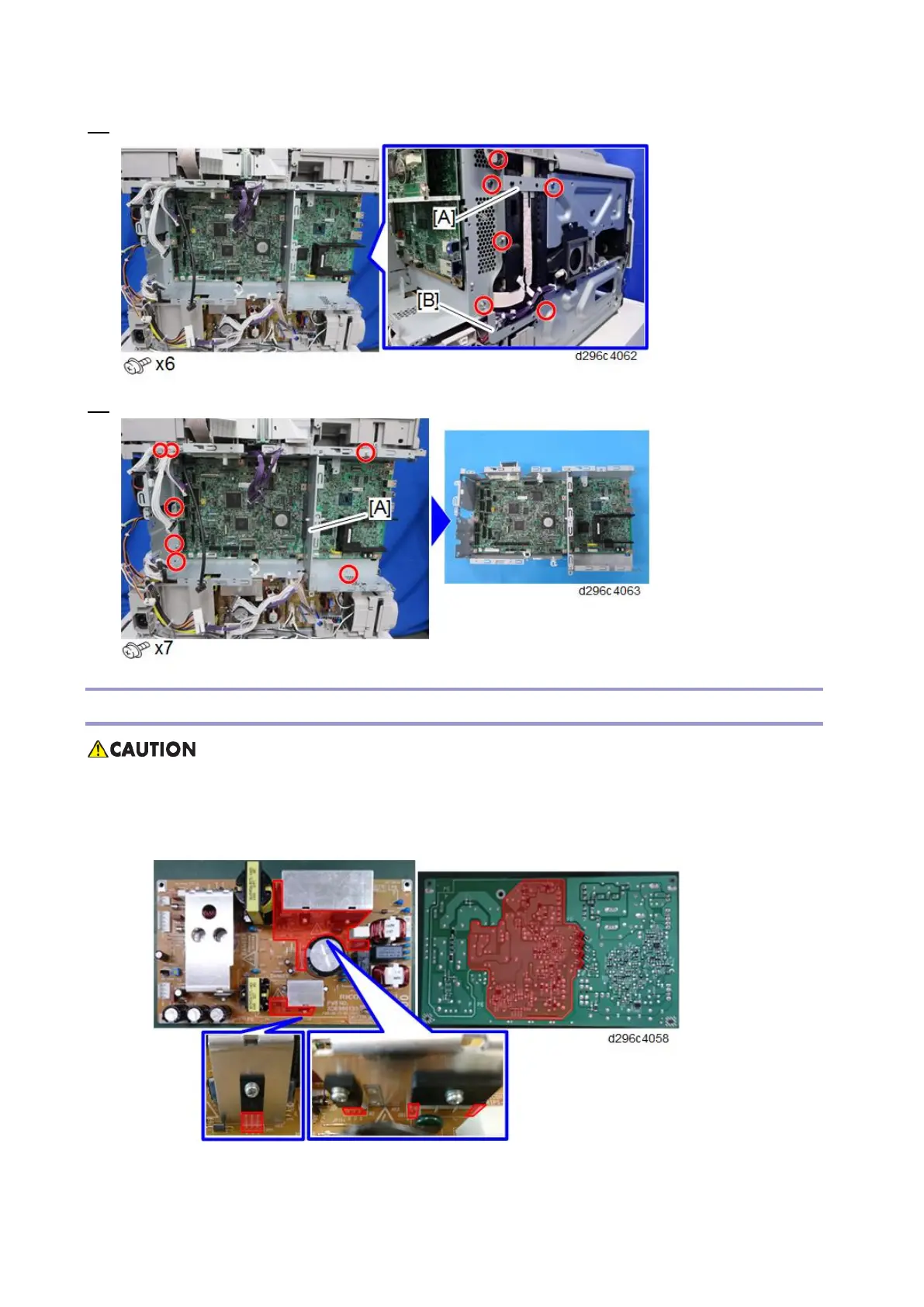

12. Remove the brackets ([A] and [B]), and two screws from the right side of the controller box.
13. Remove the controller box [A].
PSU (AC), PSU (DC)
• Do not touch the areas outlined in red in the following diagrams when replacing the PSU. Residual
charge on the board may cause electric shock.
• For 100V:
