Ricoh MP C307

1.Replacement and Adjustment
9
Vertical Transport Rollers
Vertical Transport Roller (Driven side)

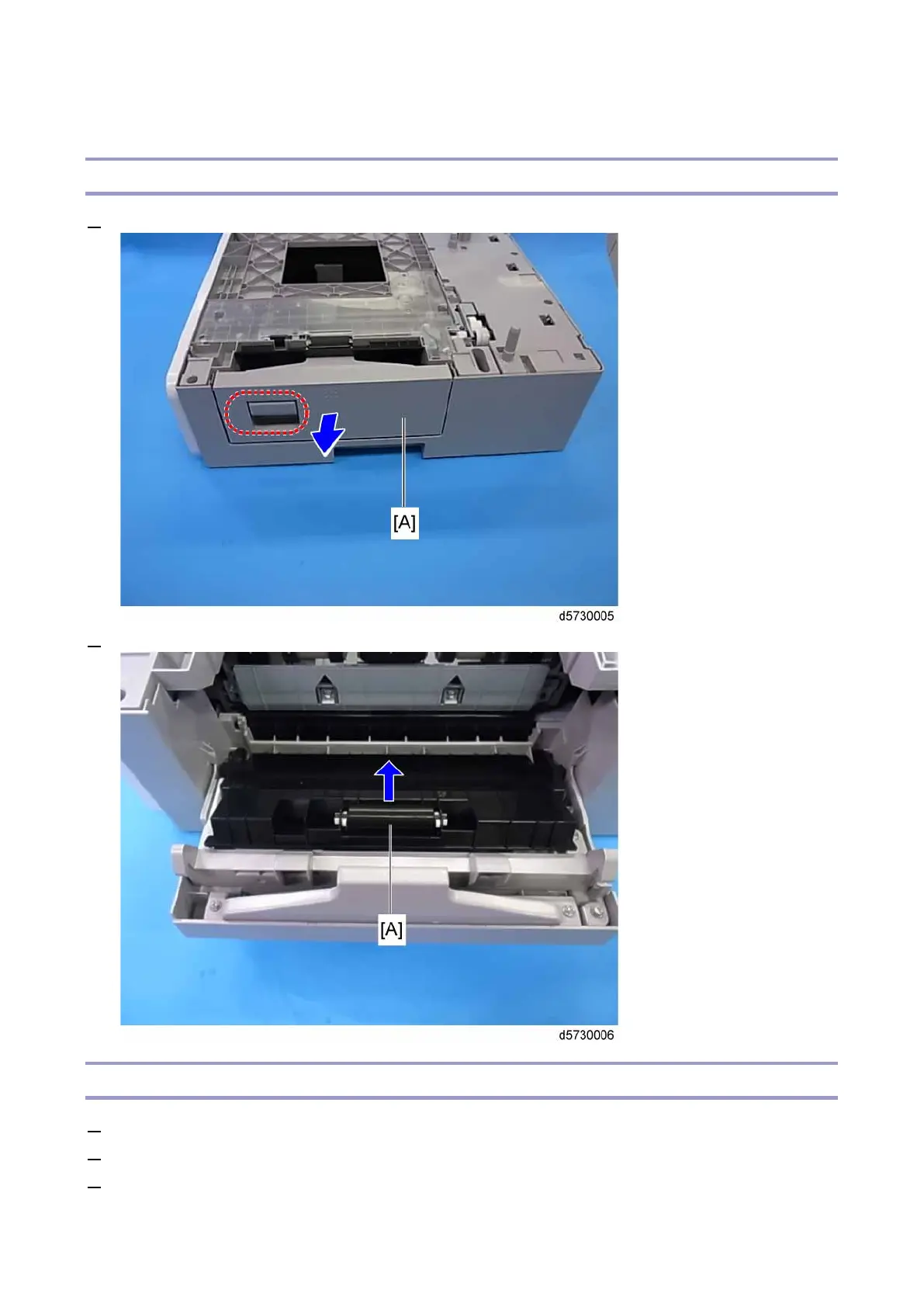

1. Open the vertical transport cover [A].
2. Remove the vertical transport roller [A]. (hooks × 2)
Vertical Transport Roller (Driving Side)
1. Remove the upper cover. (Upper Cover)
2. Open the vertical transport cover.
3. Remove the paper feed gear assembly. (Vertical Transport Clutch and Relay Clutch)
