Drive
273

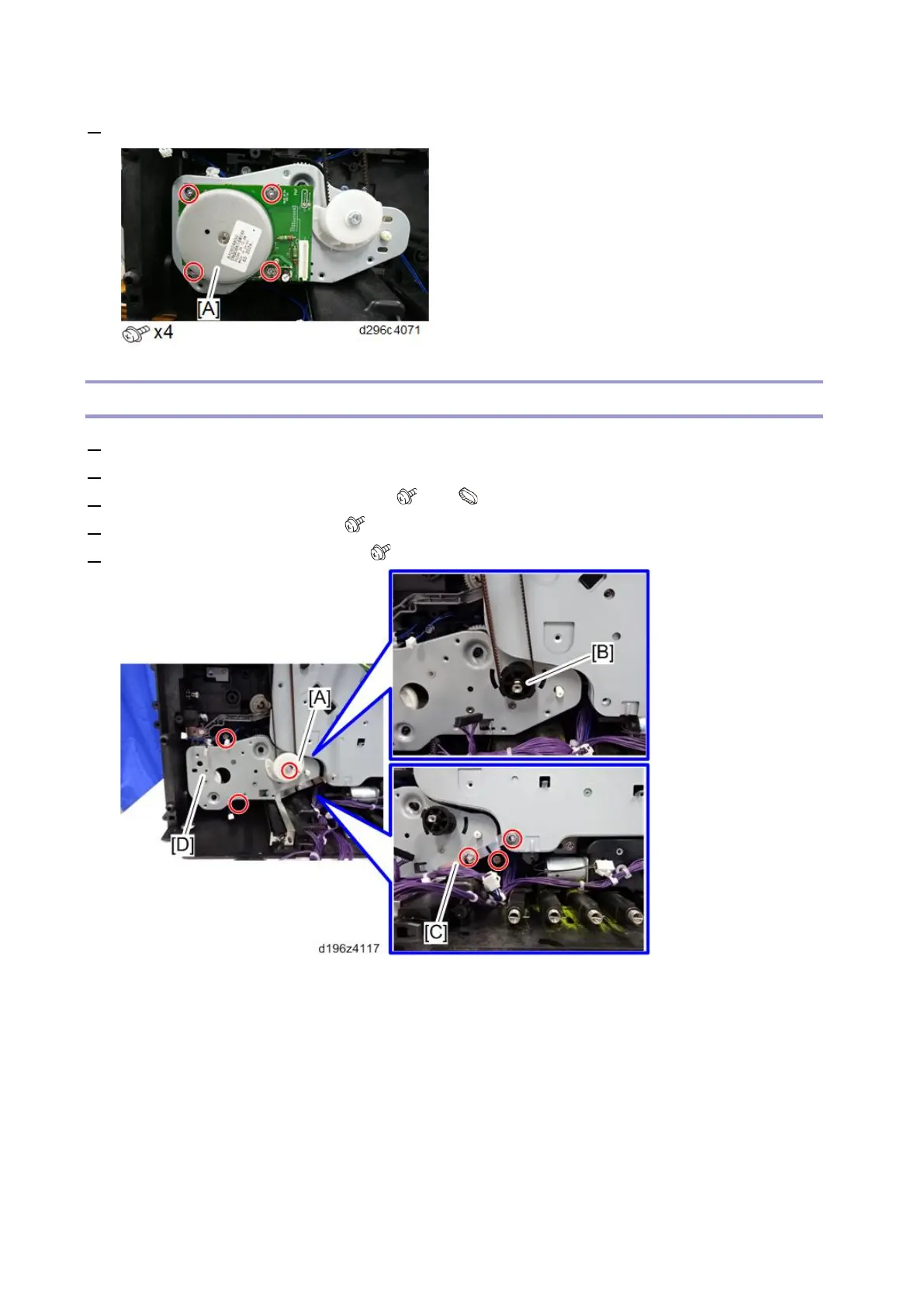

4. Remove the paper transport motor [A].
Duplex Clutch, Bypass Feed Clutch, Registration Clutch, Paper Feed Clutch
1. Remove the paper transport motor. (Paper Transport Motor)
2. Remove the power pack (Transfer) with the bracket. (Power Pack (Transfer))
3. Remove the gear cover [A] and gear [B]. ( × 1, × 1)
4. Remove the grounding plate [C]. ( × 2)
5. Remove the paper transport unit [D]. ( × 3)
To Next Page
