ADF
224
CIS Unit

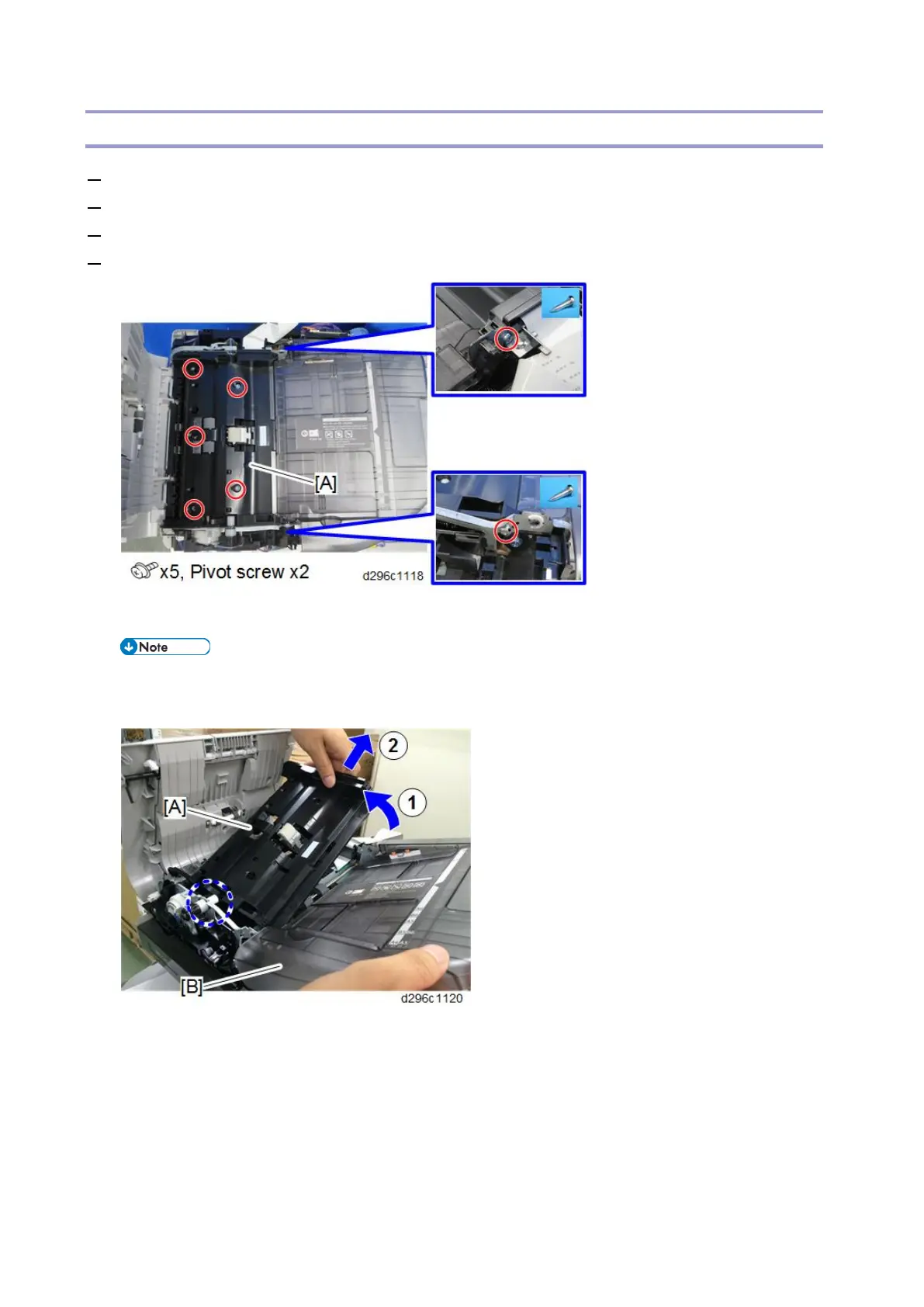

1. Remove the ADF rear cover. (ADF Rear Cover)
2. Remove the ADF front cover. (ADF Front Cover)
3. Remove the original feed unit. (Original Feed Unit)
4. Remove the ADF inner cover [A].
Lift the back of the ADF inner cover [A] while swinging up the original tray [B], and then slide the ADF
inner cover toward the back of the ADF unit.
