ADF
213

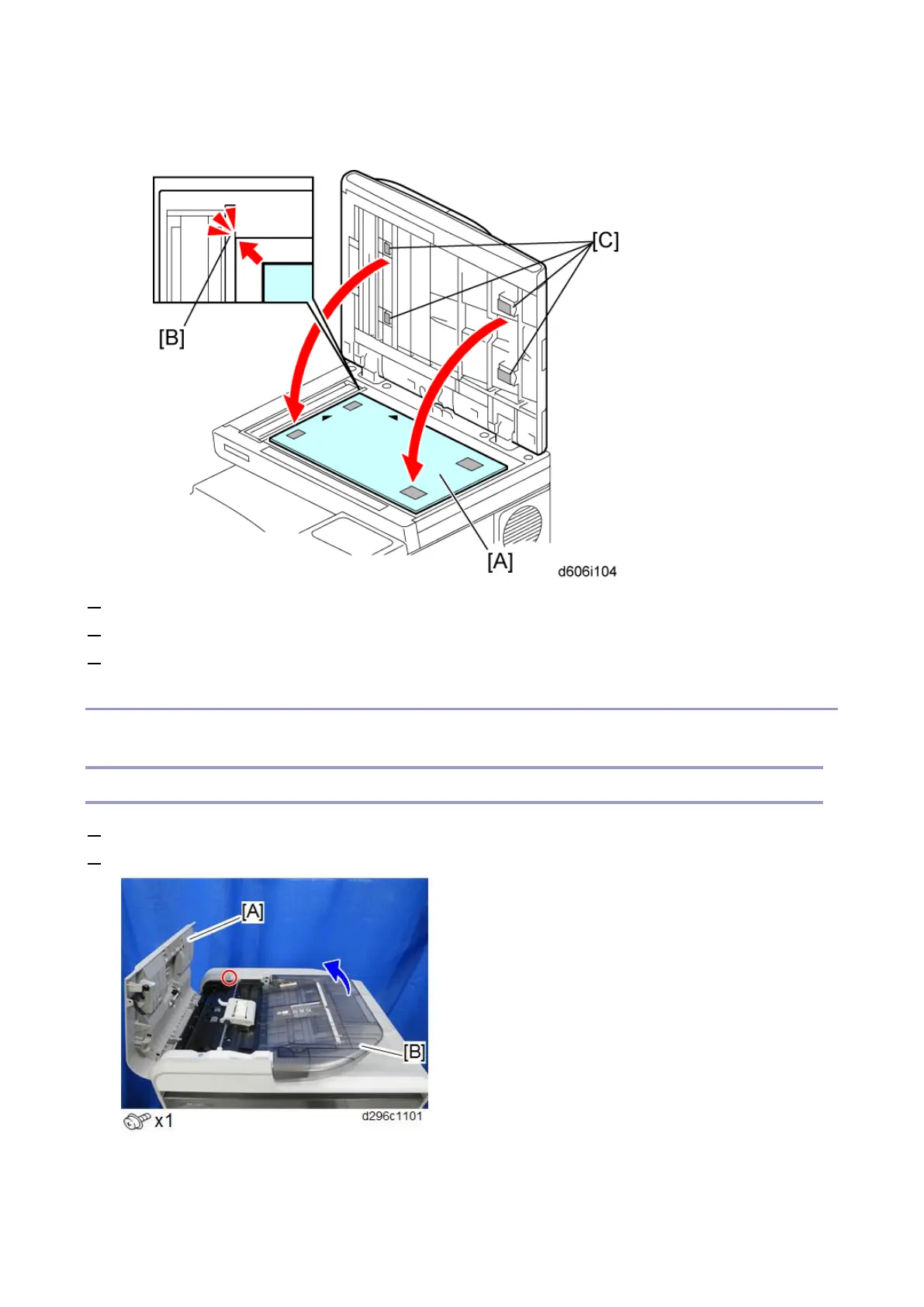

• Align the platen sheet with Velcro tape [C], with the rear left corner [B] on the exposure glass as a
reference.
3.
Close the ADF.
4. Reopen the ADF.
5. Press the surface of the platen sheet gently to fix it on the ADF firmly.
Adjustment after ADF Unit Replacement
See "Adjustment after CIS Unit Replacement".
ADF Rear Cover
1. Open the ADF top cover [A] and remove the screw.
2. Lift the original tray [B].
To Next Page
