Ricoh MP C307 - Vertical Transport Cover Open;Close Switch

1.Replacement and Adjustment
18
Vertical Transport Cover Open/Close Switch
1. Open the right door.
2. Remove the upper cover. (Upper Cover)

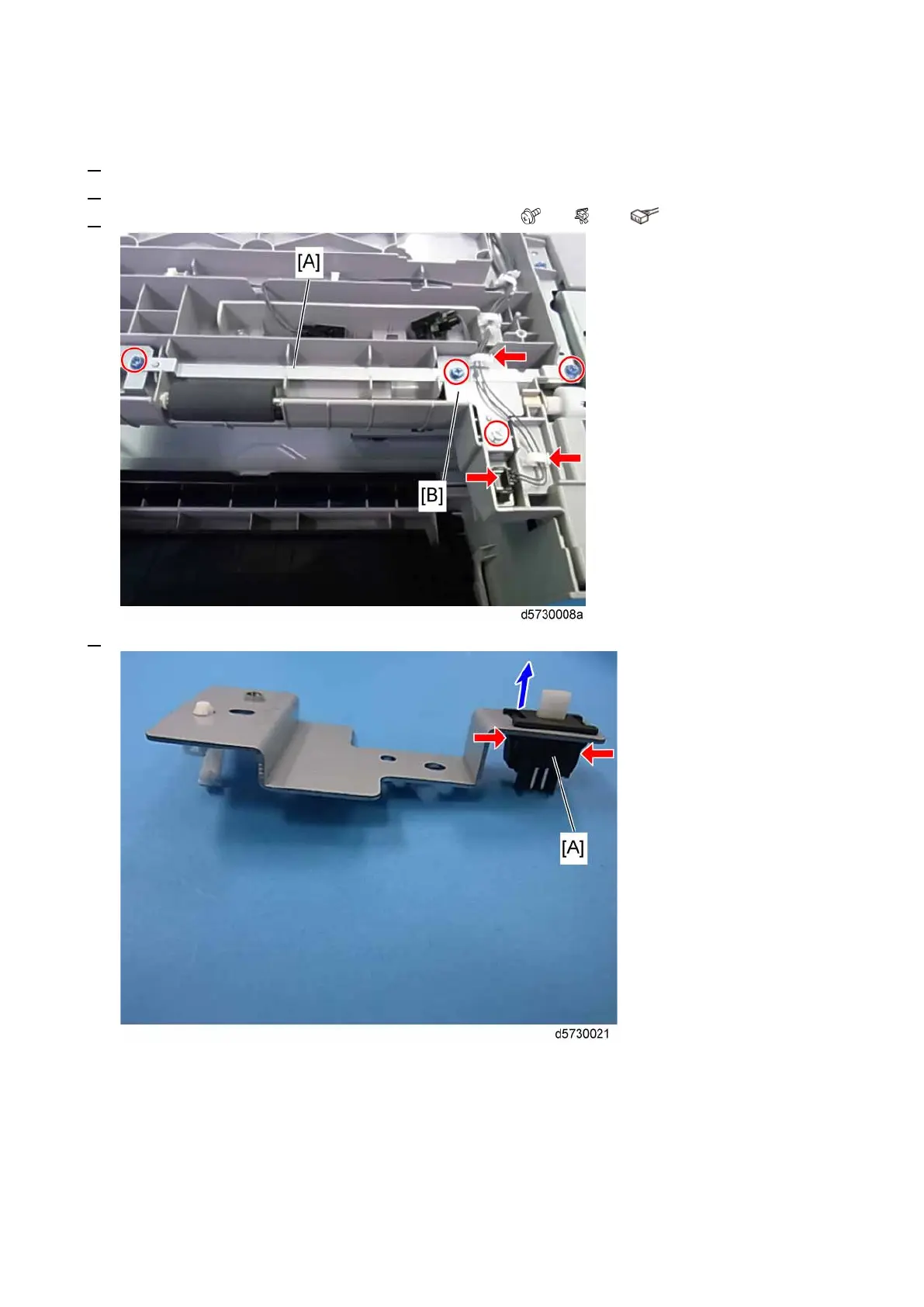

3. Remove the grounding plate [A] and the sensor bracket [B]. ( × 4, × 2, × 1)
4. Remove the vertical transport cover open/close switch [A]. (Hooks × 2)
