3.SP Mode Tables
372

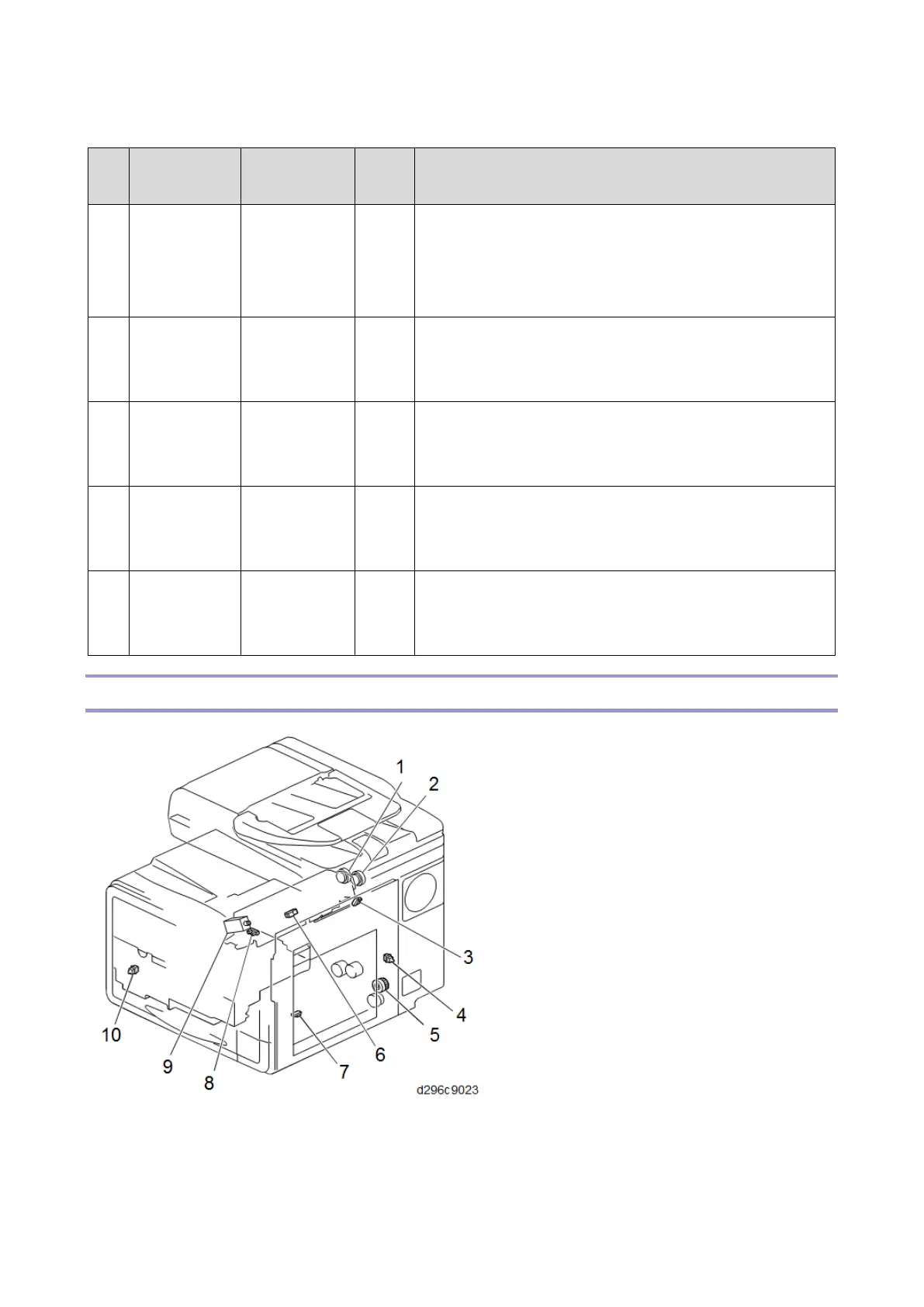

Output Check
No. Part Name SP Name SP
No.
Remark
1 Tray lift
motor
Tray Lift
Motor
5-
804-
007
Do not execute this SP when the paper feed tray is set.
If keeps the tray lift motor switched ON, the bottom plate can
lift up overmuch because the tray lift sensor does not work.
This will cause the sensor to damage.
2 Paper feed
clutch
Paper Feed
Clutch
5-
804-
002
3 Registration
clutch
Registration
Clutch
5-
804-
001
4 Bypass feed
clutch
Bypass Feed
Clutch
5-
804-
004
5 Bypass lift
clutch
Bypass Lift
Clutch
5-
804-
005
Paper Exit/ Duplex, Waste Toner Bottle
To Next Page
