Anti-condensation Heater (Optional Paper Feed Unit)
101
1: Rear
2: Front
3: Left

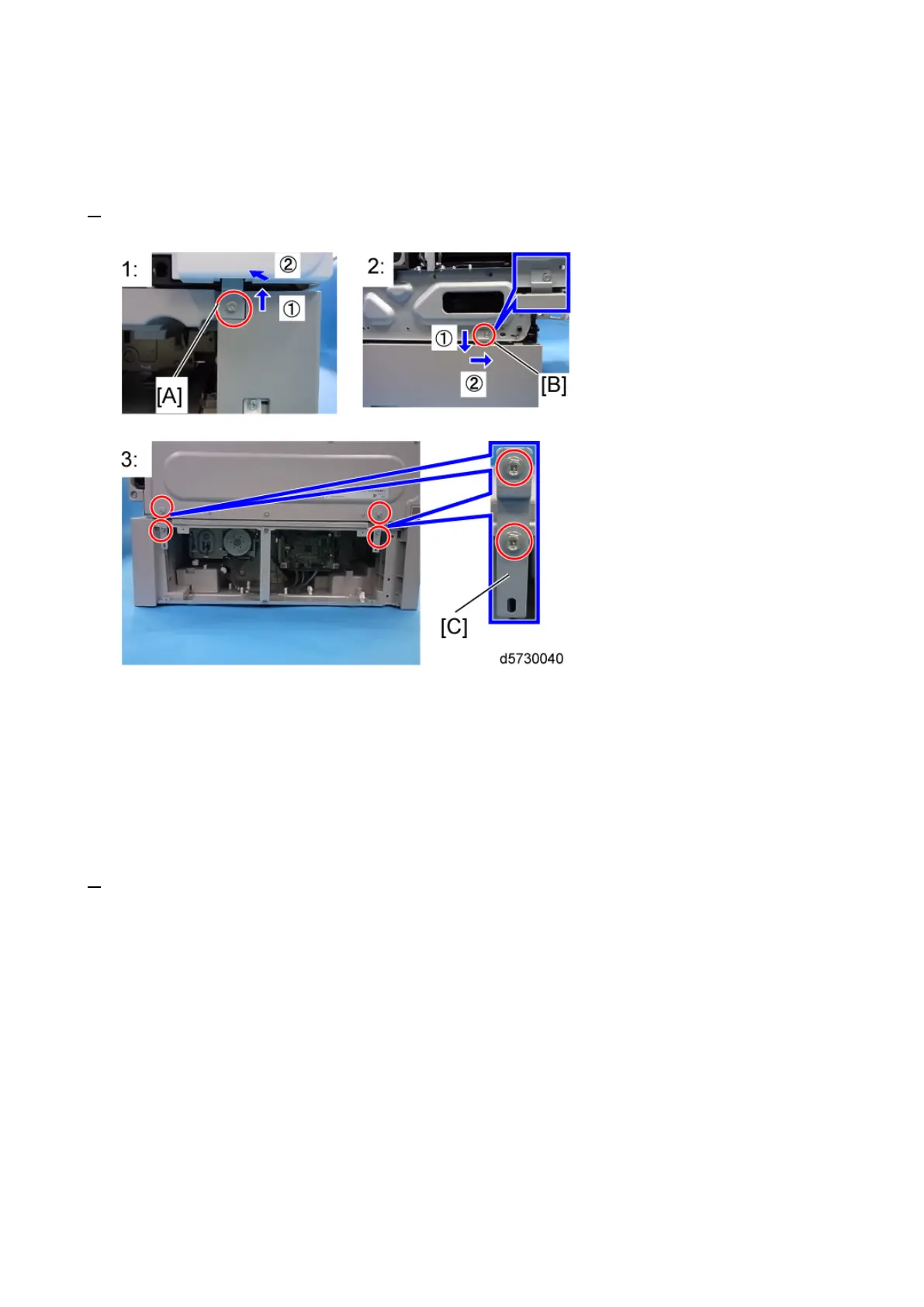

6. Join the mainframe with the optional paper feed unit with four joint brackets [A] (front right), [B] (front
left) and [C] (rear) (×2). These brackets are secured with the following screws.
1: Front right
2: Left
3: Rear
[A]: M3×12 (included in this kit)
[B]: M3×6 (included in this kit)
[C] (Upper): Existing screws (×2)
[C] (Lower): M3×6 (included in this kit)
7. Reassemble the mainframe and the paper feed unit.
