Ricoh MP C307 - Page 1101

2.Replacement and Adjustment
19

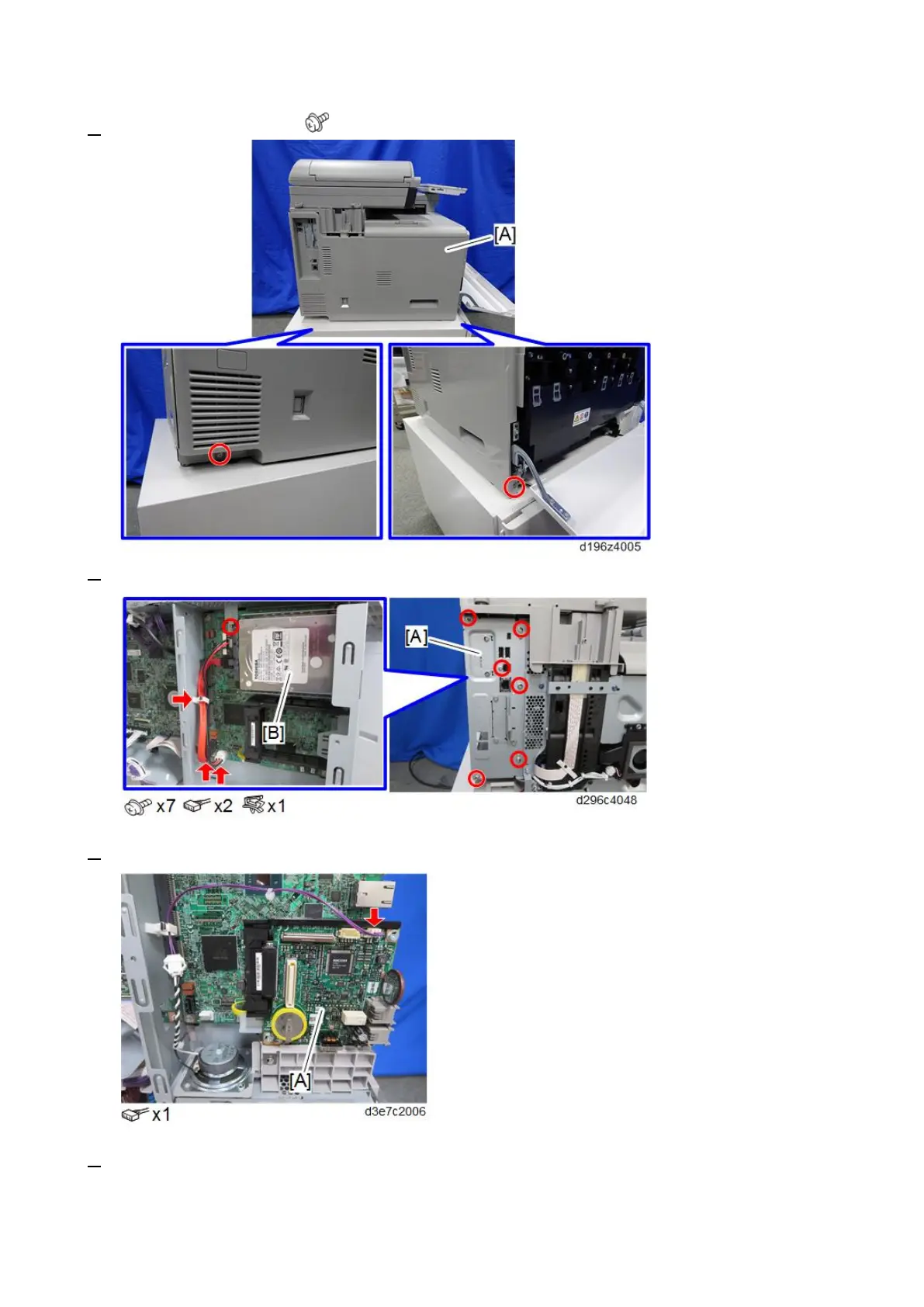

3. Remove the left cover [A]. ( x 2)
4. Remove the controller cover [A] with the HDD [B].
5. Remove the FCU [A].
6. Switch the battery jumper switch [A] of the new FCU to the "ON" position before installing.
